Made the pilgrimage to Indiana again.

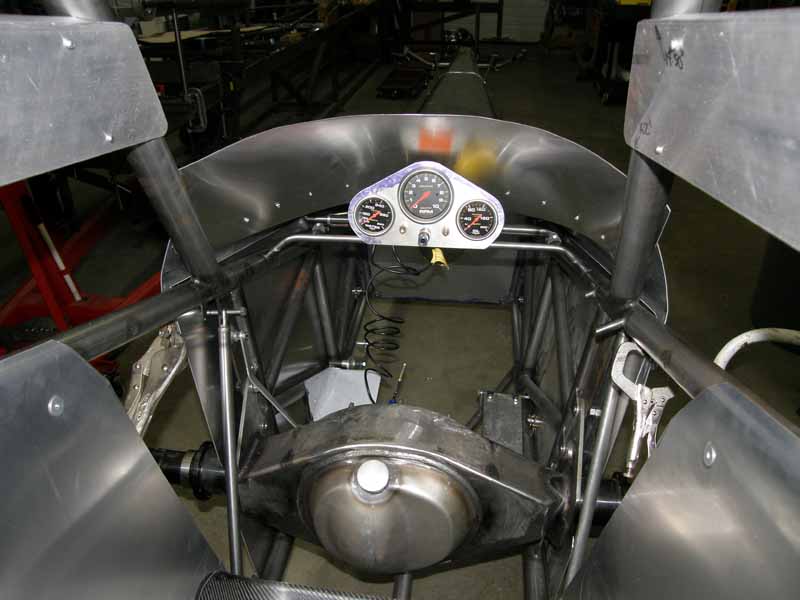

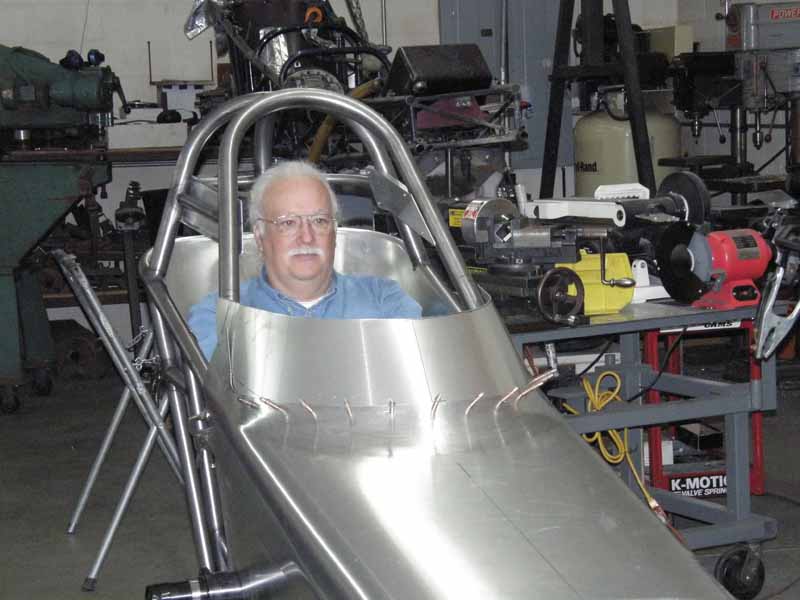

Lots of progress to report. Body is really coming together. Engine and transmission may be fitted next week. I can get in and out of the vehicle. Cockpit is very comfortable. The gauges are to low and the dash will have to be remade (you can only see the top half of the gauges when sitting in the cockpit). Shift light and low oil pressure warning light will be mounted out on the engine. Switch pannel will be below the gauges. The pictures below are a mixture of ones that I have taken and ones that Roo Man has taken.

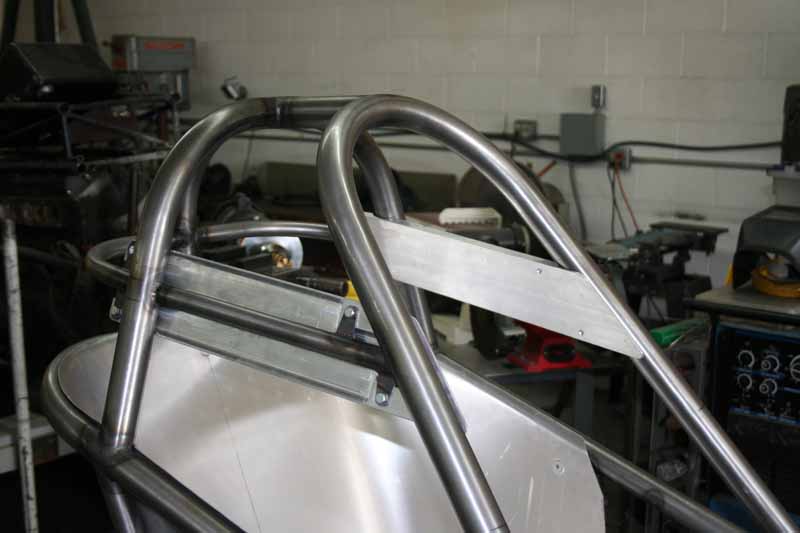

Helmet pad bars have been fabricated
IMG_5672_small  IMG_5672_small
IMG_5674_small

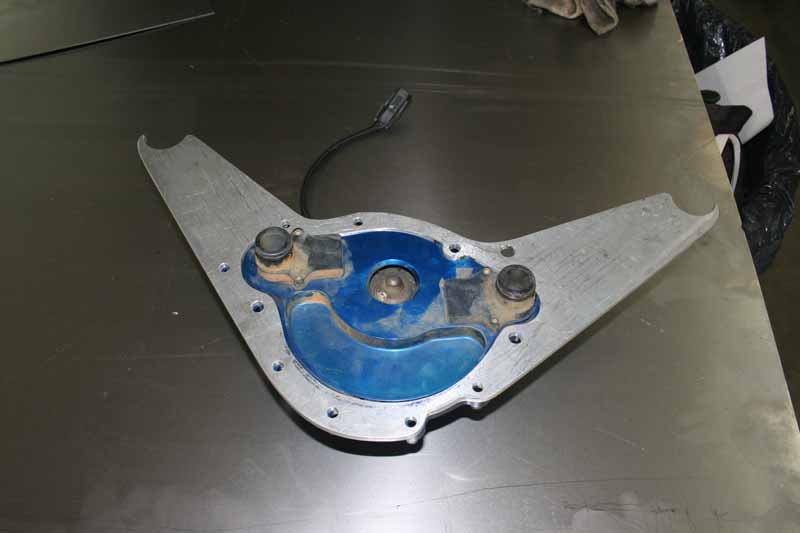

The front engine motor plate has been made up. It will bolt to between the timing cover and water pump.

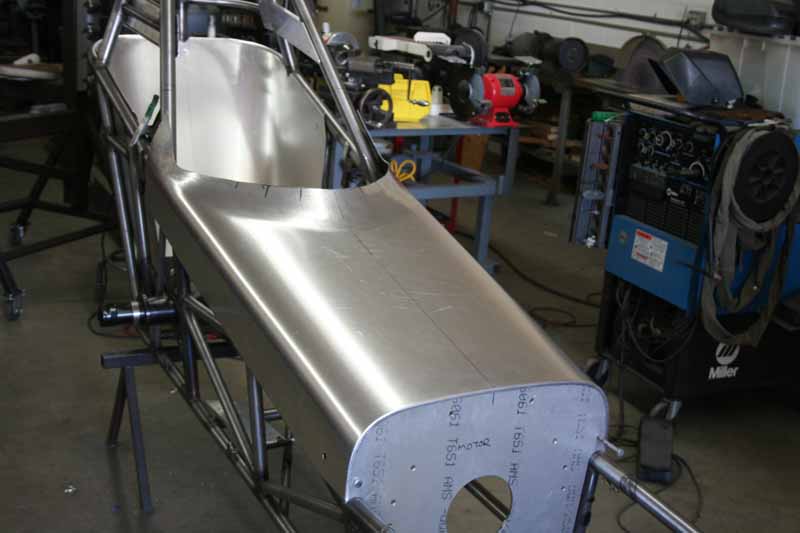

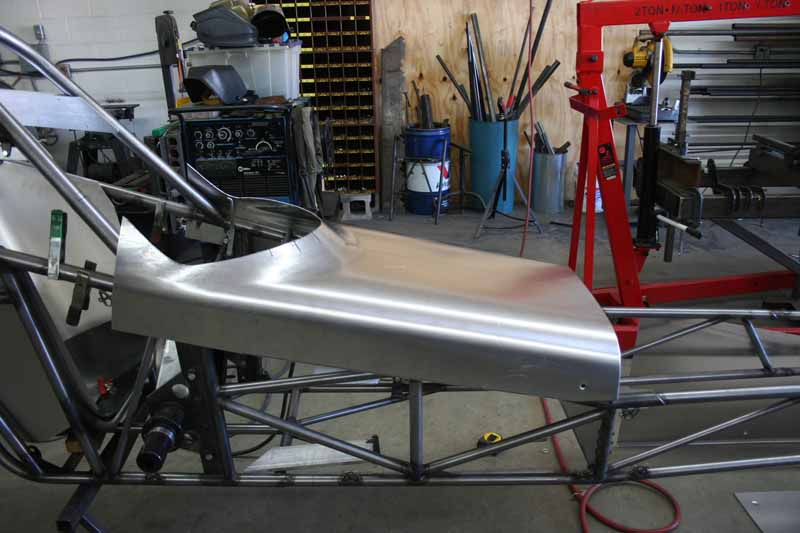

IMG_5677_small Body work is well on the way. We will start with the area behind the rear engine plate
 IMG_5678_small  P5210005_small
P5210020_small  P5210030_small
P5210026_small  P5210021_small

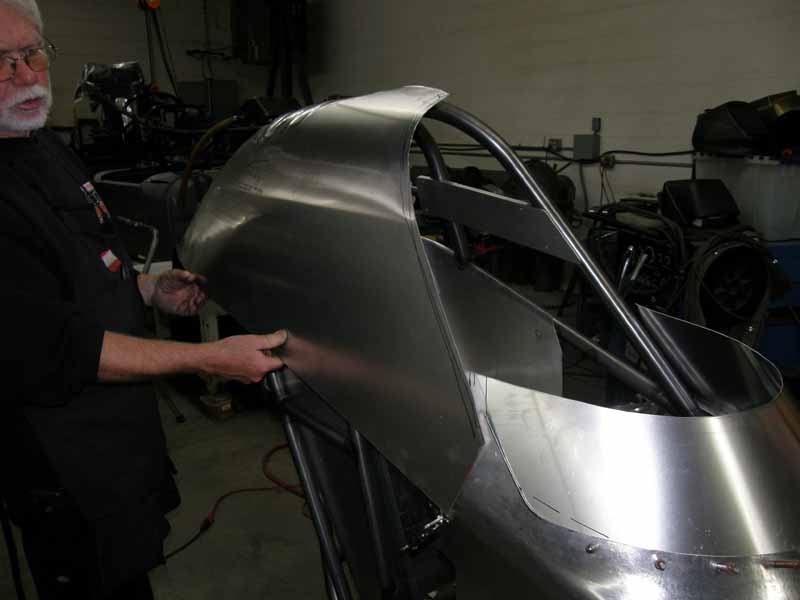

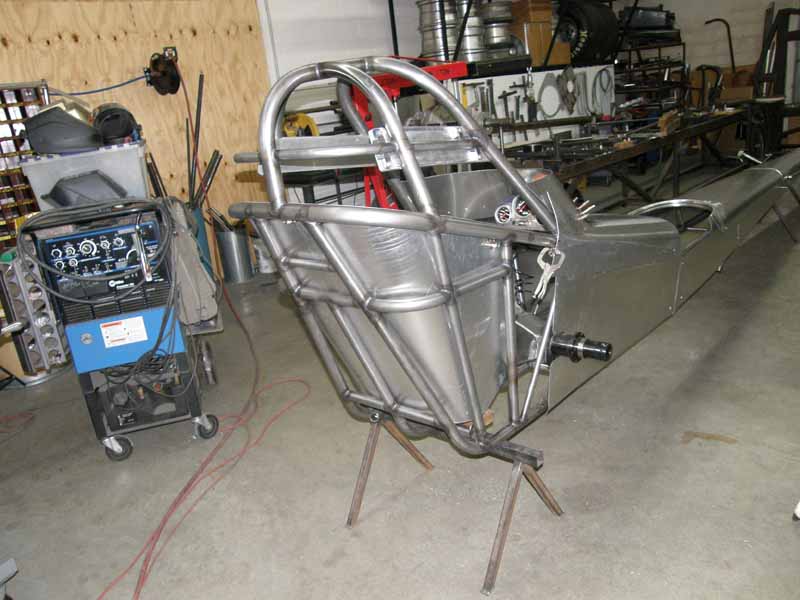

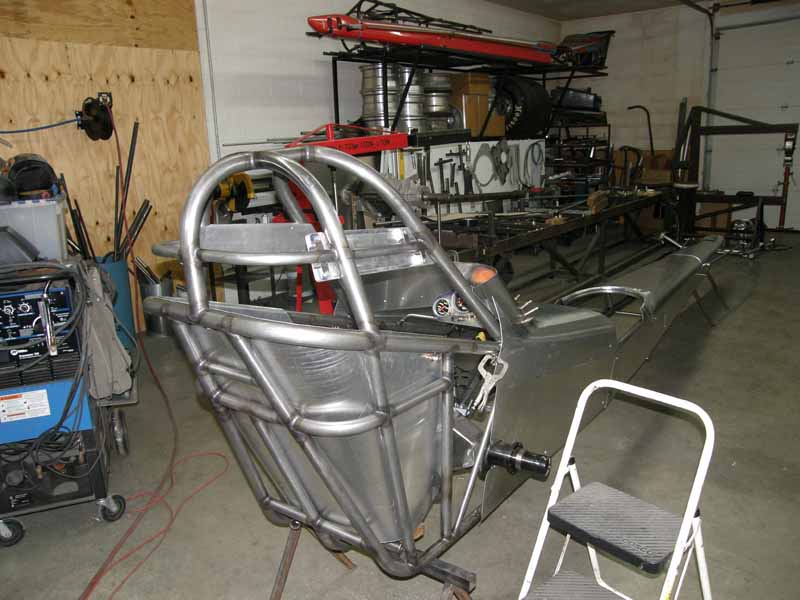

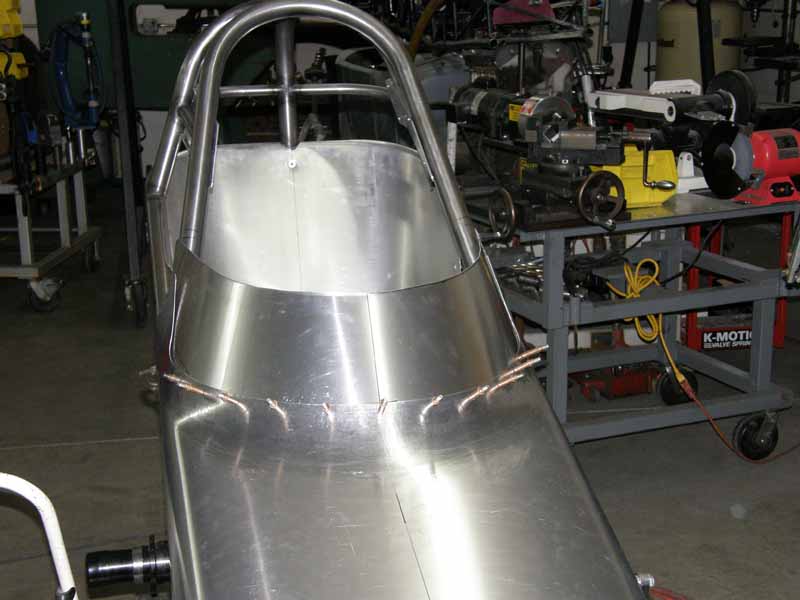

The body work to cover the roll cage has just started.
P5210003_small  P5210031_small

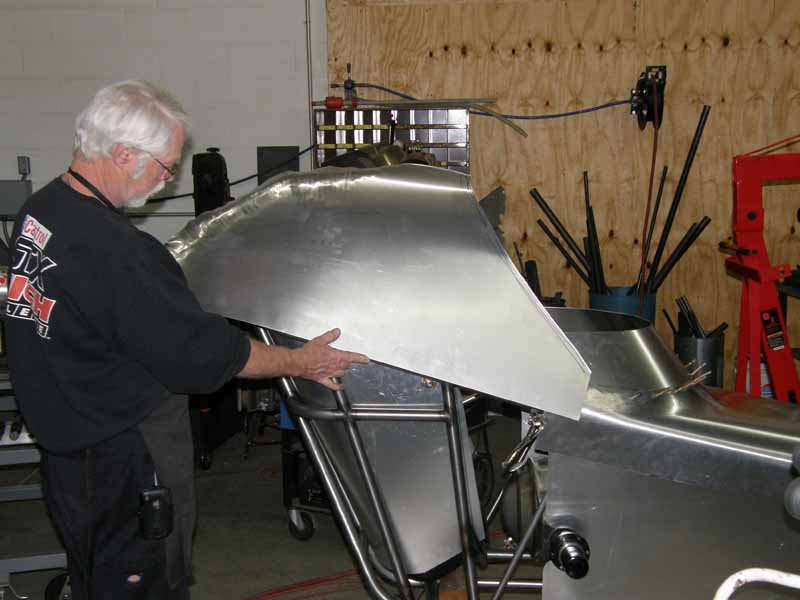

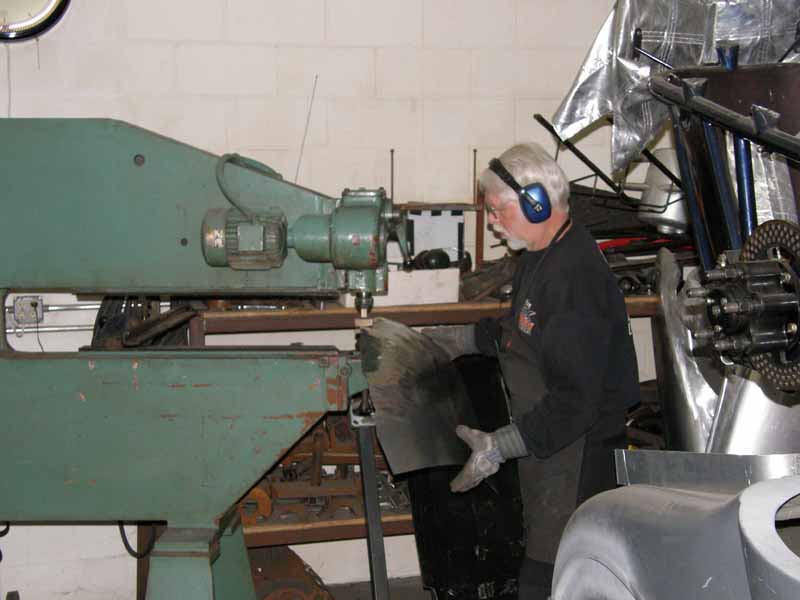

P5210033_small   A lot of sheet aluminum has to be bent and shaped here as this will also be a chute pack body.
Next up is the engine area.

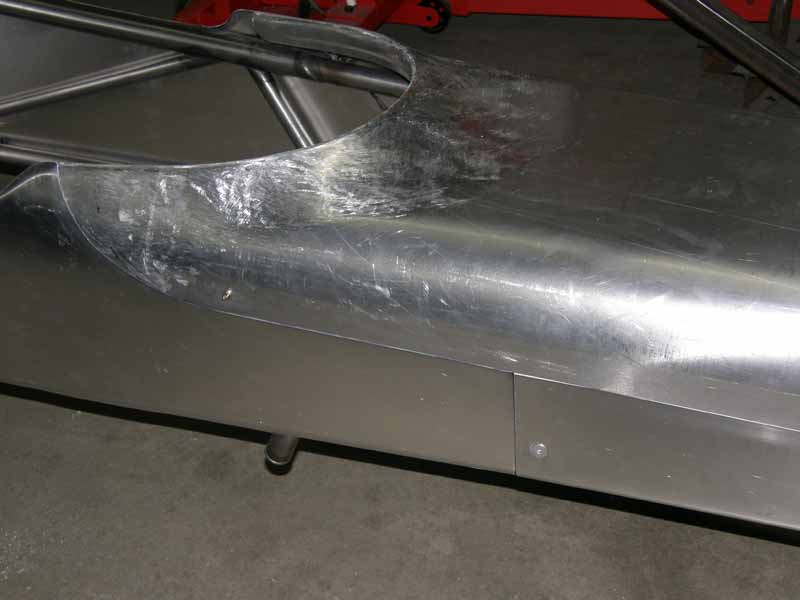

P5210019_small  P5210018_small
 P5210024_small

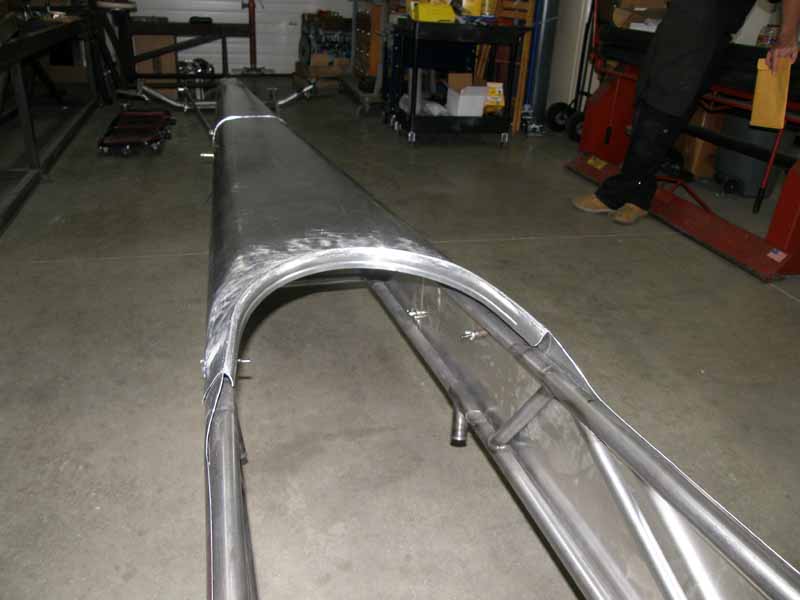

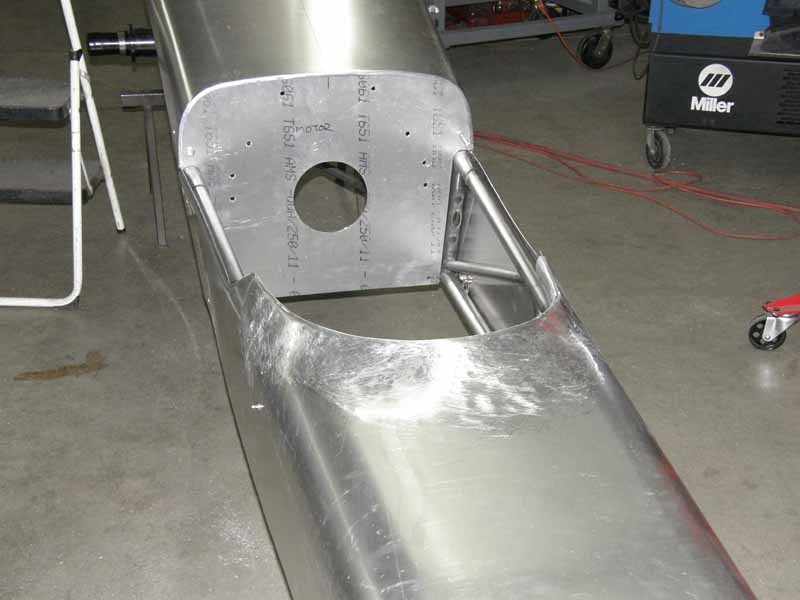

The front of the engine opening is big enough to accommodate the future blower drive. Note the leading edge is rolled over and a bead has been run around the inside. Nothing but class.
The front.

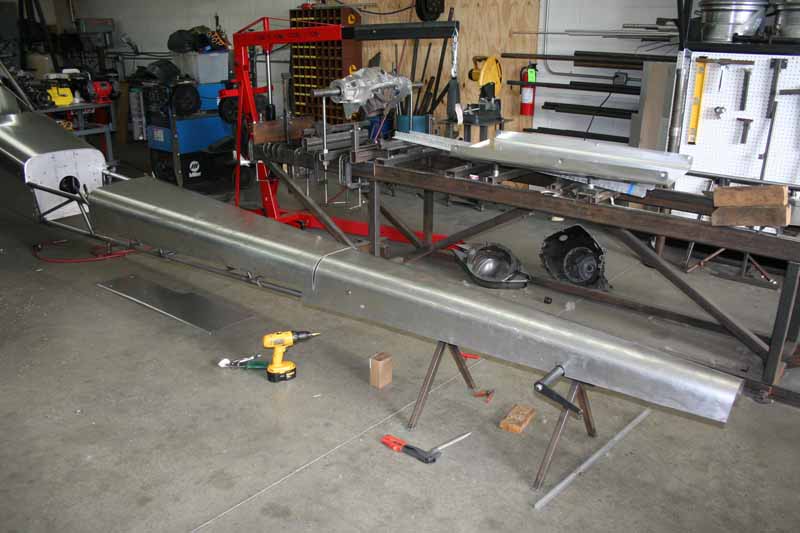

IMG_5684_small

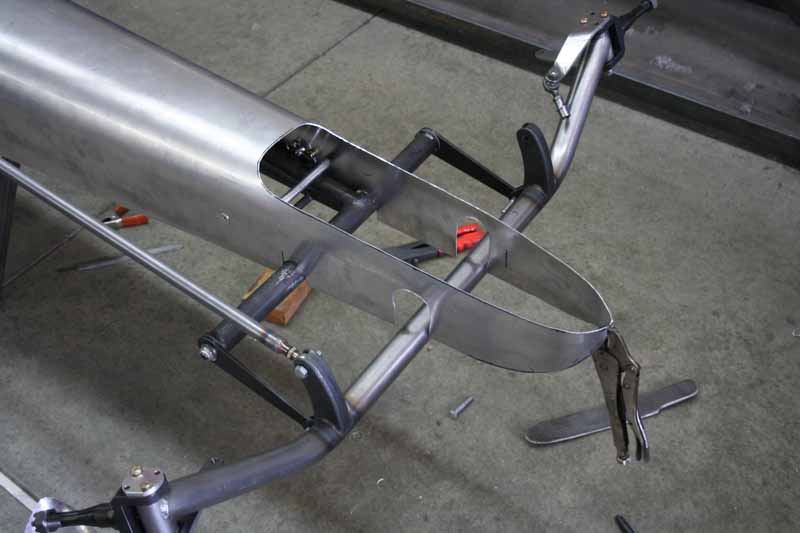

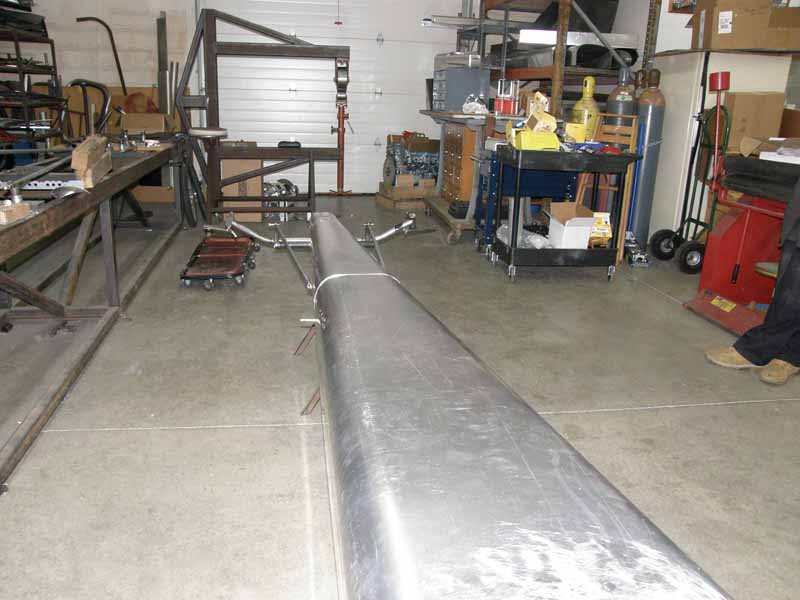

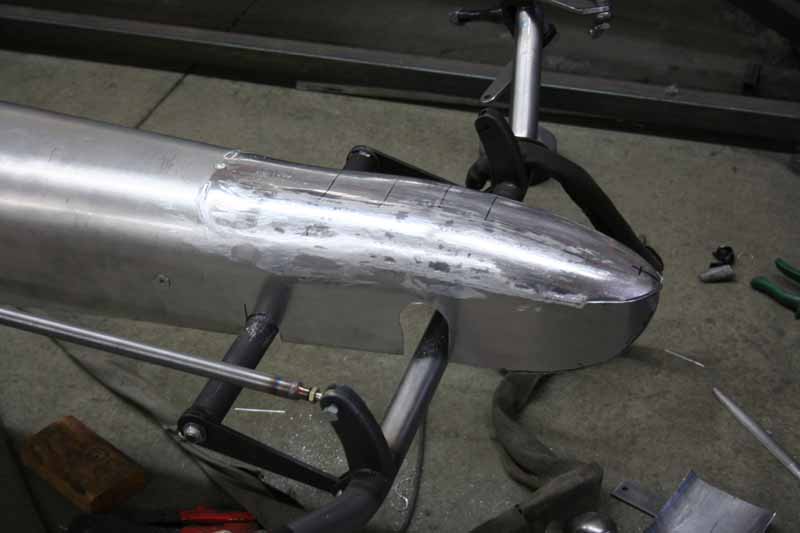

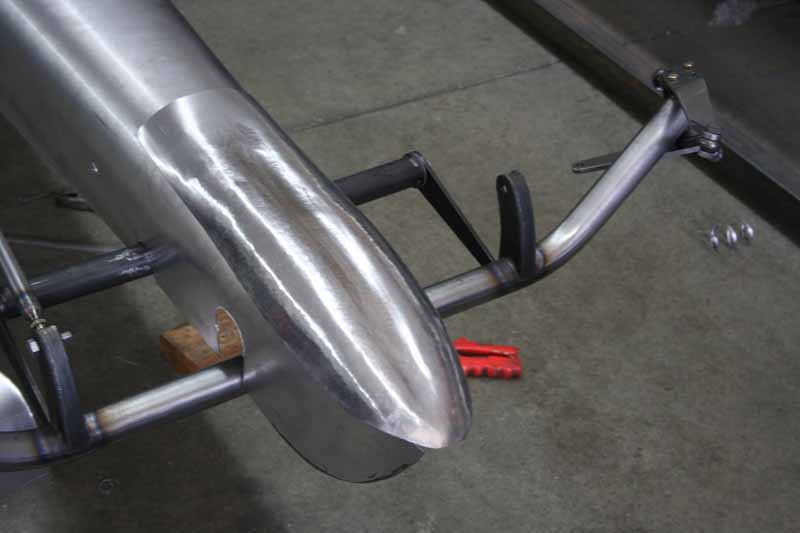

The forming of the nose.
IMG_5692_small  IMG_5688_small

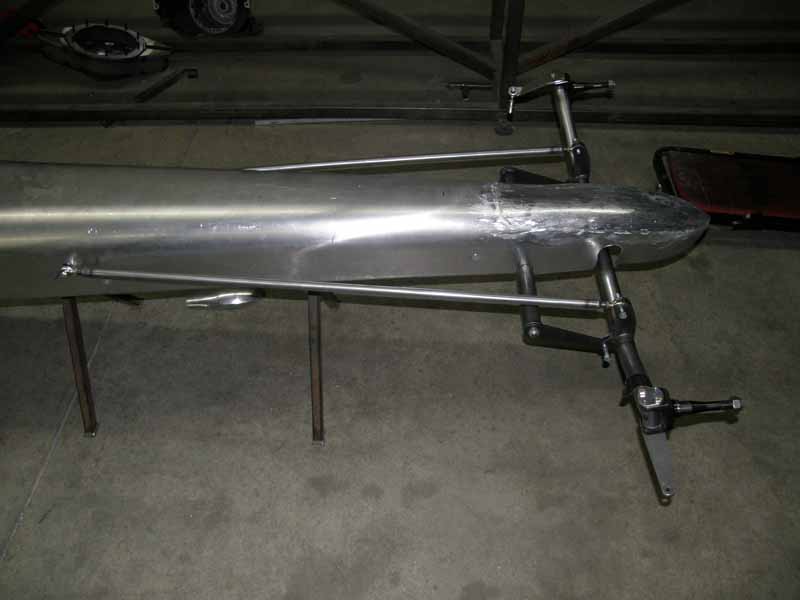

IMG_5697_small  P5210011_small

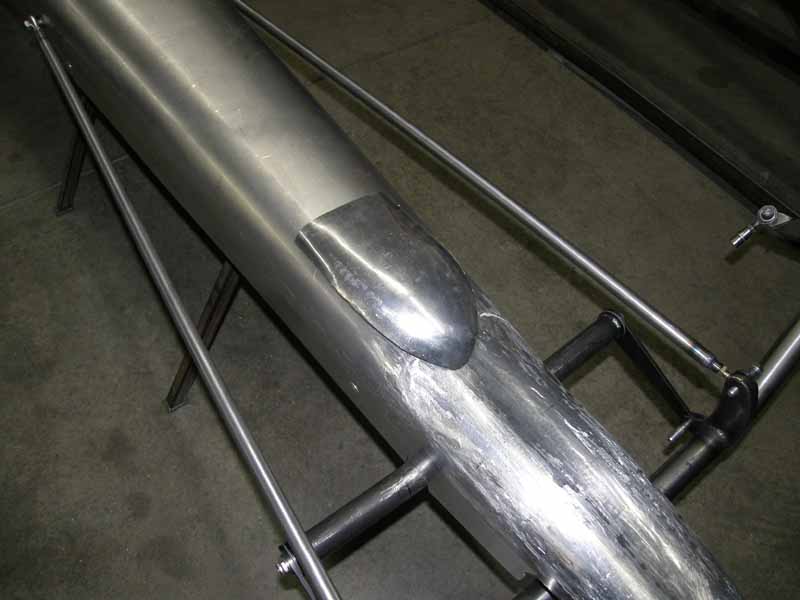

P5210012_small

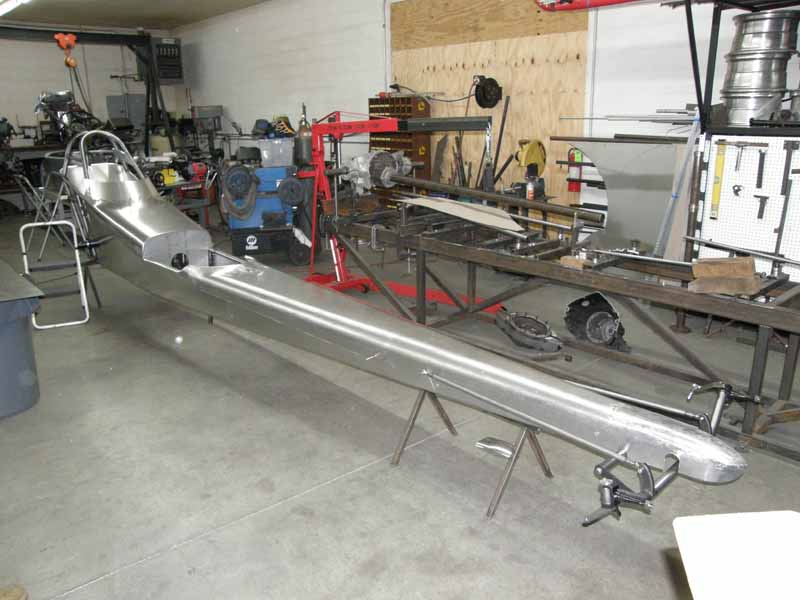

Bottom of nose is is sitting on top of the body.
P5210010_small  P5210014_small
P5210017_small

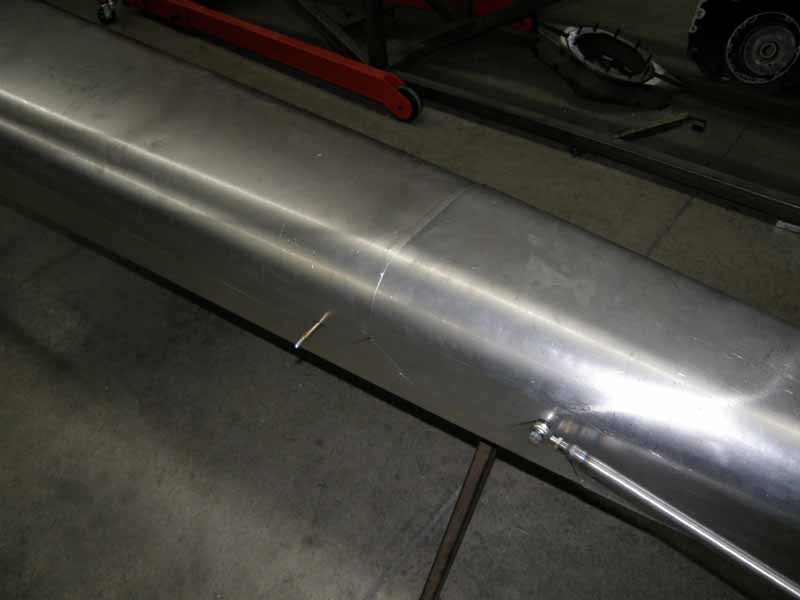

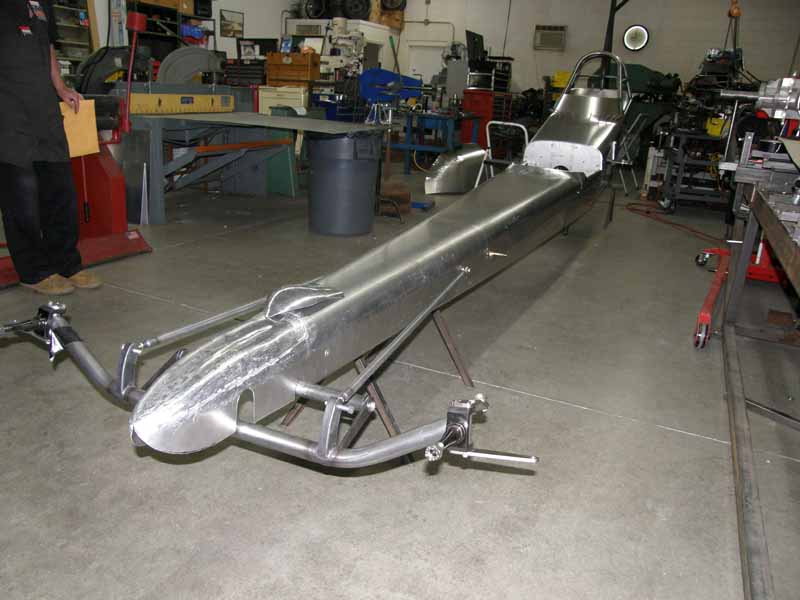

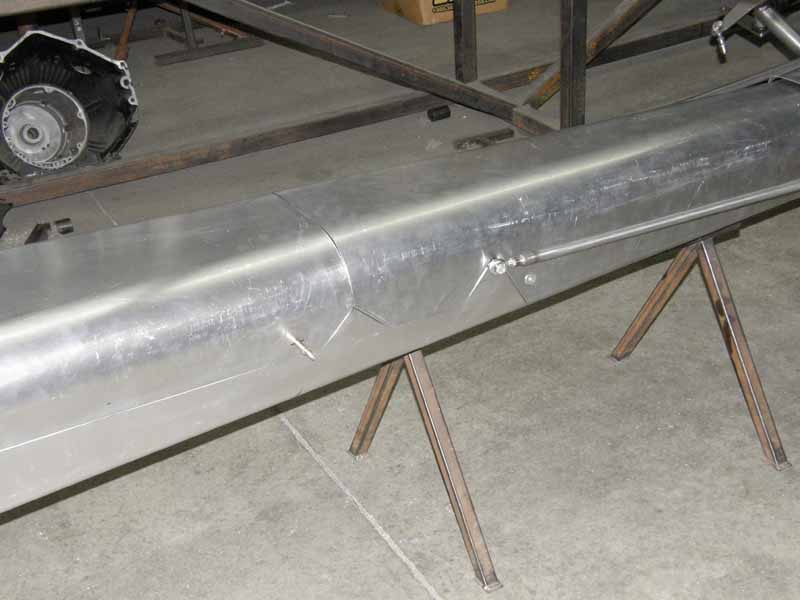

Note tight straight over lapped stepped seams.
P5210022_small  P5210023_small
P5210025_small

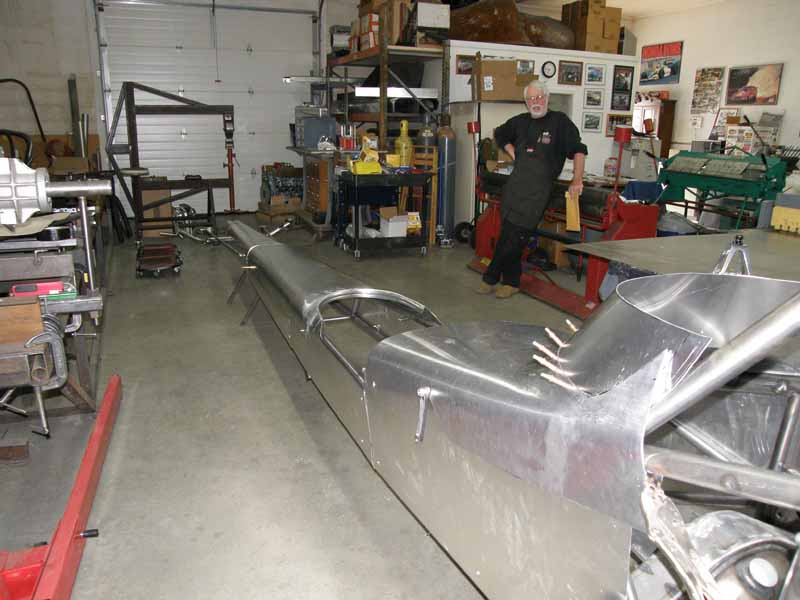

Next trip out will be in about two weeks. Note the Master taking a break.
