2010 Front Engine Dragster Week 2011 01 16

REMEMBER TO CLICK PICTURES FOR MORE DETAIL / LARGER PICTURE

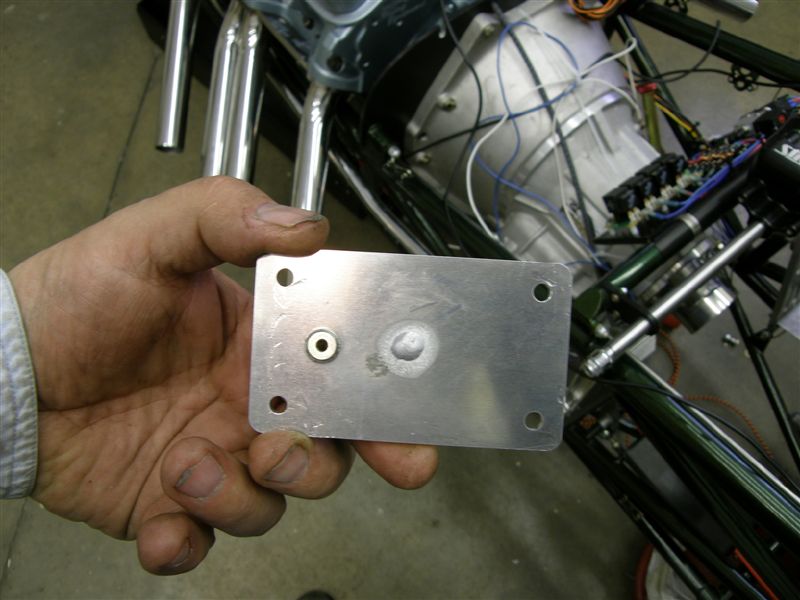

Tom has moved on to finishing the install of the remote oil filter bracket. He has welded it up and powder coated it. All that needs to be done now is to bolt it in.

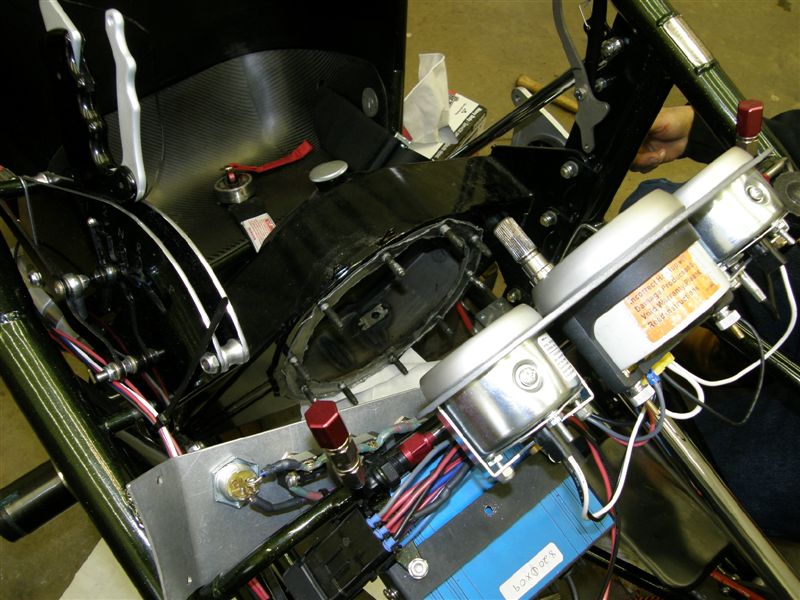

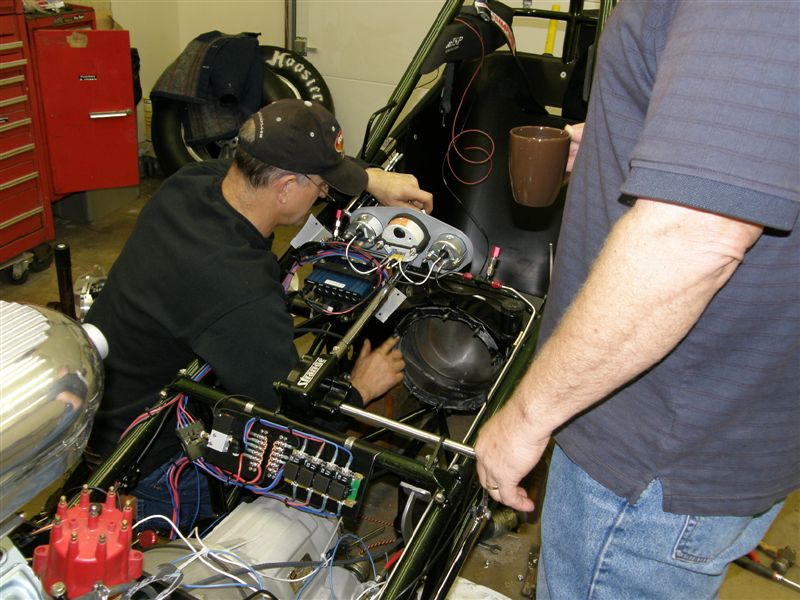

Ok, I have come to the conclusion that the dragster will look very nice at the Indianapolis show on the 9th of February, but it may not be a runner. I believe there are just too many things that need to be completed.Progress was made at the OFFICIAL Car Nuts (I say this as there are a group of upstart Rochester Street Rod members in the sissy warm state of Florida that are tiring to latch onto the name).Lenny has taken on a number of tasks. He has become the computer operator and has been pressed into service as an order placer with both Jegs and Summit. He also started incasing the wiring harness in split harness covering. He also has gapped and replaced all the spark plugs.

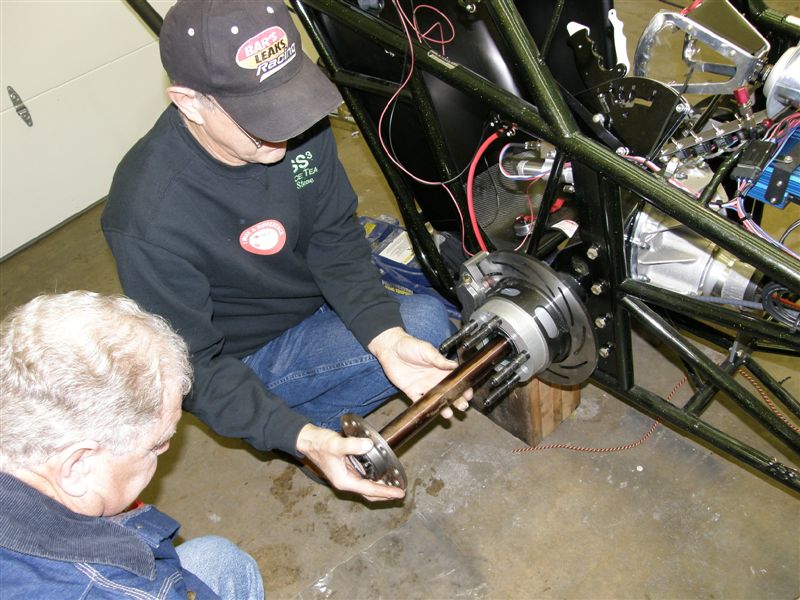

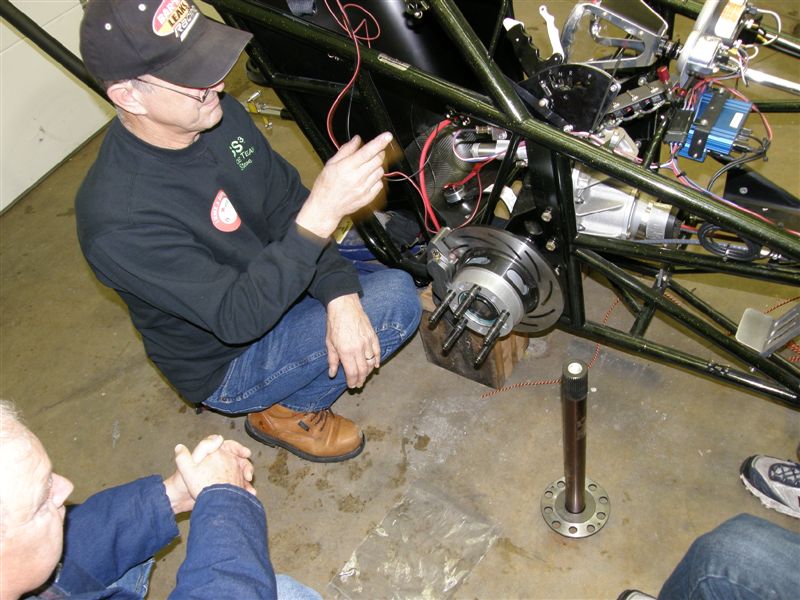

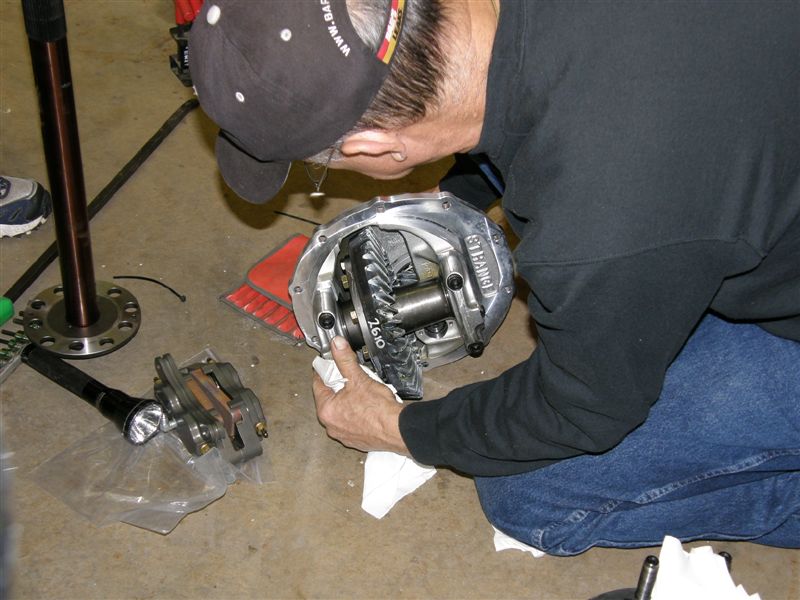

The differential was disassembled and inspected and then reassembled again. We found there was a fair amount of grime inside the housing and on the axles themselves. Gears are 3:70

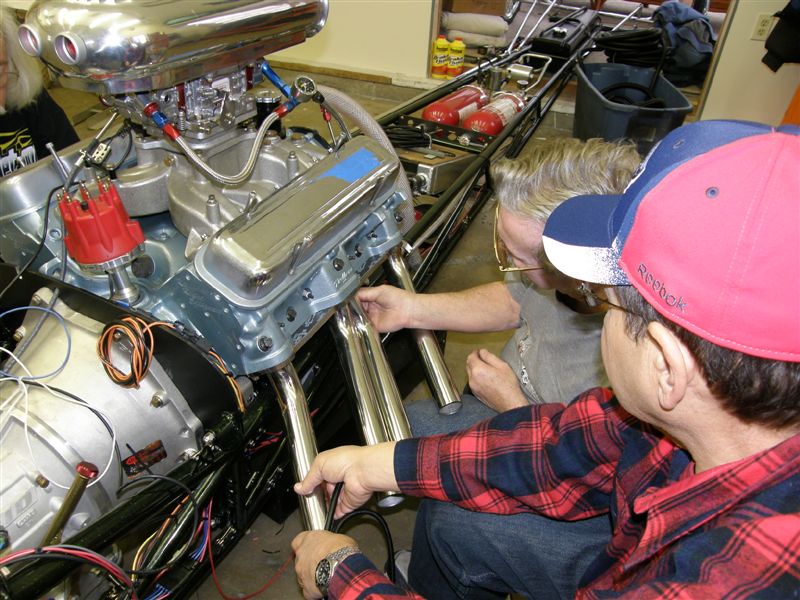

The headers have arrived. The holes in the header flange were flame cut and were a little irregular. Billy and Jack spent a fair amount of time filing out the holes so that all the bolts could be installed at once. As it was about ¾ of the bolts could be install, but the last one or two would not thread into the head. That has been remedied. It was also found that the header bolts I had on hand were not long enough and new ones have been ordered.

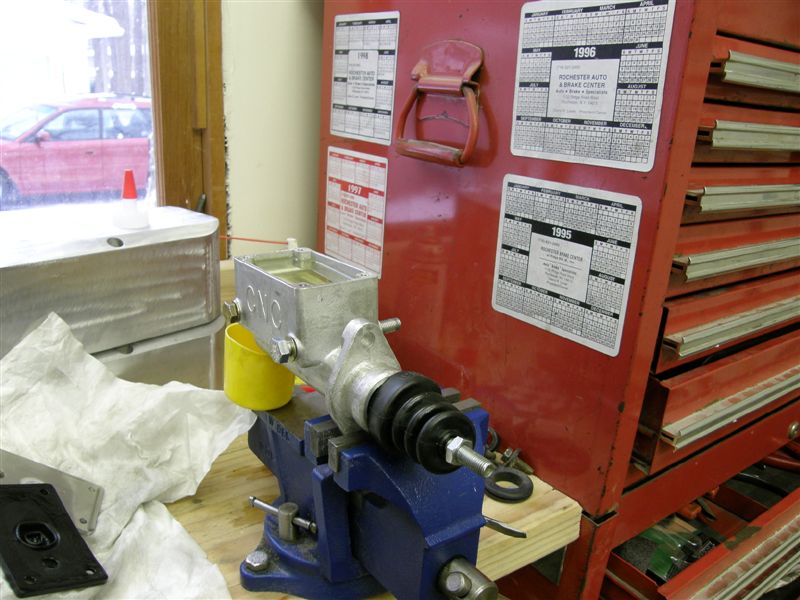

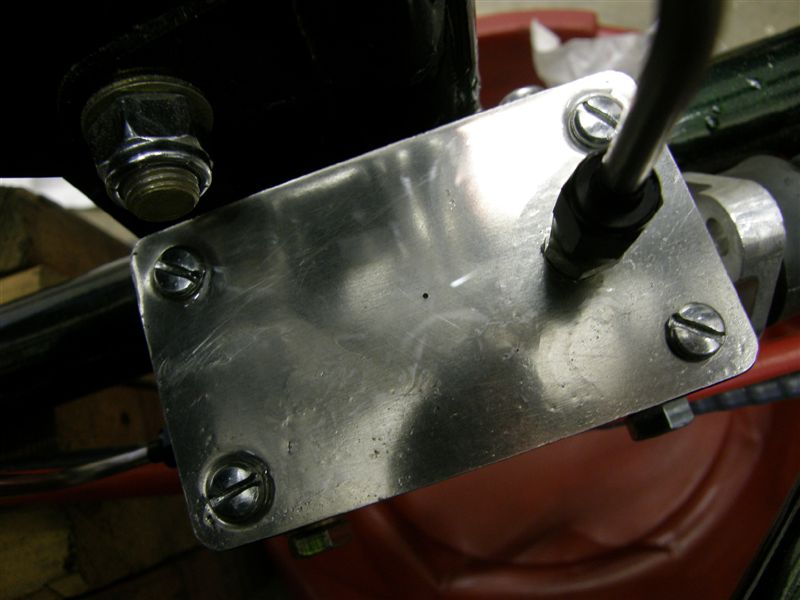

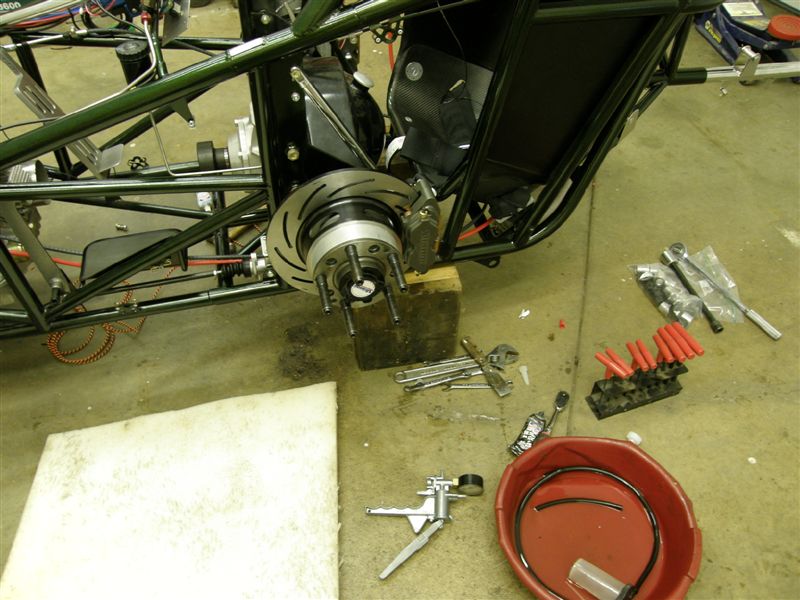

We went to bleed the brake system and discovered there was a vent hole in the master cylinder cover. Normal, correct? Well not in this system as there is a remote reservoir on this system that is above the brake calipers (calipers are above the master). When we filled the remote reservoir we had a brake fluid fountain out of the top of the reservoir. That problem was fixed by welding up the vent hole. The system was bled and we had a very spongy petal. The master cylinder was removed and bench bled. The result was it was much better, but still not acceptable. A vacuum pump was used to draw the fluid out of the calipers while tapping the sides of the calipers to try and get the air bubbles out of the system and this helped but it still is not right. This will have to be revisited.
