2010 Front Engine Dragster Week 2013 02 02

 REMEMBER TO CLICK PICTURES FOR MORE DETAIL / LARGER PICTURE

It does not feel like we made much progress this weekend. Tom was over and so were both of my sons. Number one son stayed behind the camera so I have no pictures of him, but I did get a picture of the number two son.

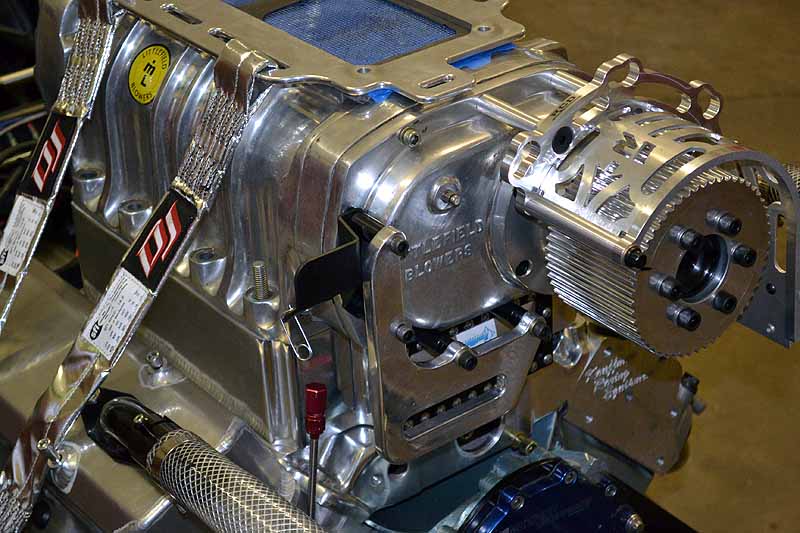

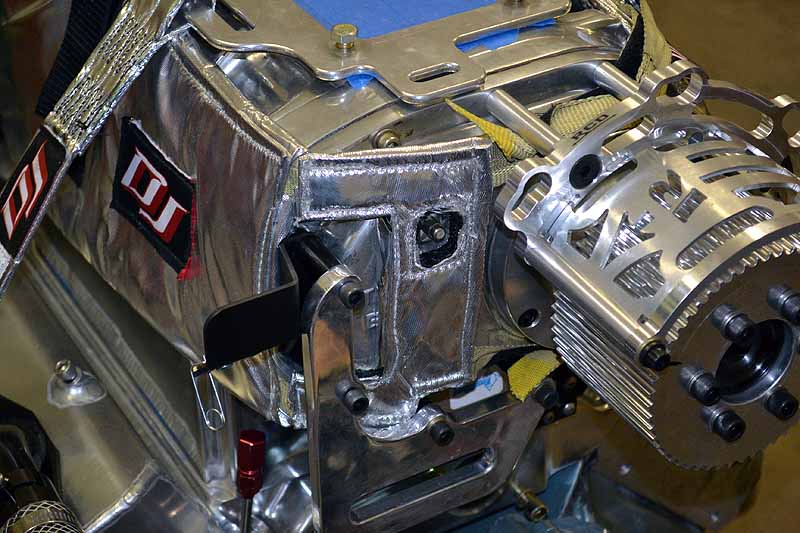

Fist task was an easy one. the blower bag is back from DJ with the modifications talked about in the last update, so that was put on.
Bag_0006_06_small                                                     Bag_0007_06_small

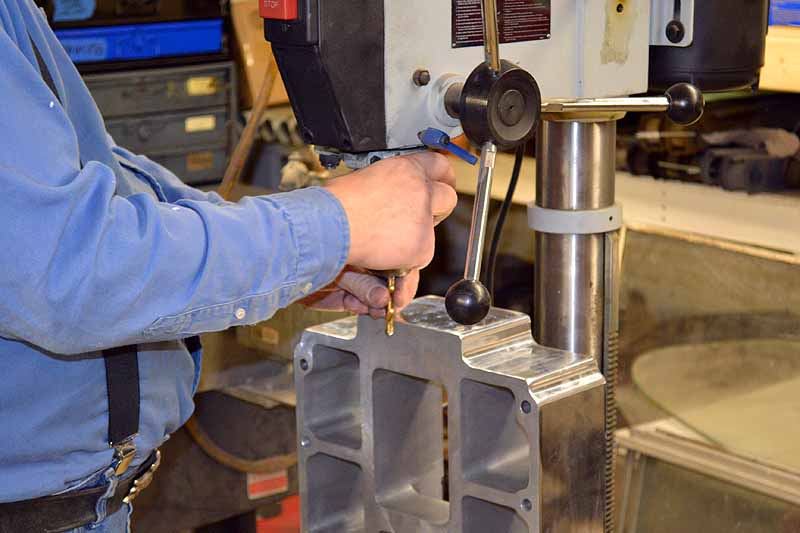

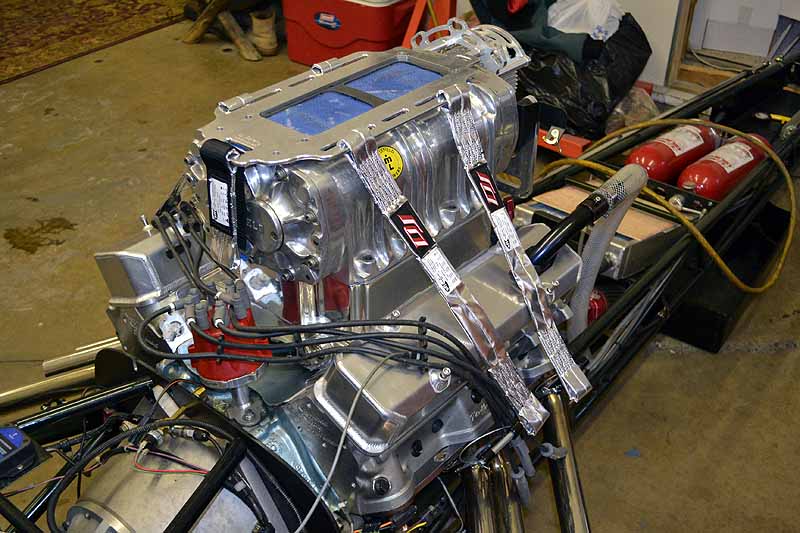

Ok, now that the blower bag is on and fits we can move on to installing the rear restraint strap. as you can see there is no restrain bracket currently on the rear. The first step was to remove the blower, and the spacer and drill a hole in the back of the spacer.
Rear_Restraint_0004_07_small                                                    Rear_Restraint_0010_05_small

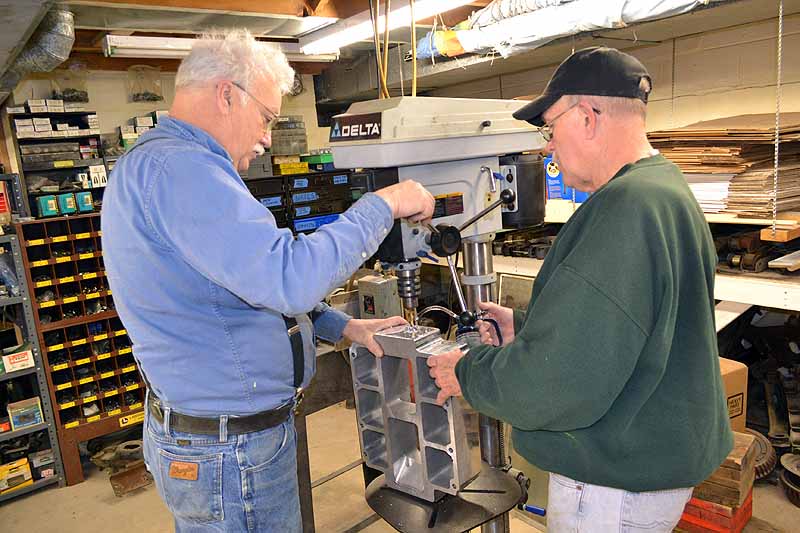

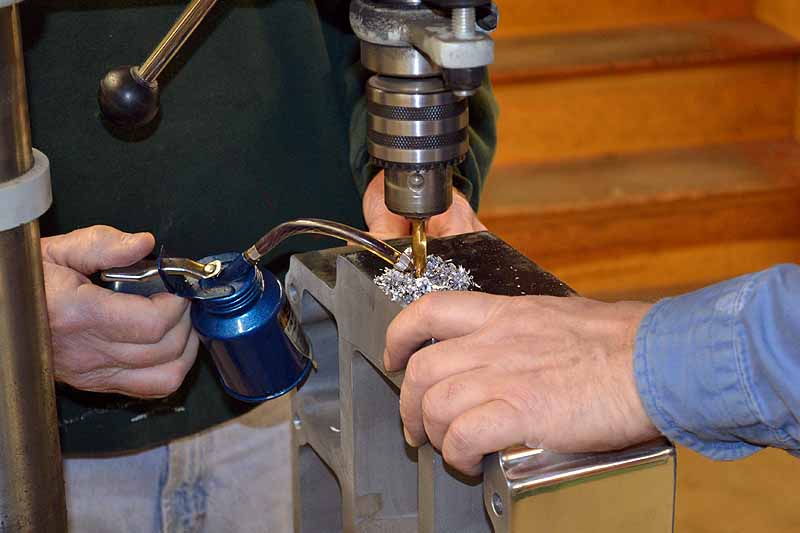

This area of the spacer is quite thick and we did not have to drill all the way through to give us enough hole depth to put a bolt in to hold the restrain strap.
Rear_Restraint_0017_03_small                                                    Rear_Restraint_0019_03_small

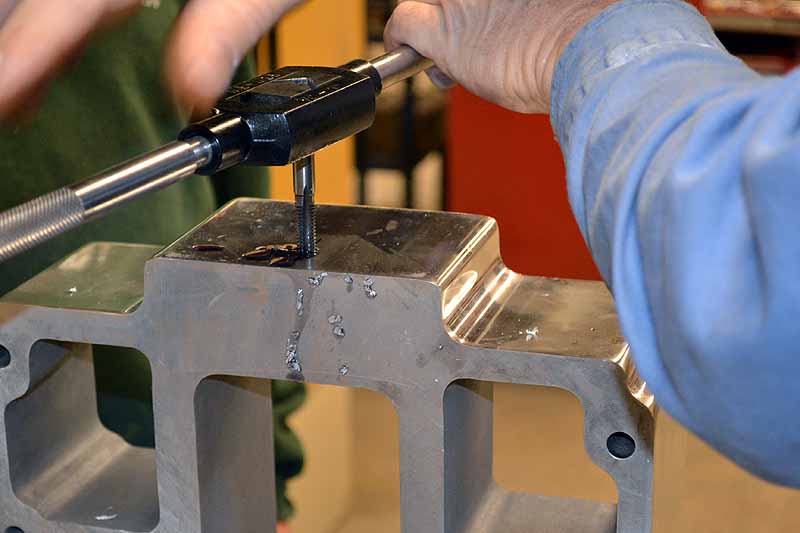

Now it is time to tap the hole. As you can see this is like a county job, a simple task takes a lot of workers, her there are three, myself, Tom, and number one Son George taking the picture.
Rear_Restraint_0034_01_small                                                   Rear_Restraint_0037_01_small

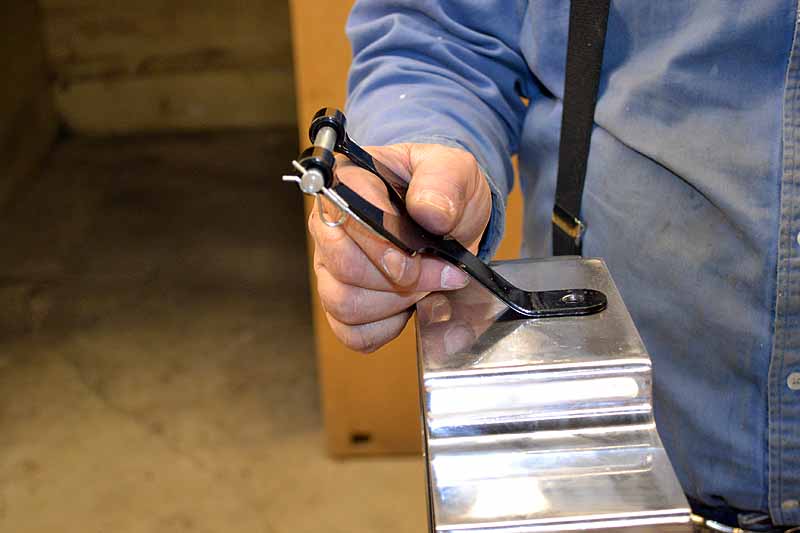

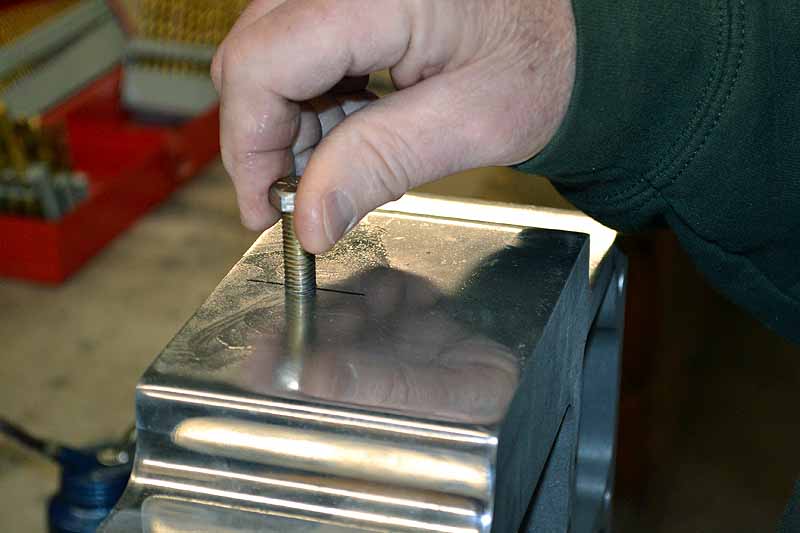

Rear_Restraint_0045_small                                                   Rear_Restraint_0051_01_small
Rear_Restraint_0057_01_small                                                   Rear_Restraint_0061_01_small

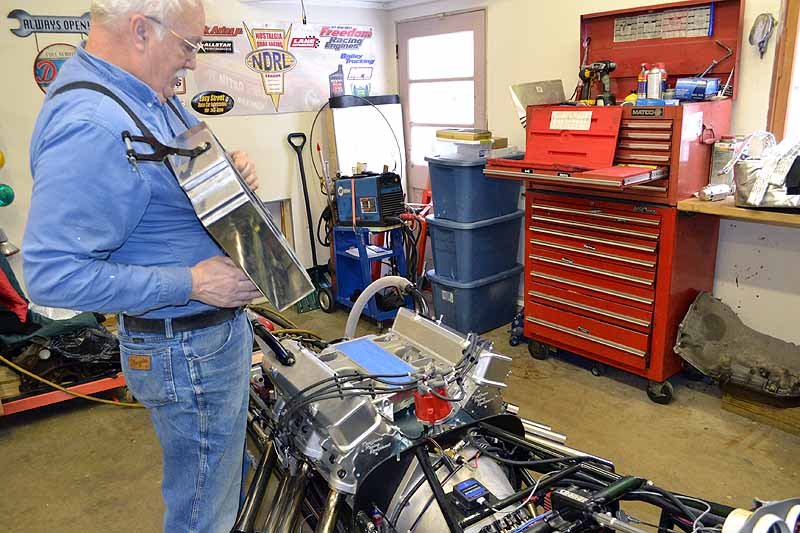

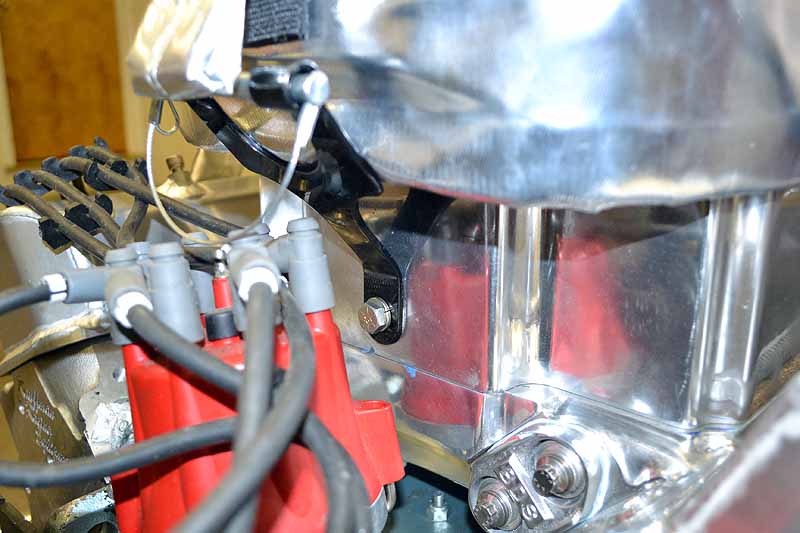

Rear_Bracket_0211_smallTime to put the spacer with the bracket back on the intake, this stuff gets heavy. So this is what that looks like.

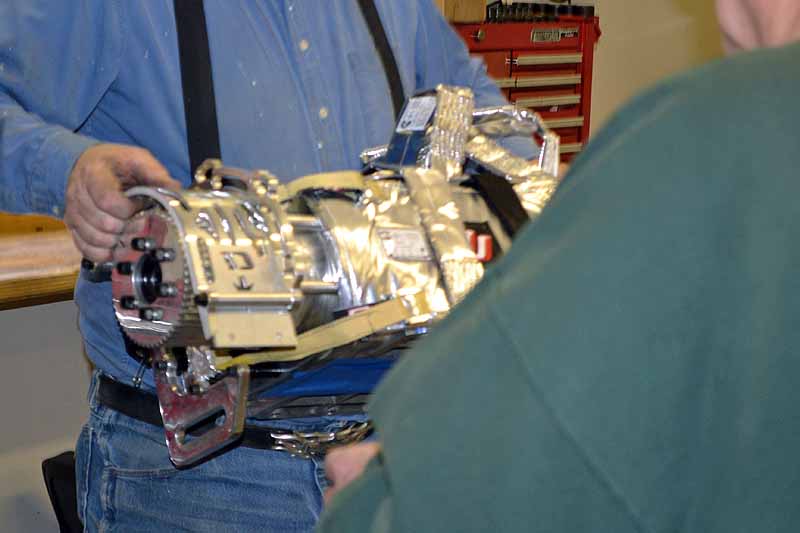

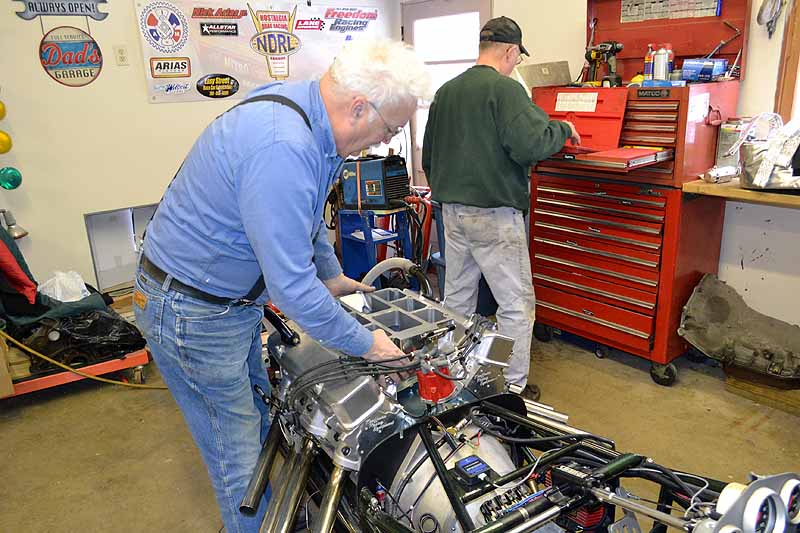

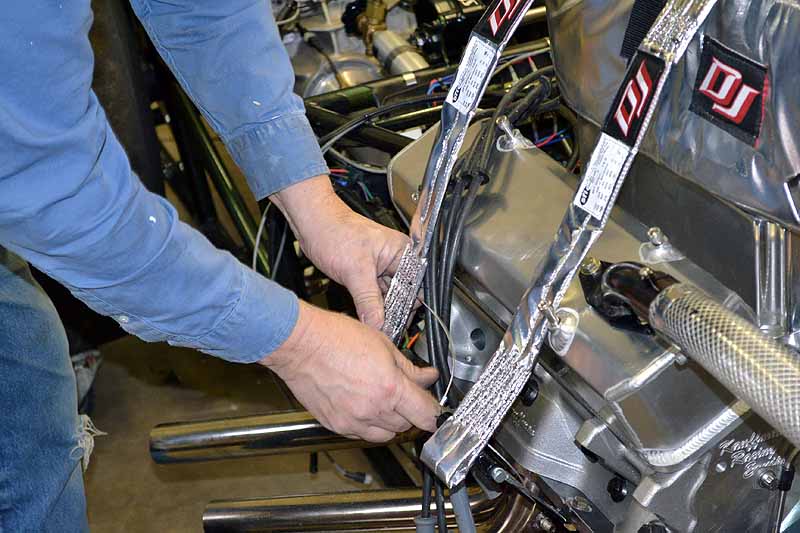

So lets put the blower back on to see what it lookls like.
Install_0062_01_small                                                      Install_0068_01_small

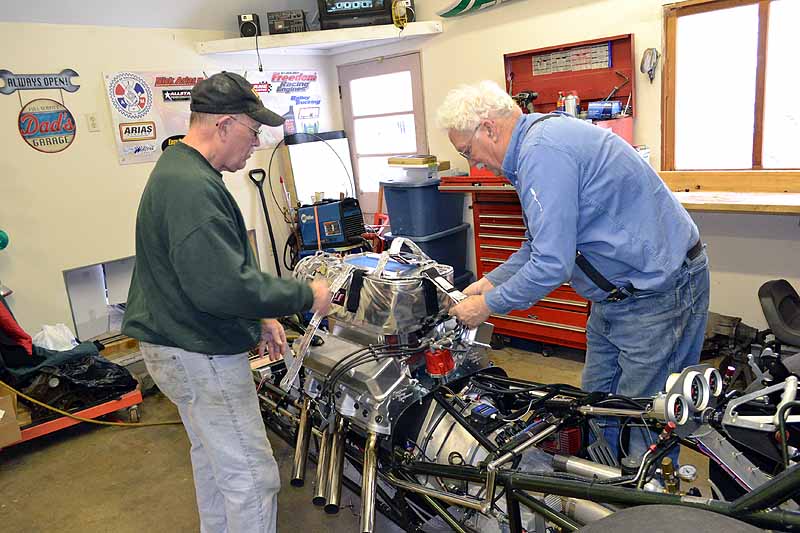

Install_0070_01_smallDid someone put lead weights in this thing, no need to go to the gym today.







Install_0074_01_small                                                         Install_0077_small

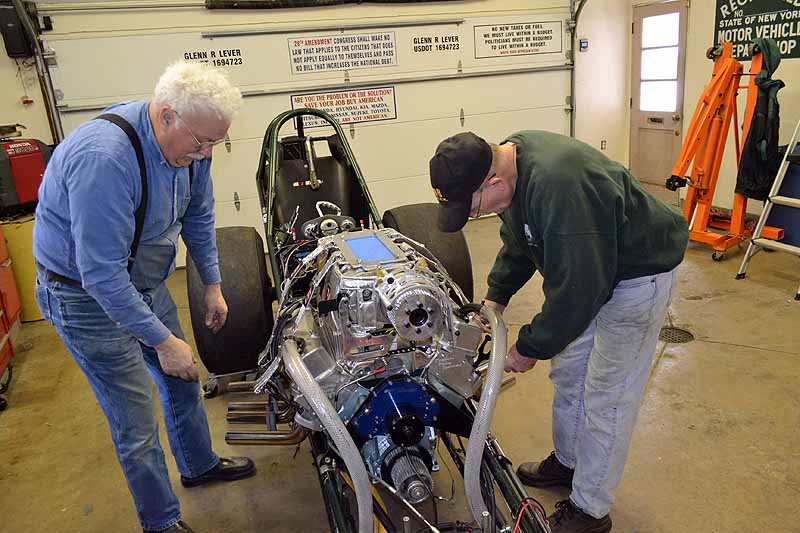

Install_0078_smallThat looks like it will work. Now I just need the part that goes on top of the blower, Spud?

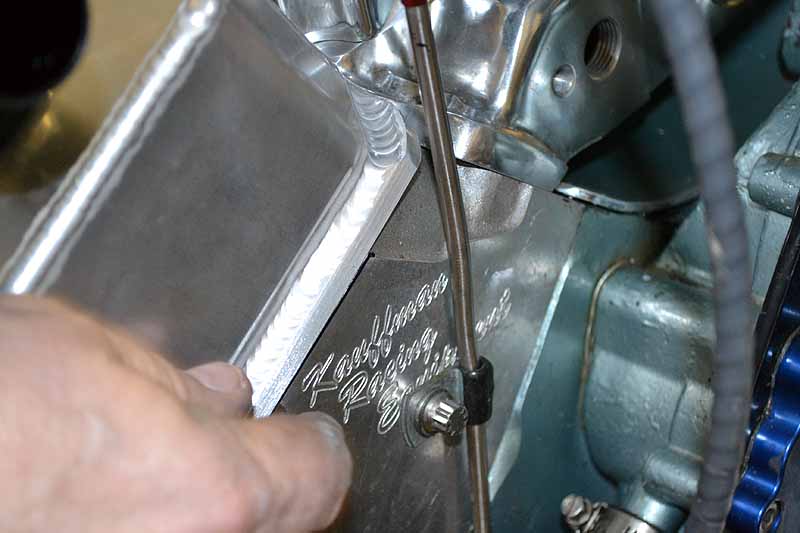

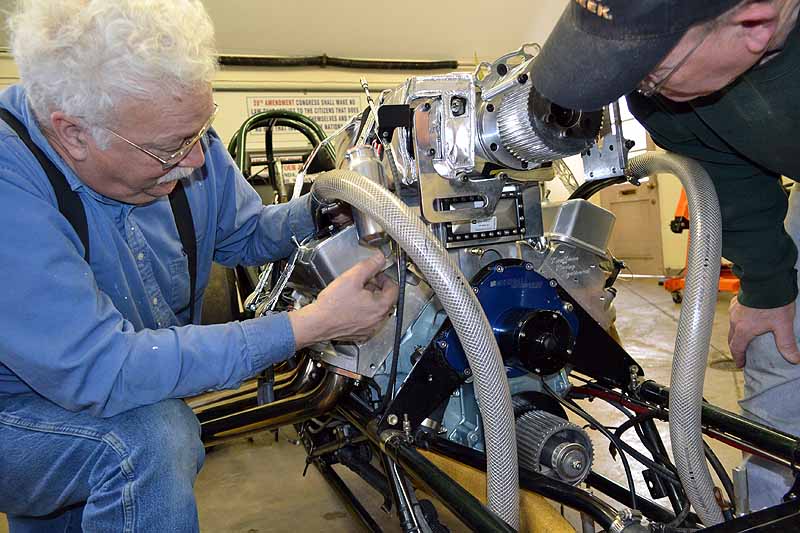

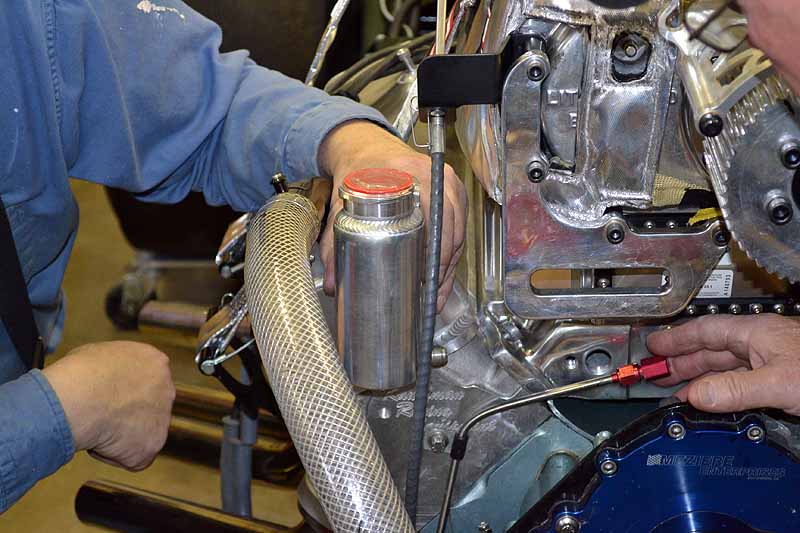

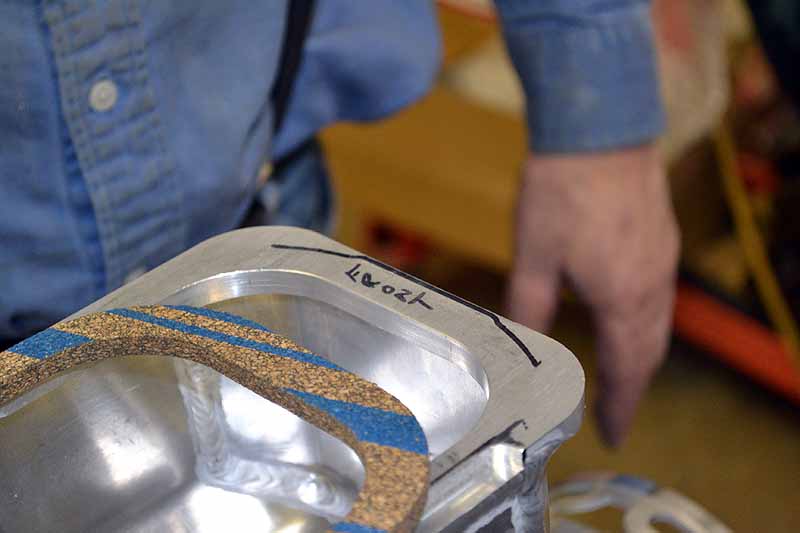

With the blower on top of the intake there is no way to get coolant (water) into the block. We came up with a plan to mount a small tank off the right front head and run a line to the water pump. The valve cover extended beyond the head so that had to be ground back
Bracket_0085_small                                                        Bracket_0089_small
Bracket_0098_small                                                        Bracket_0124_small

Now that the valve cover is flush with the head we can make a “Simple” plate bracket to hold the tank
Bracket_0155_small                                                        Bracket_0159_small

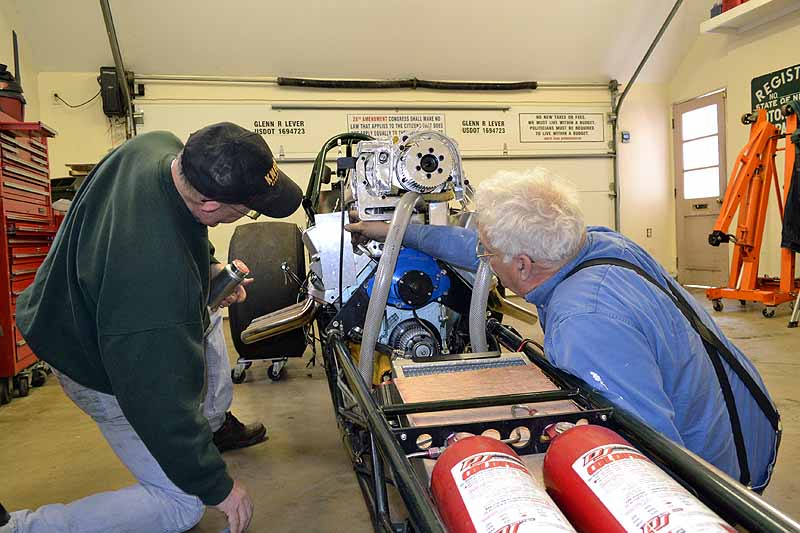

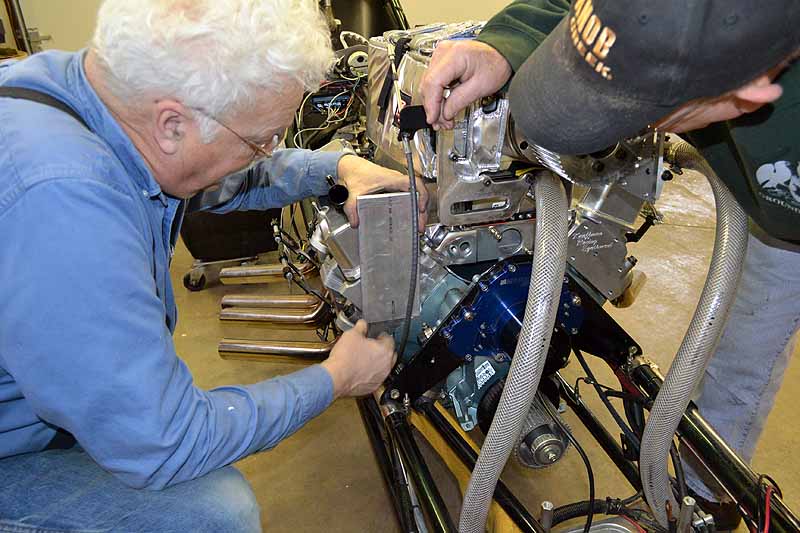

Ok, let’s study it some.  How complicated can it be;  it is just a flat plate after all
Bracket_0160_small                                                        Bracket_0171_small

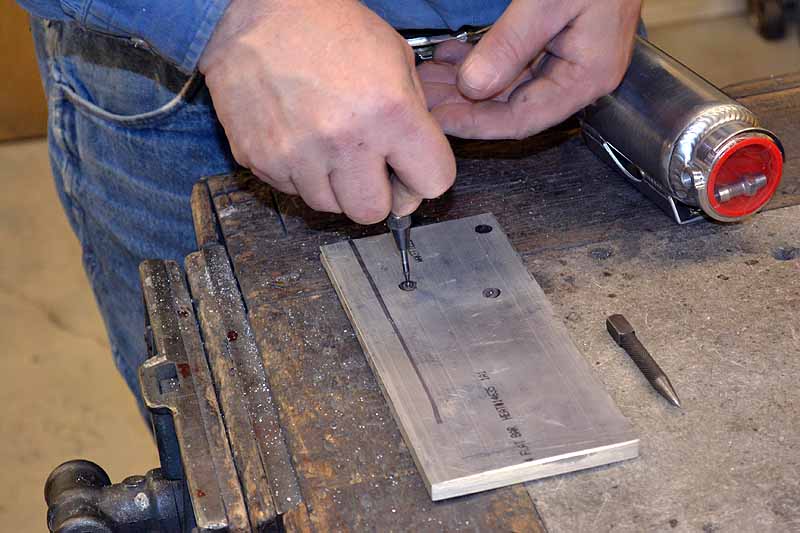

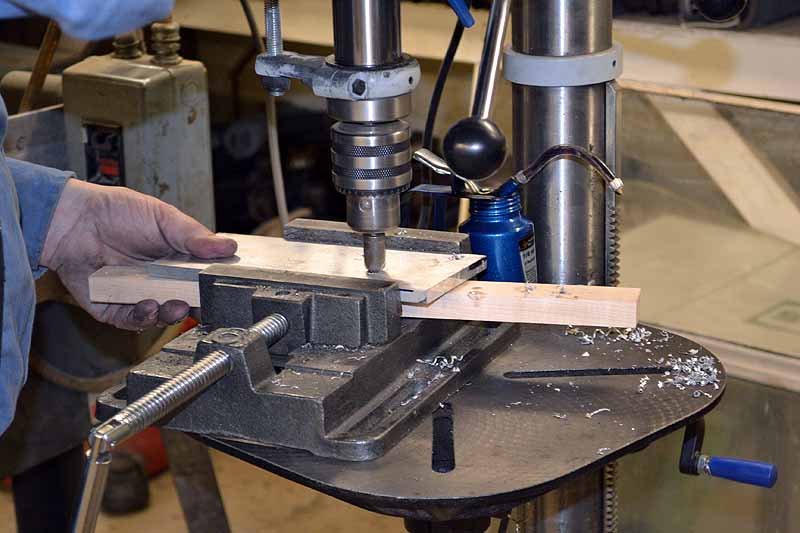

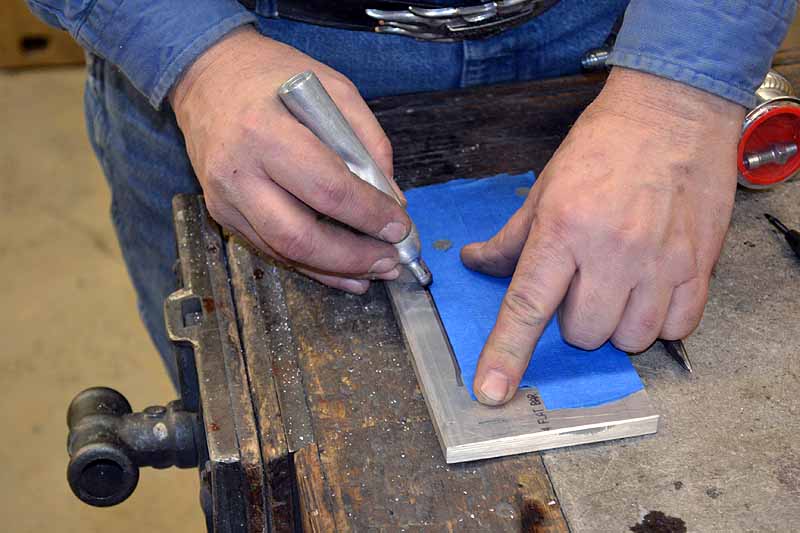

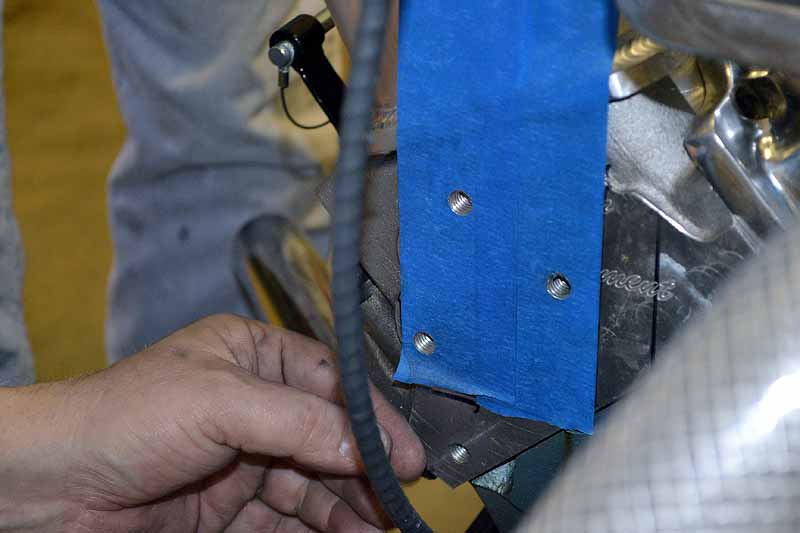

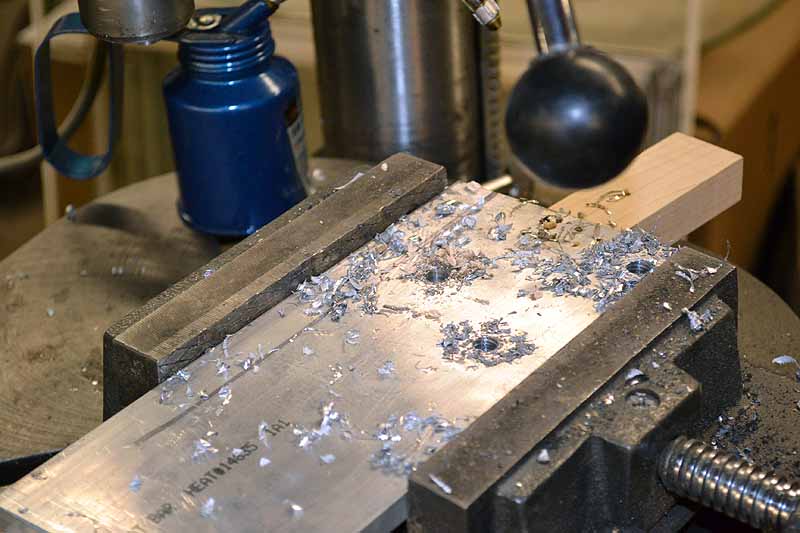

Let’s make a patter of the holes and do some drilling
Bracket_0181_small                                                       Bracket_0185_small
Bracket_0187_small                                                       Bracket_0195_small

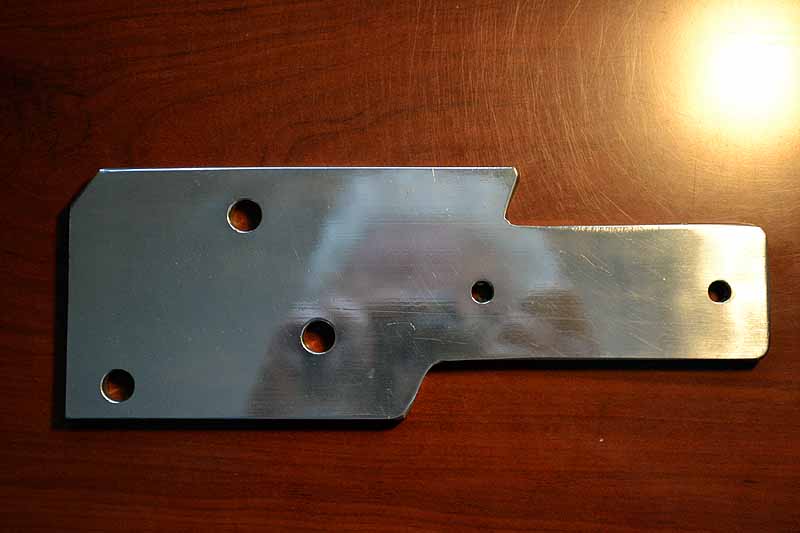

A little deburring of the holes and a little buffing
Bracket_0200_small                                                      Bracket_0244_small

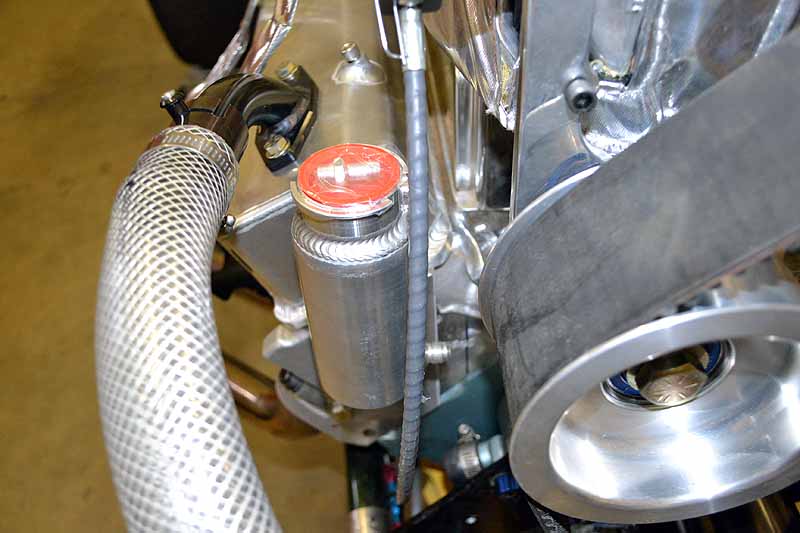

Bracket_0208_smallAnd the tank can be mounted to the engine







Number_two_Son_0134_smallHere is Son number two: Arthur

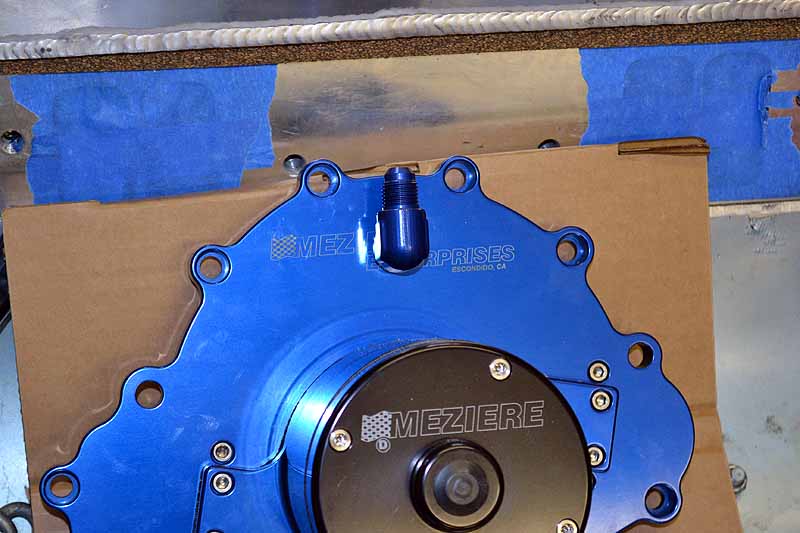

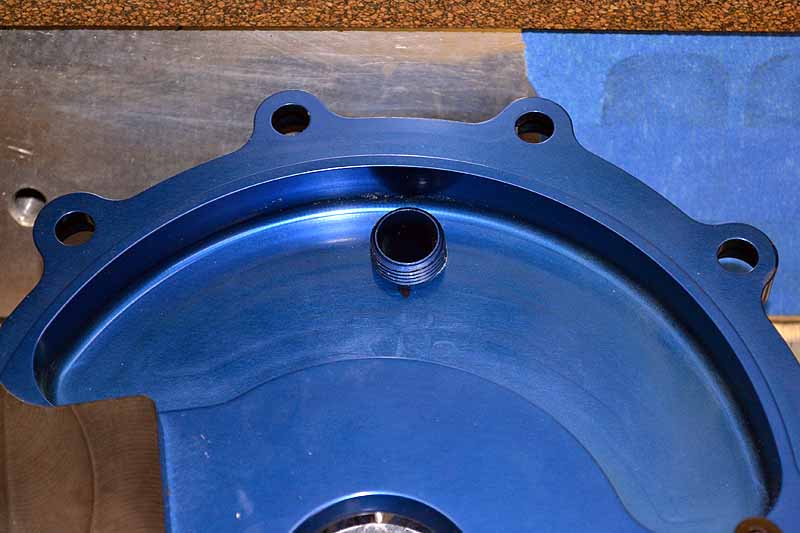

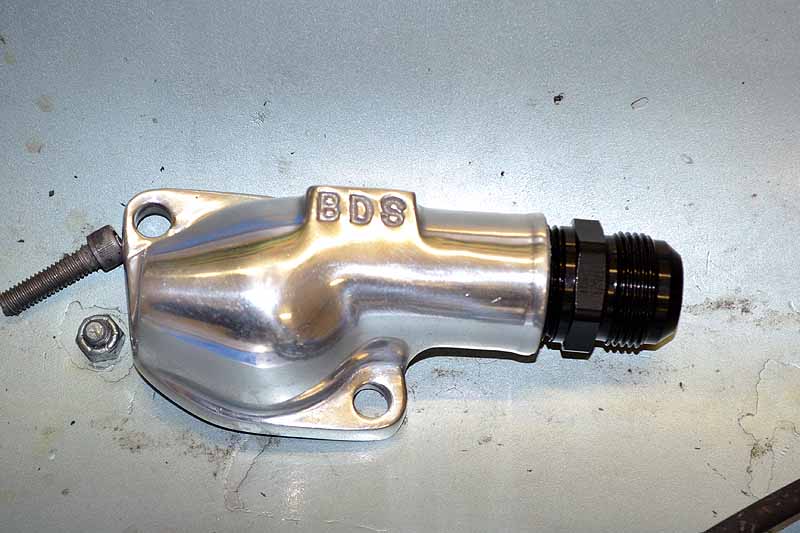

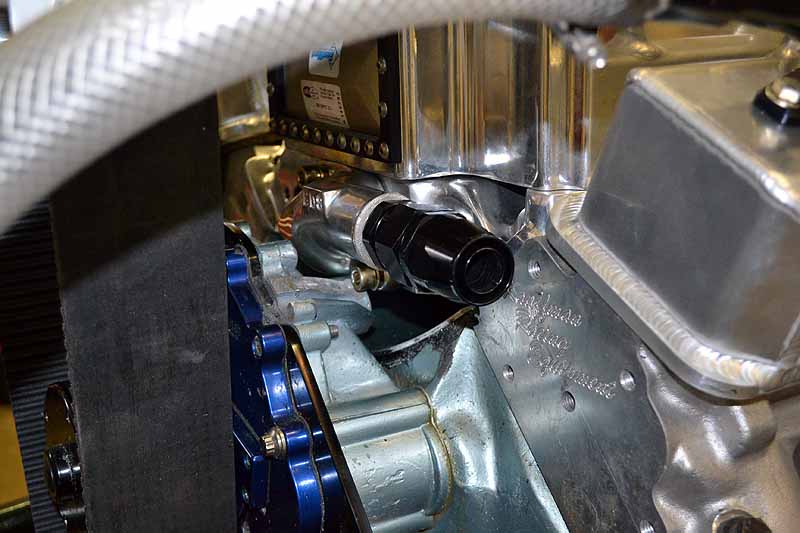

So now we have to plumb the coolant system. Drilled and tapped the front of the pump and the water outlet with the help of Steve over at his shop
Fitting_0215_small                                                      Fittings_0238_small
Fittings_0234_small                                                      Fittings_0236_small
I’m going to have the fittings welded in place.  This water pump is my spare.

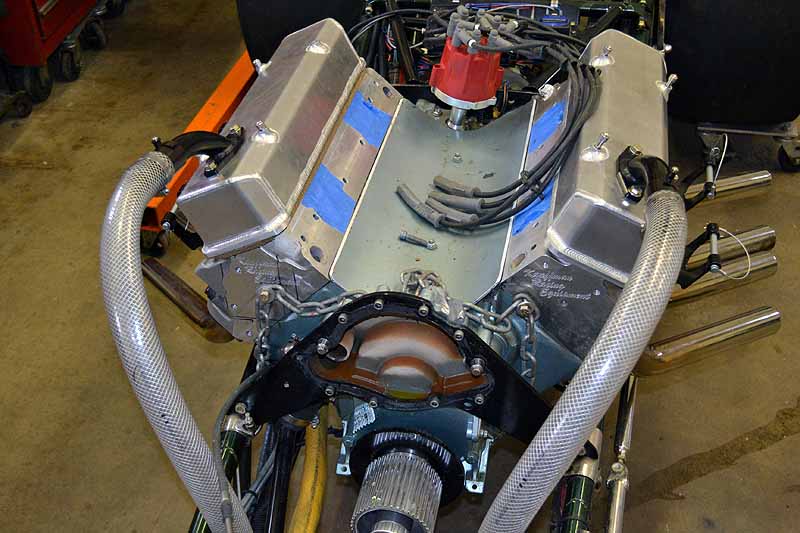

So_Here_Is_Where_We_Are_Now_0231_smallSo, that means, of course, that I have to remove the pump from the engine to get that taped and welded.  Also, that means we take the whole thing apart…again.
