2010 Front Engine Dragster Week 2013 04 13

 REMEMBER TO CLICK PICTURES FOR MORE DETAIL / LARGER PICTURE

Ok, we had it running last Saturday, but had a coolant leak on the right head:
http://www.youtube.com/watch?v=r6zRsObuerw&feature=youtu.be

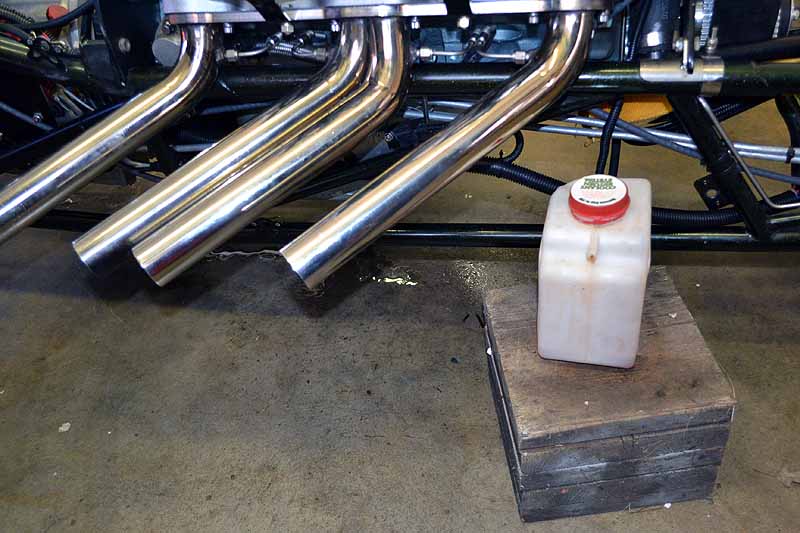

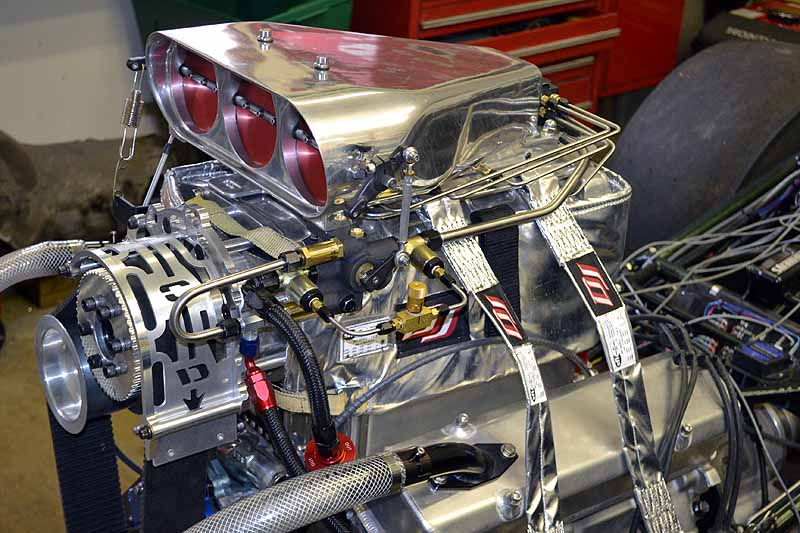

So, this is what it looked like Saturday afternoon after it ran.  On this side you can see the coolant (water) on the floor.  It was leaking from the head gasket right above the number 6 cylinder.
DSC_0820_small                                                      DSC_0831_small

So, we got the car nuts together along with the boss (better half) and took it apart….again!
DSC_0825_small                                                      DSC_0829_small

DSC_0832_small We could not find any evidence of a leak, but solid copper gaskets are know for leaking when you run coolant. so …..

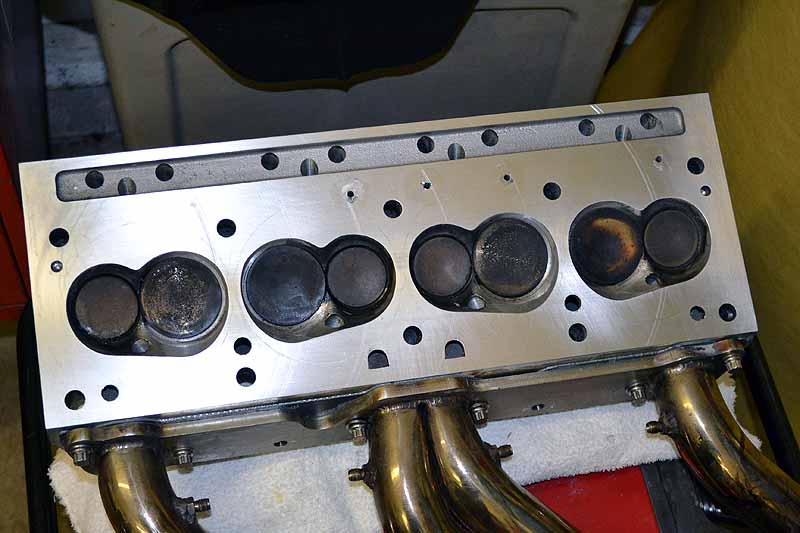

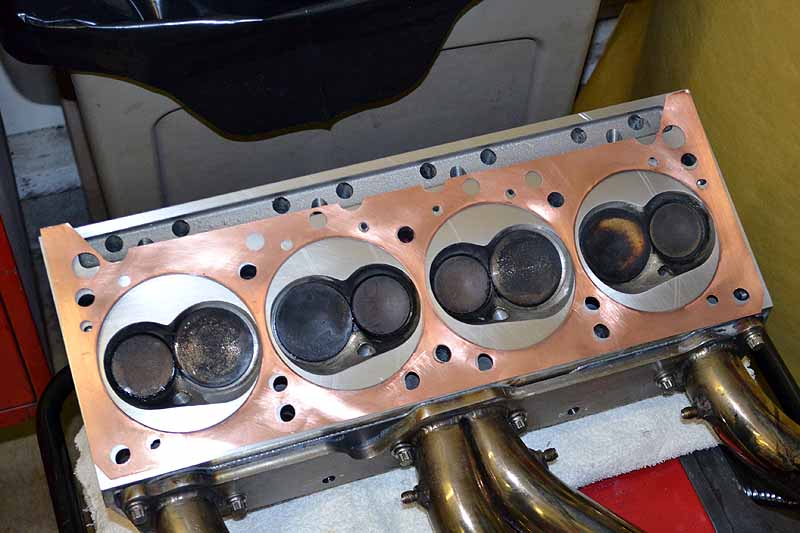

DSC_0848_small We cleaned all the surfaces up.

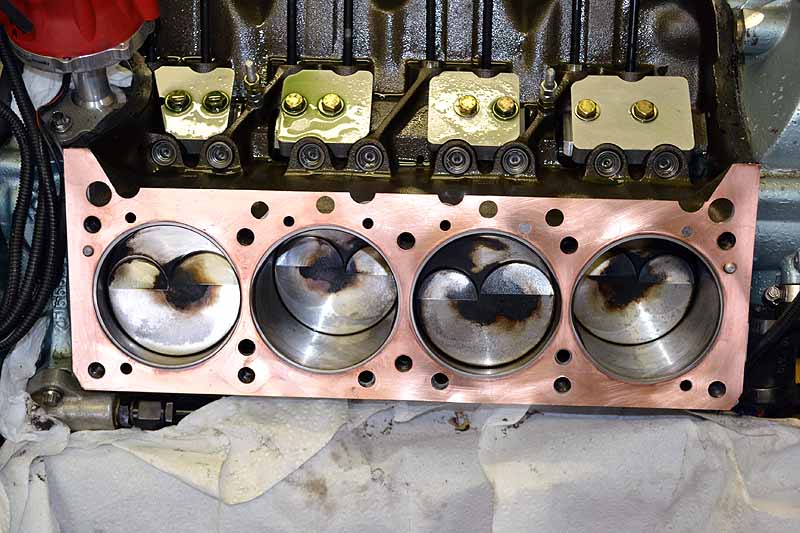

DSC_0849_small  DSC_0850_small

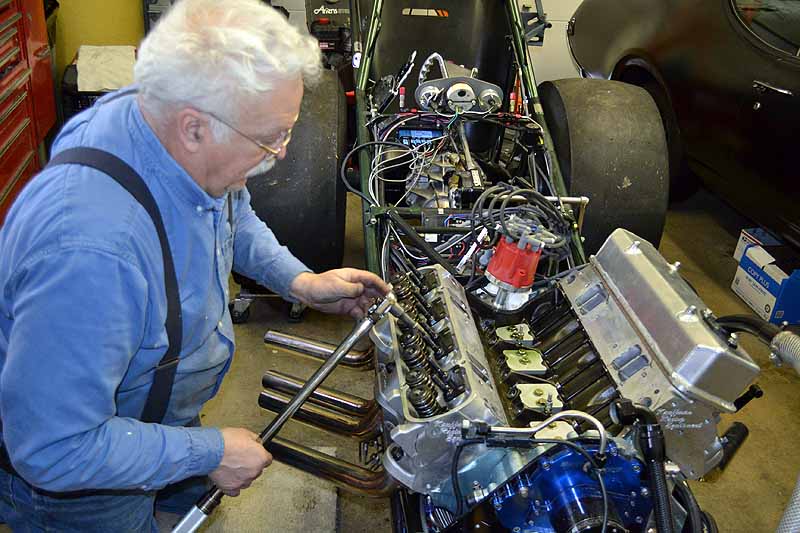

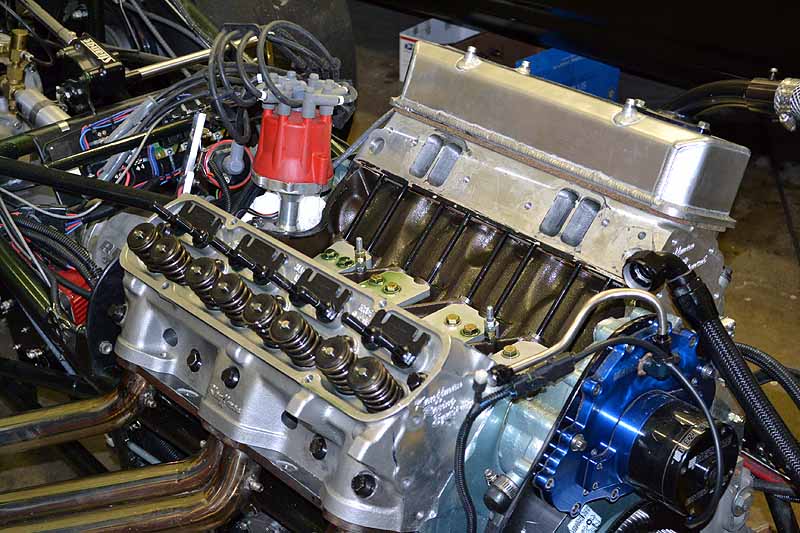

DSC_0853_small And put it all back together again.
DSC_0855_small  DSC_0857_small

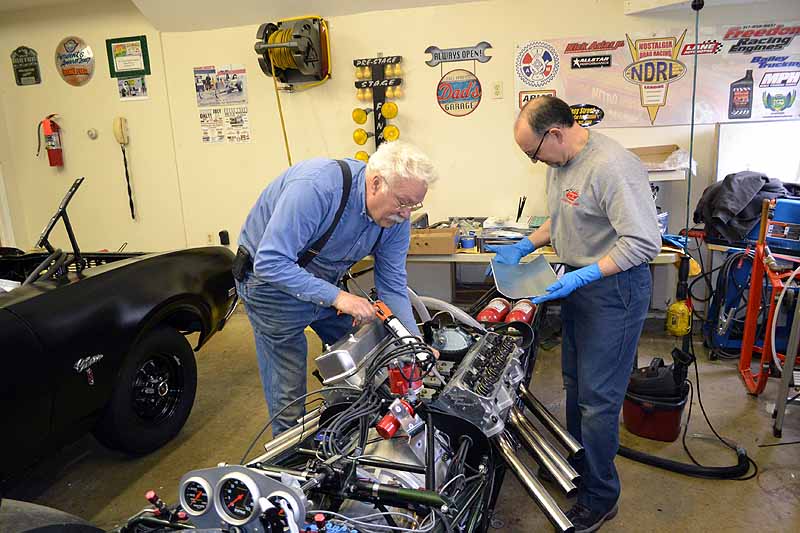

DSC_0862_small And with lots of help from good friends got it back together in no time

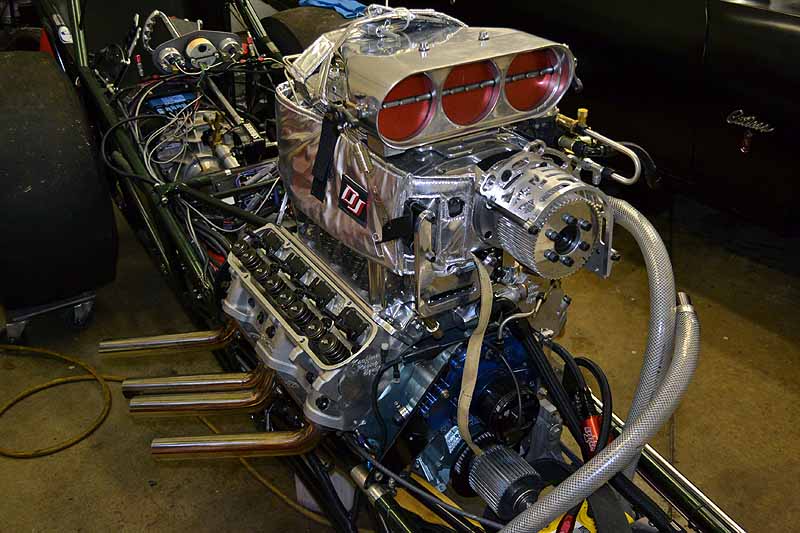

DSC_0864_small  DSC_0880_small

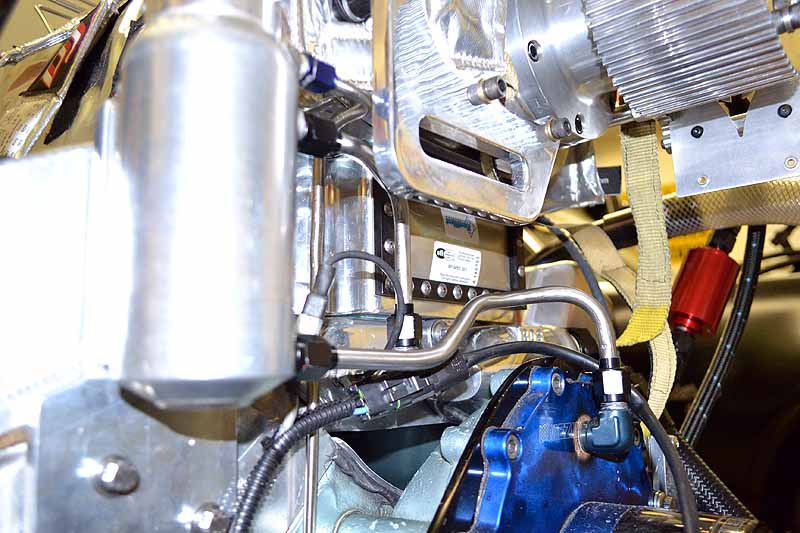

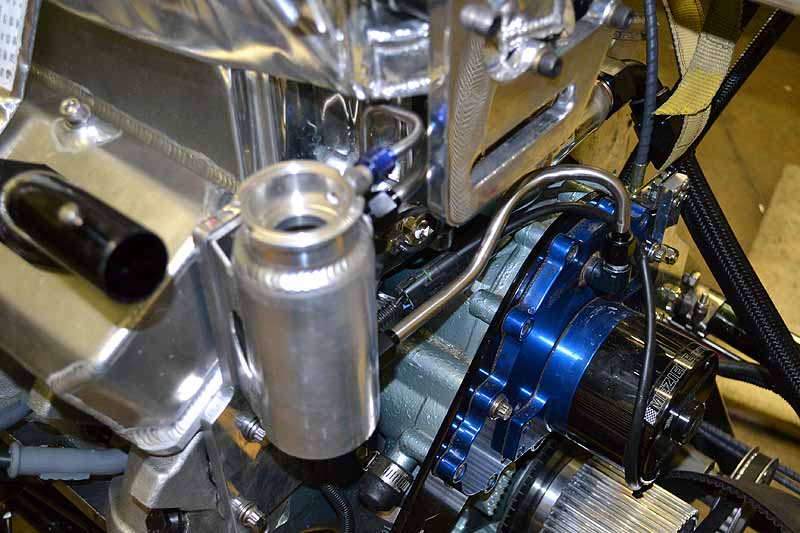

DSC_0890_small So while we were at this point Jerry from Meziere Enterprises had made a suggestion that we plumb the pressure side into the expansion tank to make the system self , and constantly clearing of air. A new line was plumbed from the intake to the expansion tank (an ne bung was welded into the tank to do this. The location makes it hard to get a good picture.

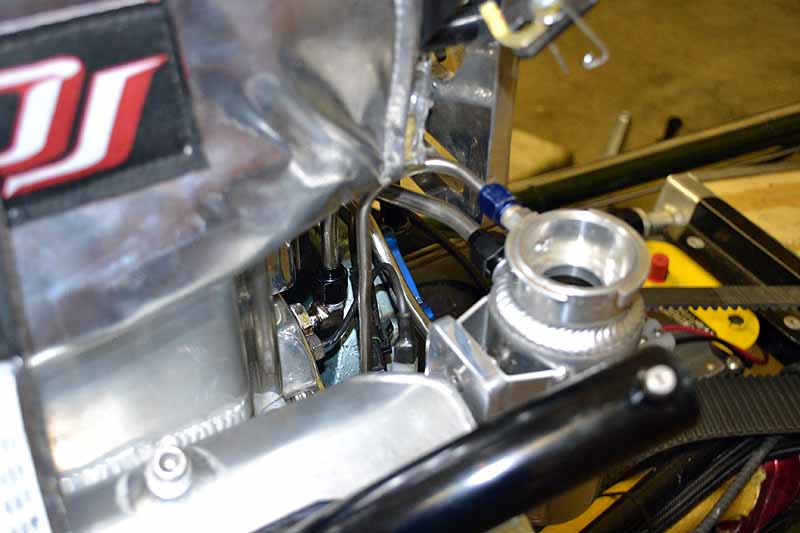

DSC_0891_small  DSC_0897_small

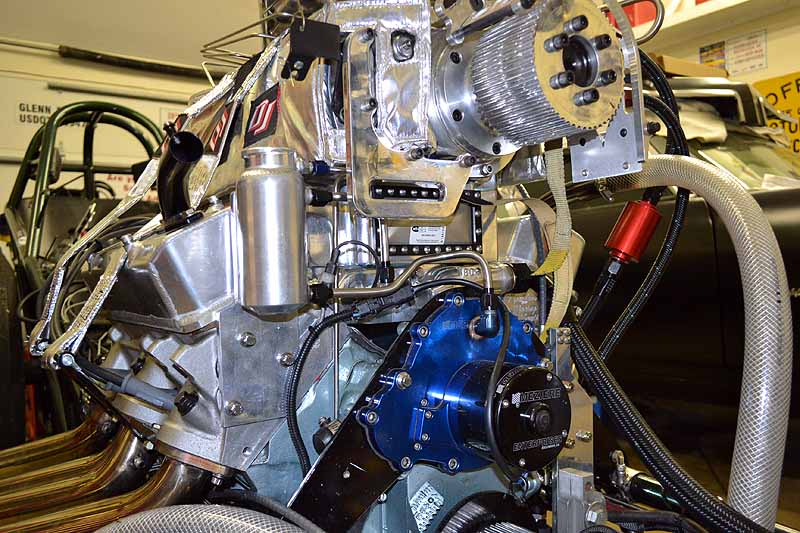

DSC_0898_smallThe engine was fired up and all leaks are gone and the new line does just what is should.







DSC_0899_smallThese are the open tasks that need to be completed before going to the track on the 27th.
