2010 Front Engine Dragster Week 2014 01 06

 REMEMBER TO CLICK PICTURES FOR MORE DETAIL / LARGER PICTURE

Ok, Matt has the engine taken apart after 200 runs.

The crank needs to be ground, bearings need replacement.

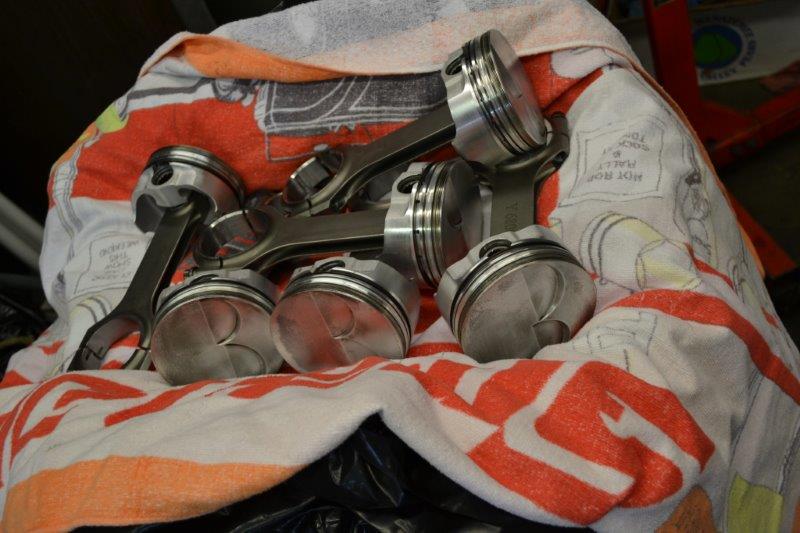

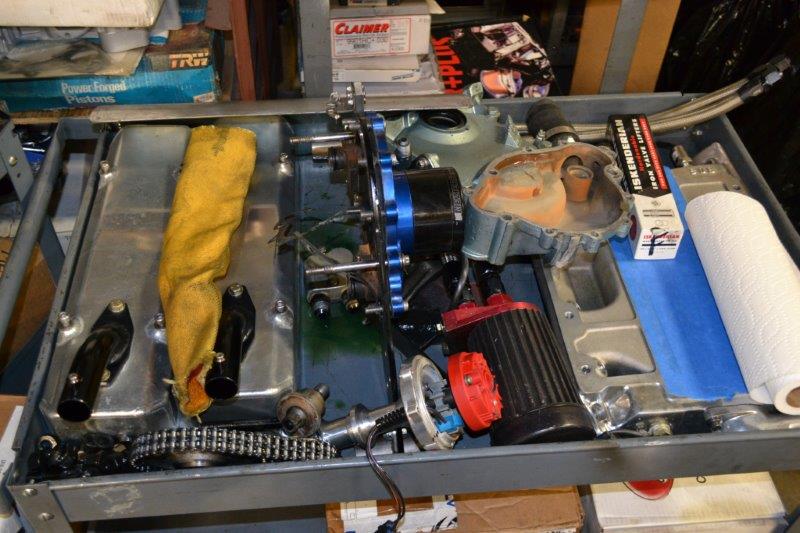

DSC_3522_small                                                    DSC_3523_small

I believe that 200 runs on these parts is a conservative estimates.

Plan is now to check every 50 runs.

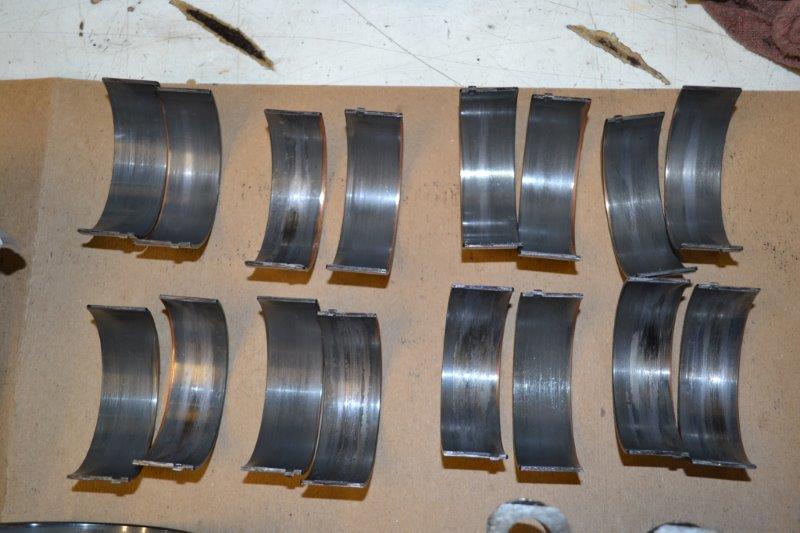

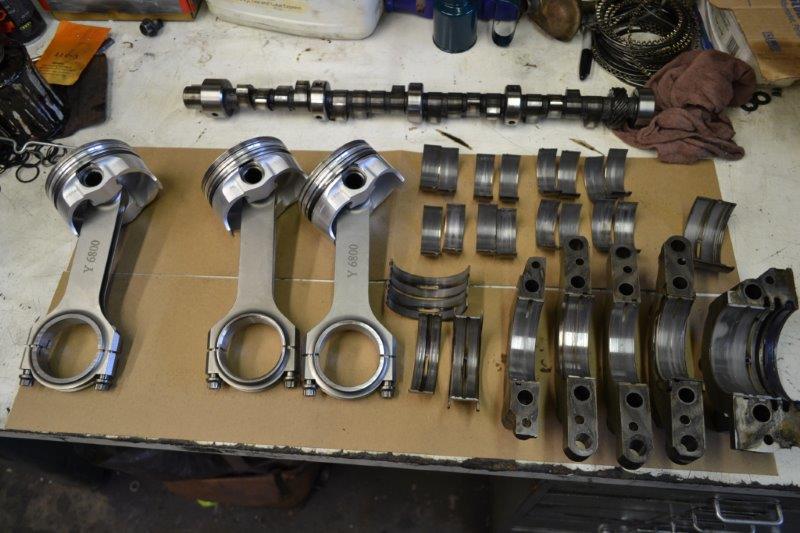

DSC_3497_small                                                   DSC_3498_small

Looks like I have moved beyond running the engine the full season without taking a look.

I’m not funny car yet, not Steve yet, but no longer as much of a hobby car racer as I started out to be.

The rod bearing in the center of the engine took the biggest hit.  They are paired top and bottom, but not paired the way they came out of the engine

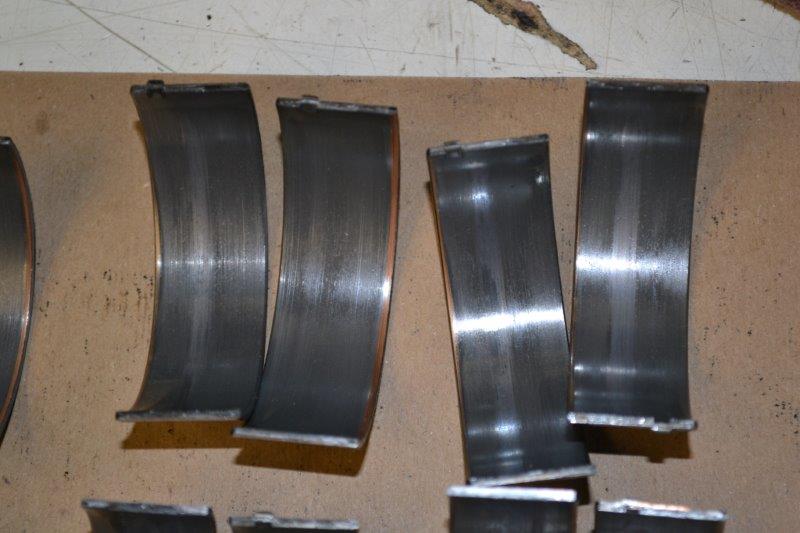

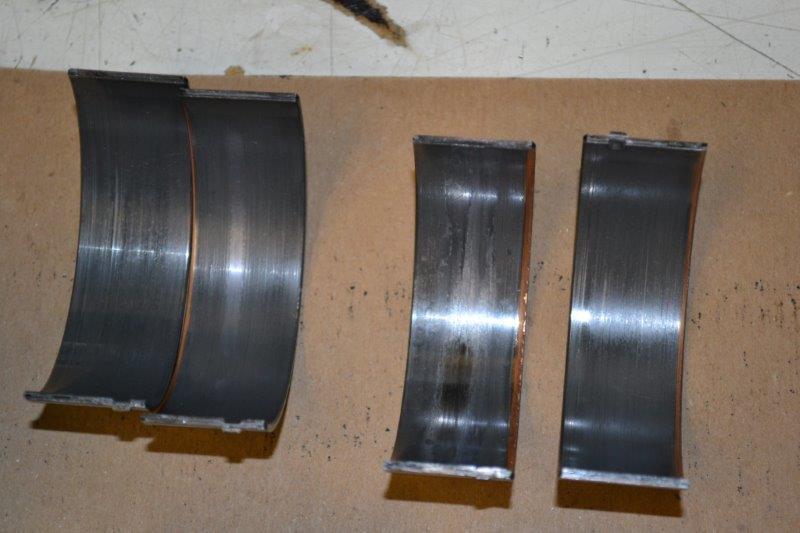

DSC_3503_small                                                  DSC_3504_small

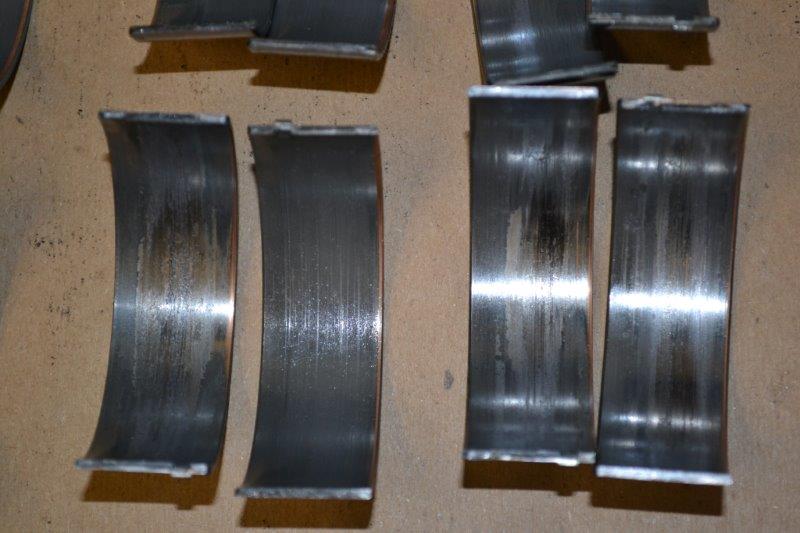

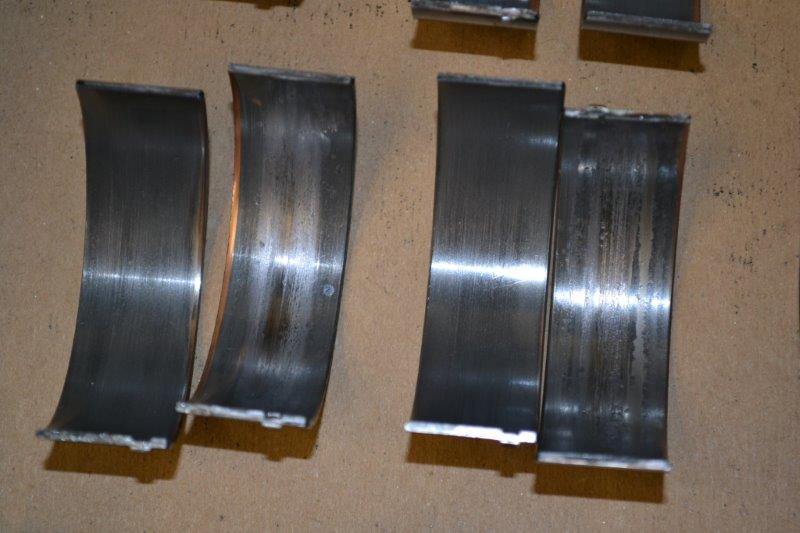

DSC_3505_small                                                  DSC_3506_small

There were never any shavings in the oil filter.  It appears they were just hammered until they started to squeeze out the side and rub against the crank journal.  The crank does need to be ground.

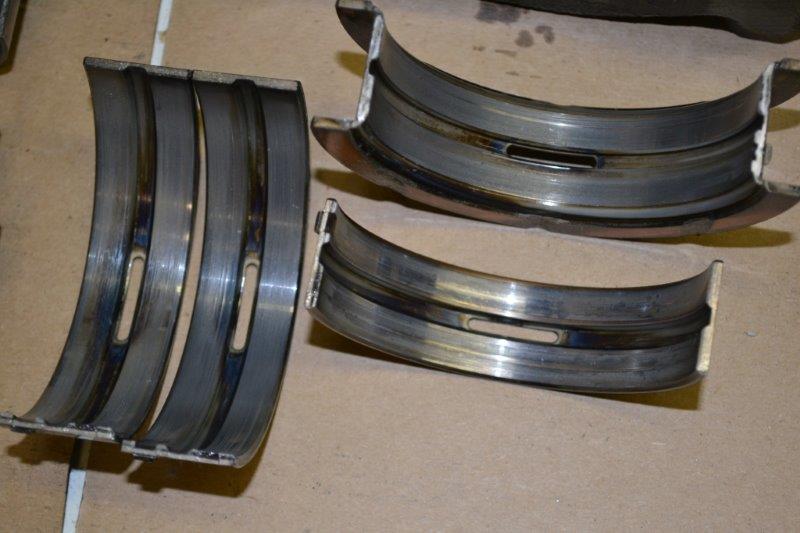

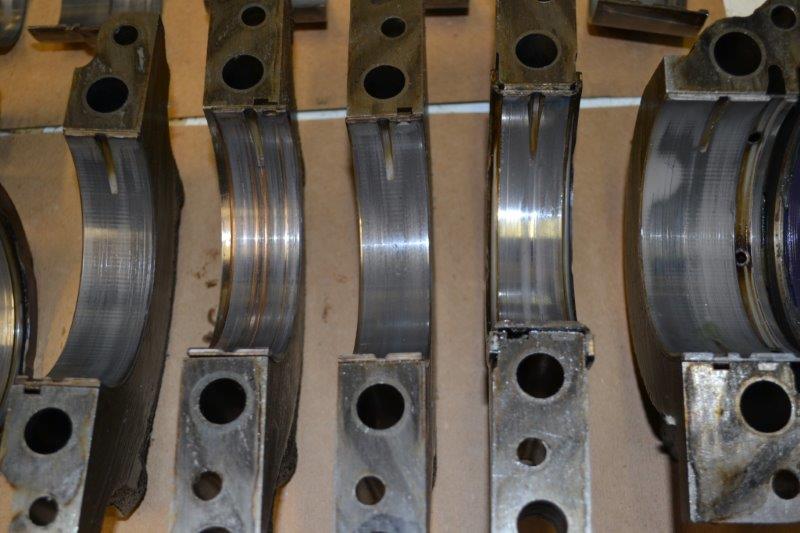

DSC_3507_small                                                  DSC_3509_small

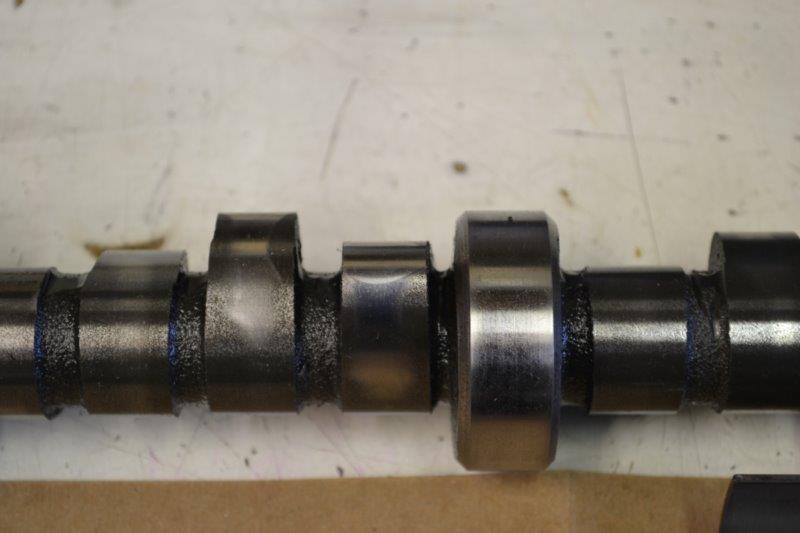

I could not get the shot I wanted of the cam.  The one lobe has the start of a dish at the top.  We will replace the cam with the same grind, but with a more blower friendly lobe separation.
DSC_3516_small                                                  DSC_3516_small

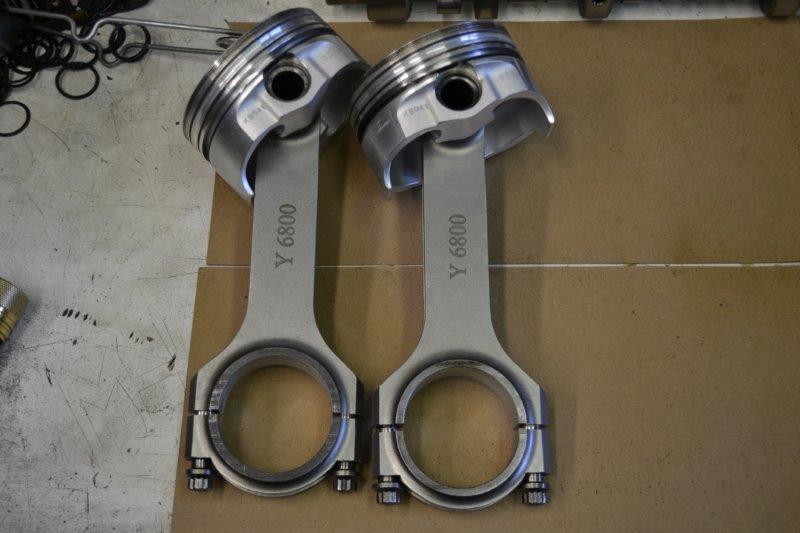

DSC_3521_smallI think they still look nice
