Polyurethane Control Arm Bushings

Click the picture for a larger image

This is my justification to charge $15.00 extra per pair of control arms to install Polyurethane Bushings

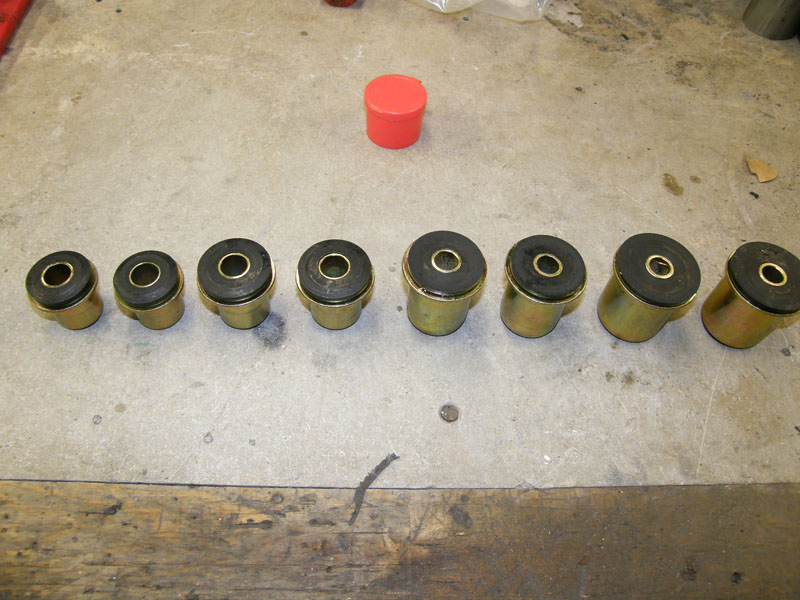

Polyurethane Bushings P1250003
This is a set of Polyurethane Bushings as they come out of the package. The little red tube is the white STICKY grease included in the package of the Polyurethane Bushings.

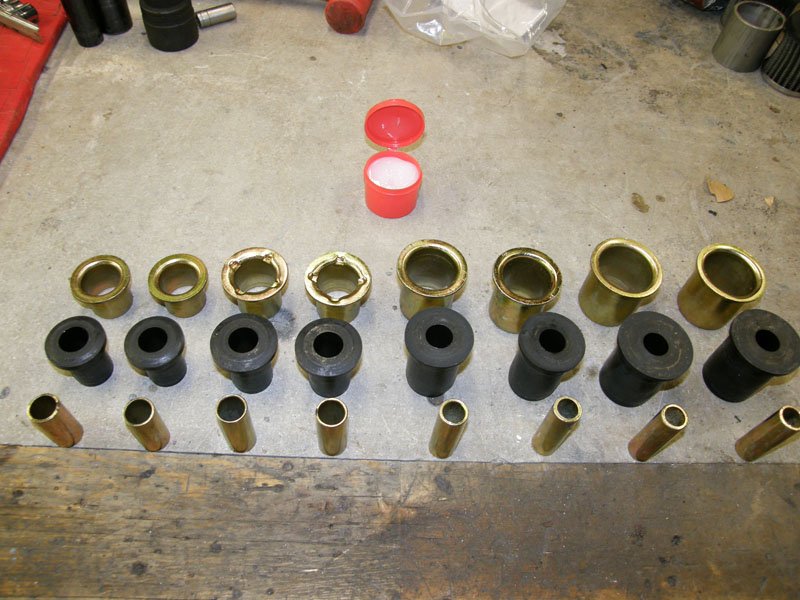

Polyurethane Bushings P1250006
The first step is to disassemble the bushings and sleeves

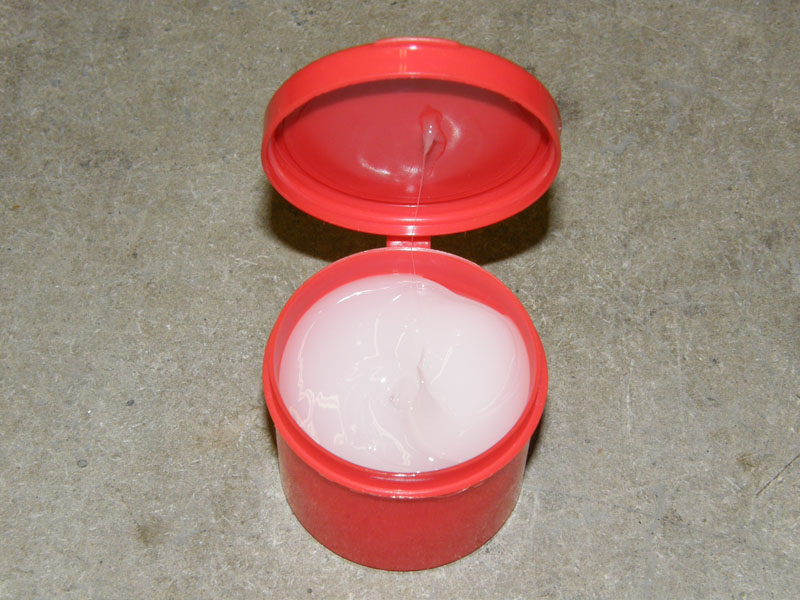

 Polyurethane Bushings P1250007 This is the grease. It is extremely sticky and gets on everything. Clean up can only be done with thinner. It gets on the tools, the workbench, everywhere.

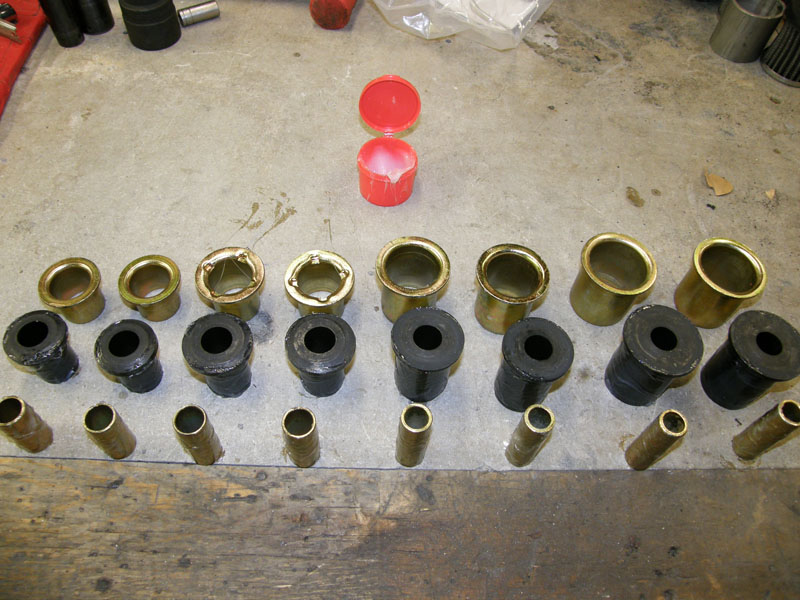

 Polyurethane Bushings P1250008

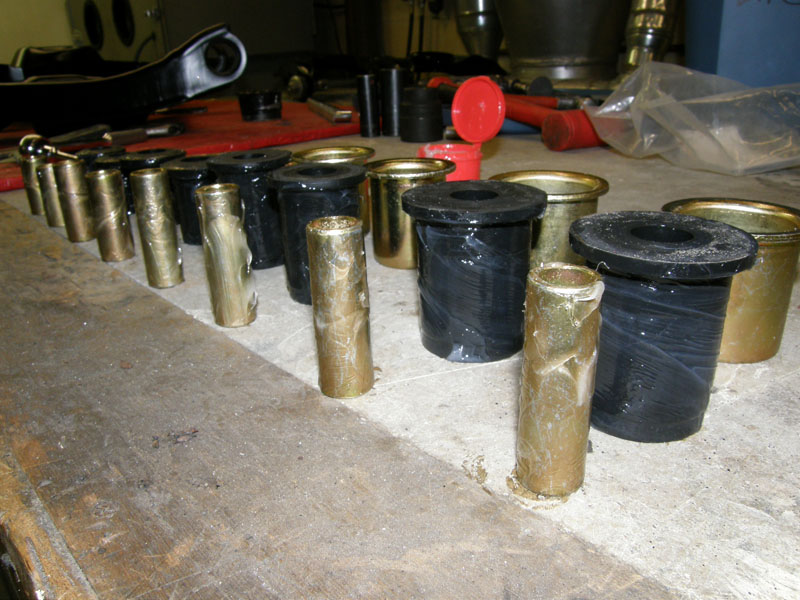

The grease has been applied to all the sleeves, bushings and center secetions

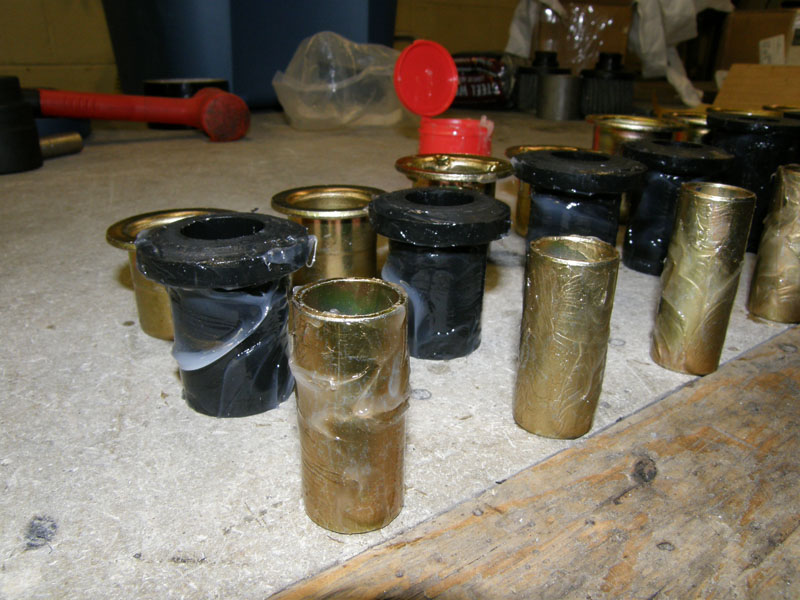

 Polyurethane Bushings P1250009  Polyurethane Bushings P1250011

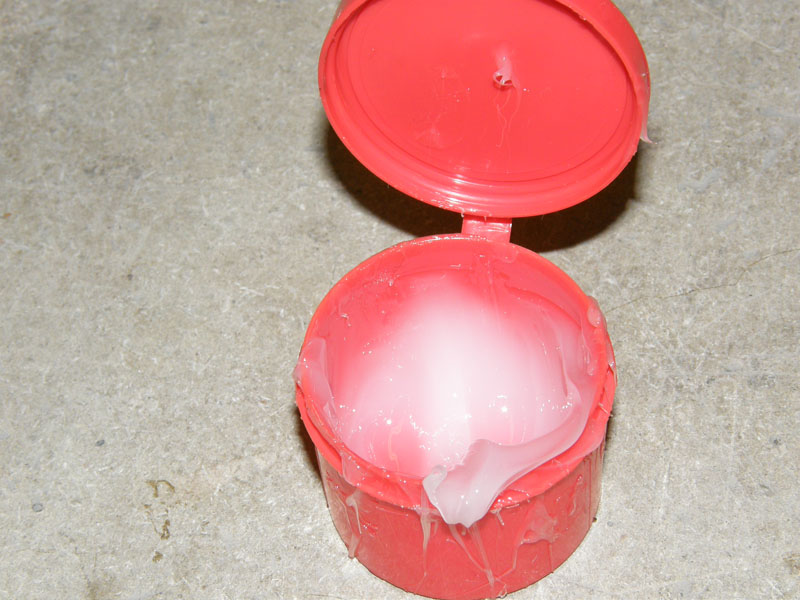

 Polyurethane Bushings P1250012
In my opinion Polyurethane Bushings should not be used unless you really need them (road racing). I do not care what people say in the long run they are more trouble then they are worth. Even if you dissemble them grease them they will eventually squeak, and the ride they provide is harsh.

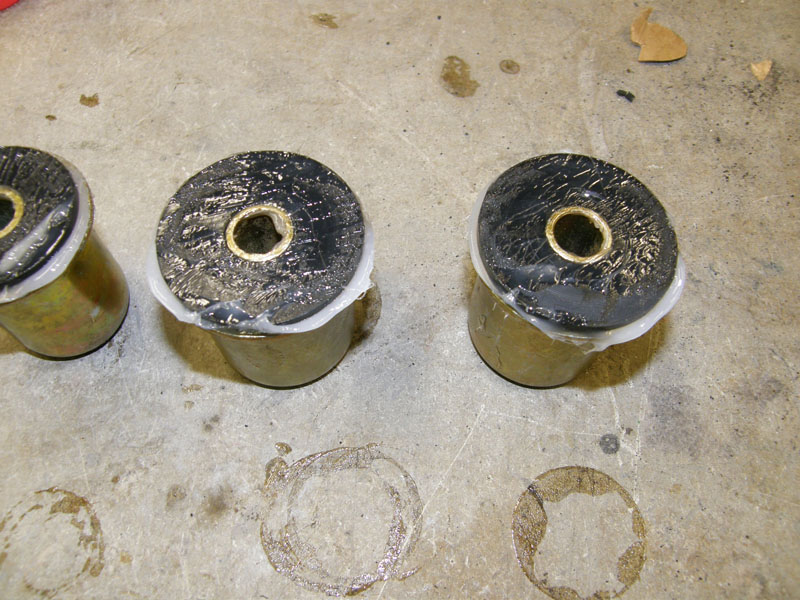

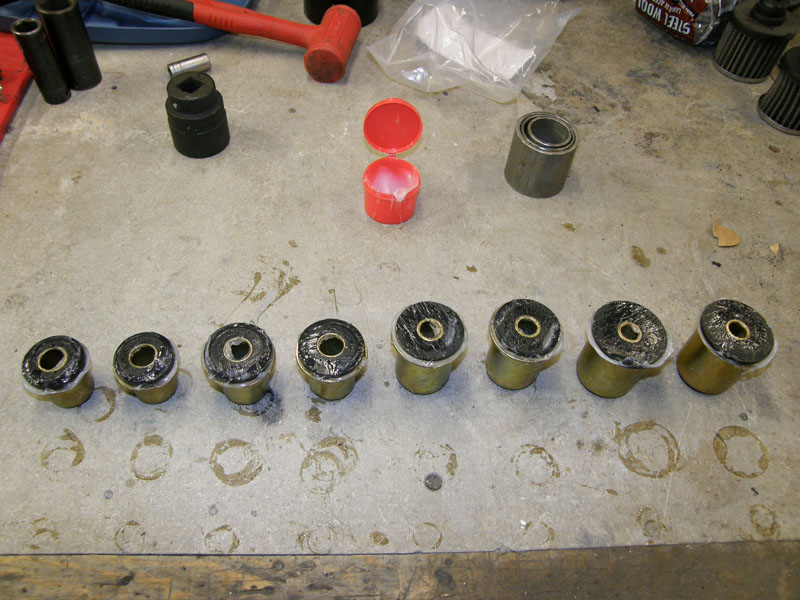

 Polyurethane Bushings P1250014   Here they have been greased and reassembled. Now they have to be cleaned up. The only thing I have found that cuts this grease is thinner.
 Polyurethane Bushings P1250015  Polyurethane Bushings P1250017

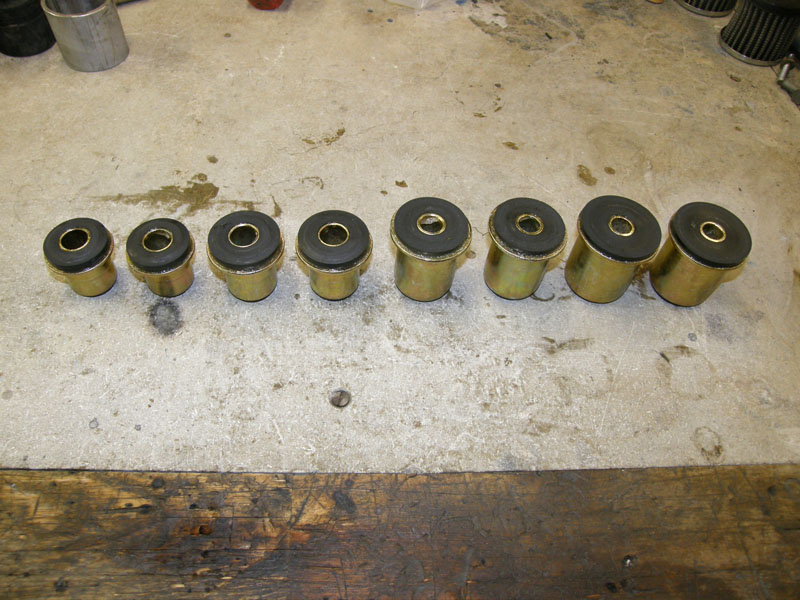

Polyurethane Bushings P1250018  All cleaned up and ready to be installed

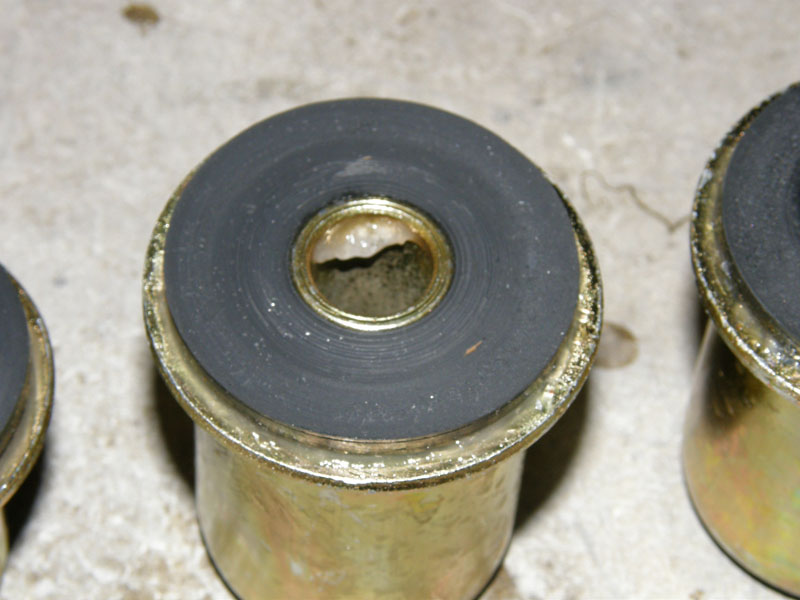

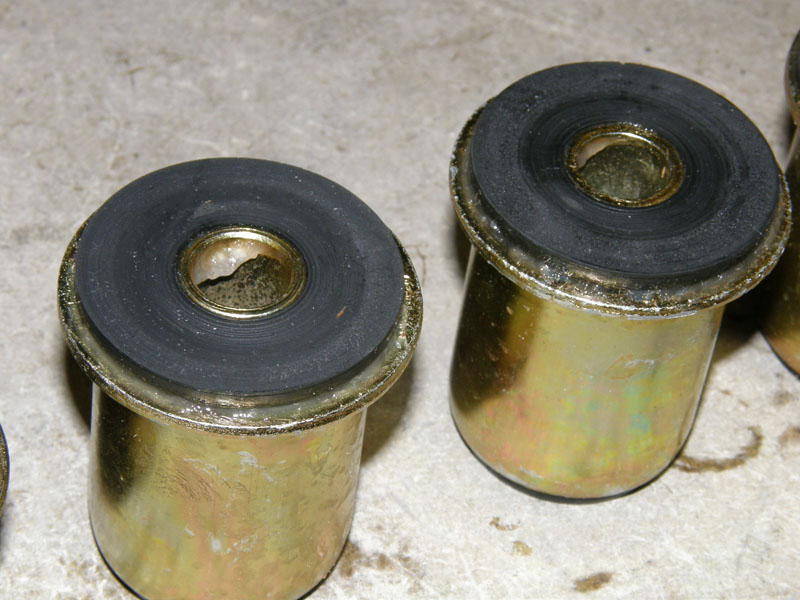

 Polyurethane Bushings P1250019  Polyurethane Bushings P1250020
