1949 Chevrolet Gasser Tranny Mount, Front Drive Shaft Loop, Wheel Wells

Click picture for larger image

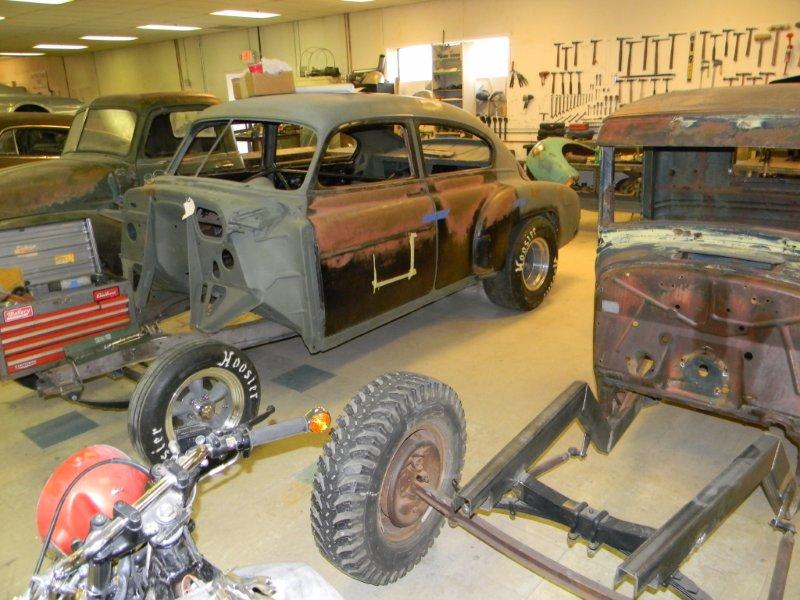

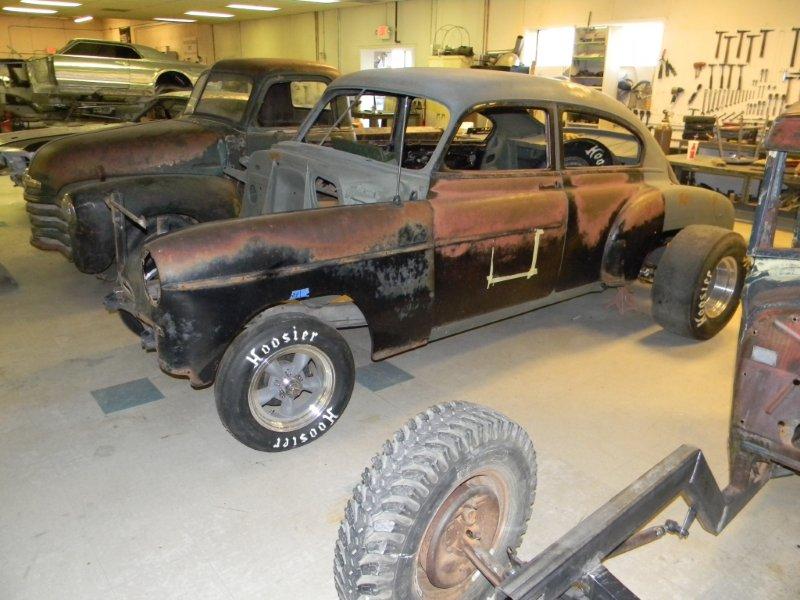

Arthur Lever’s project car for class work at The Hot Rod Institute in Rapid City, South Dakota.  He wrote:

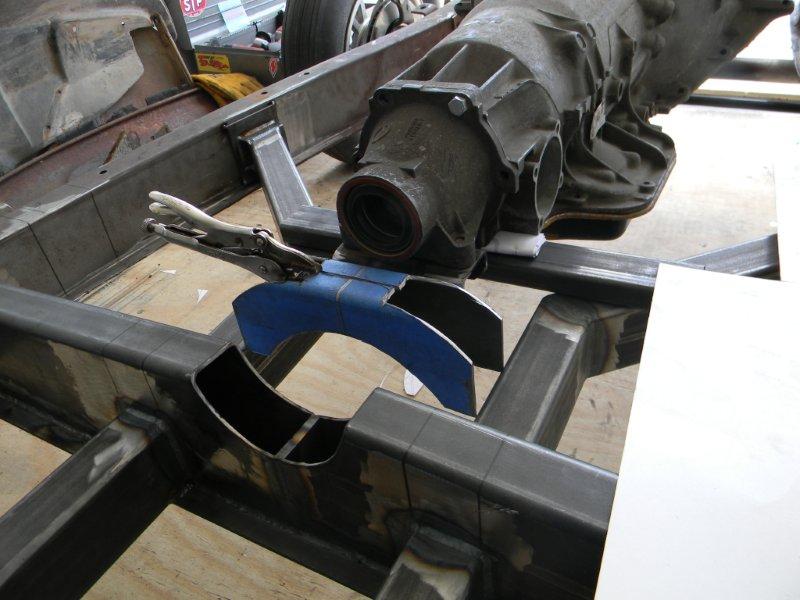

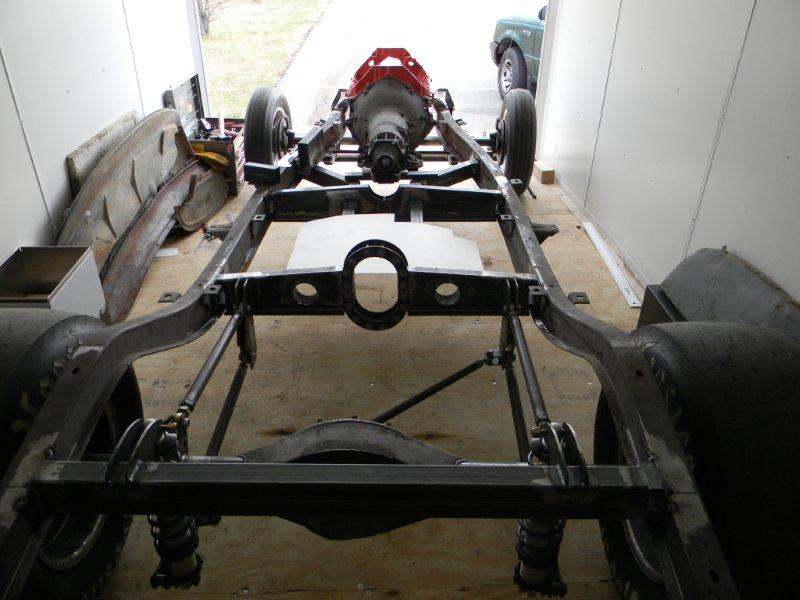

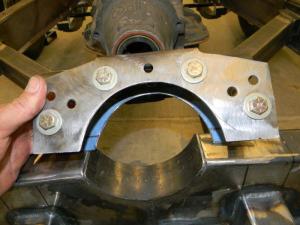

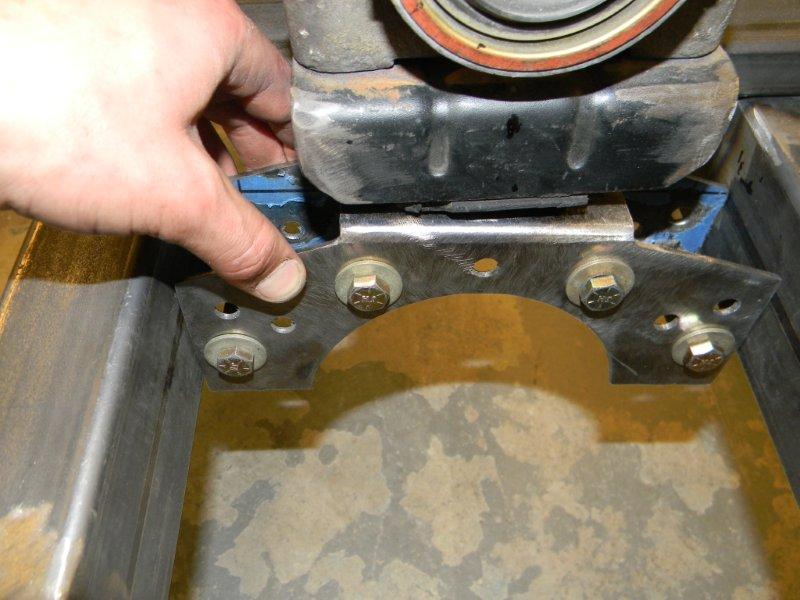

I’m working on several different tasks so I will break it up by task, First up is the front drive shaft hoop and transmission mount

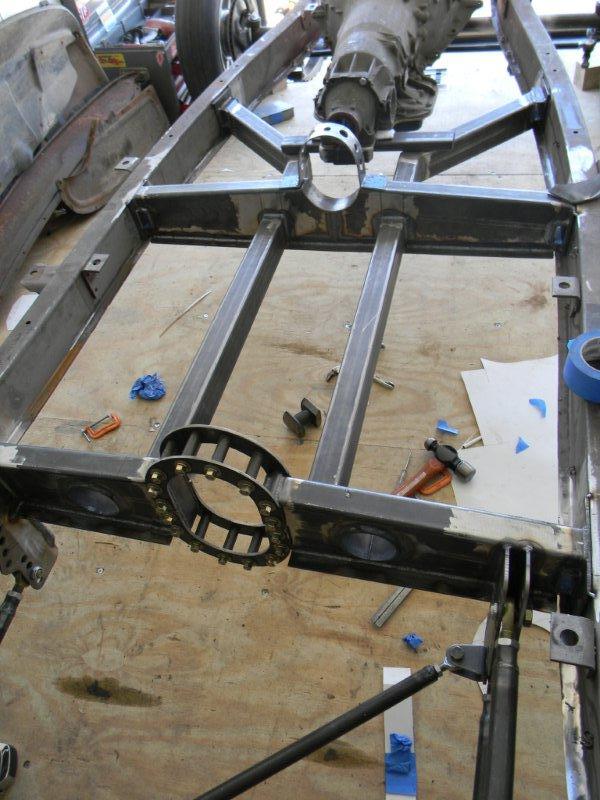

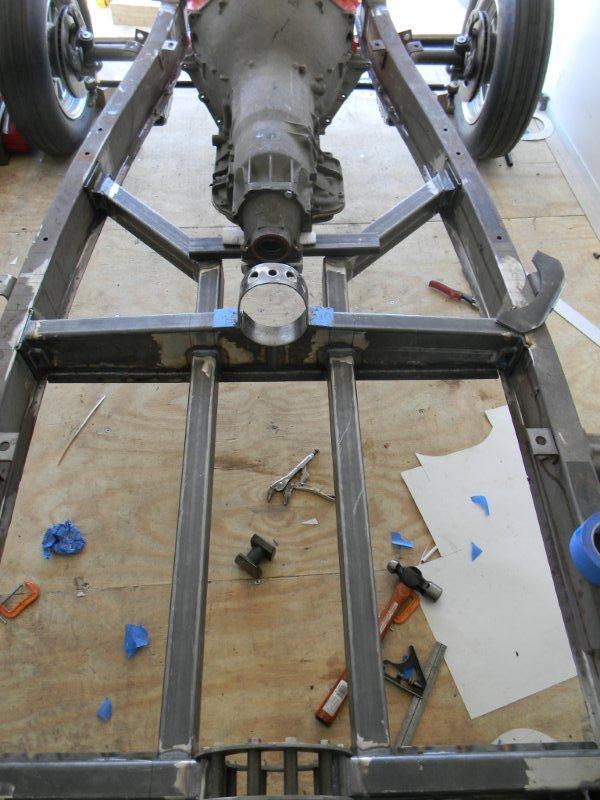

I know this is to be a race car, but I just cannot help myself in that I want it to look good also. I’m tiring top keep the “same” look to the front sub frame as I have developed on the rear. Next is the front drive shaft loop.

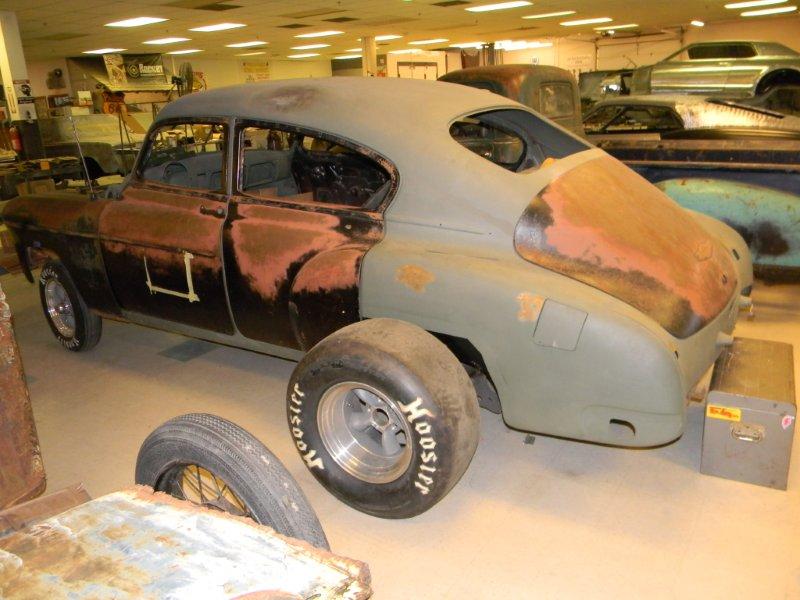

Now this is truly a design maker or breaker. Rear wheel wells. A true old school gasser would have round wheel wells with the tires sticking out of them. I wanted to try and copy the same shape as the front wheel well as I just do not like the round wheel well. We did not back half the frame and hind sight says that may have been a mistake, but this is my first gasser and I wanted something to show for the work that I have done here at the Hot Rod Institute. So with the size tires and wheels I have they are going to stick outside the wheel well, but I will try and give the illusion that they are stock wheel wells.

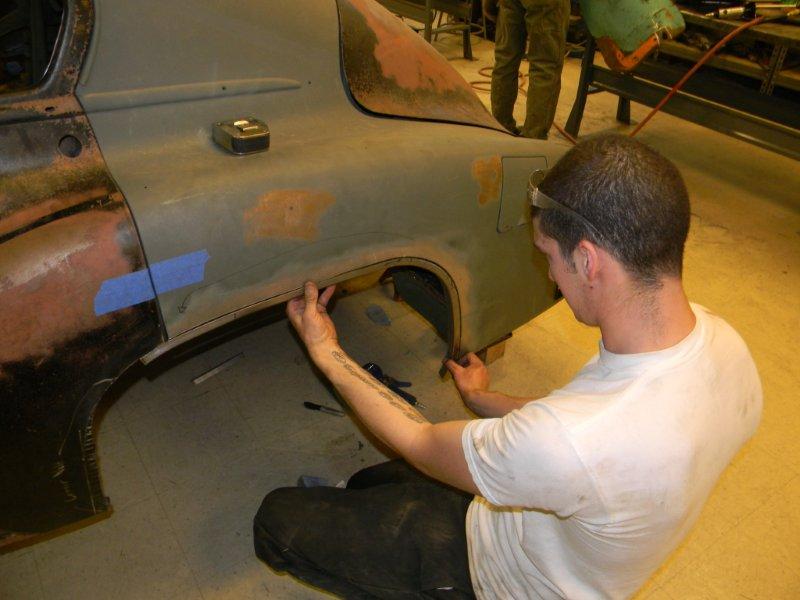

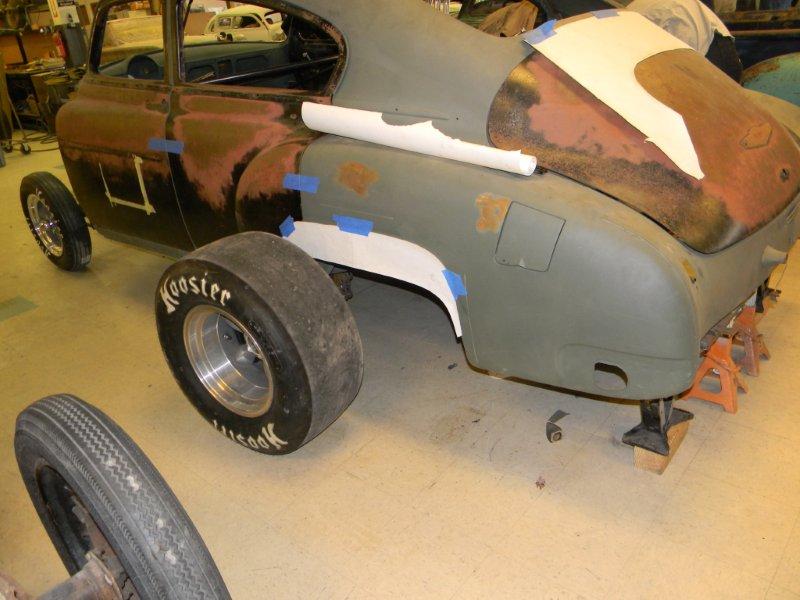

  So I made a template to follow the shape of the front wheel well.  It sort of looks like only the rear wheel opening will be higher.

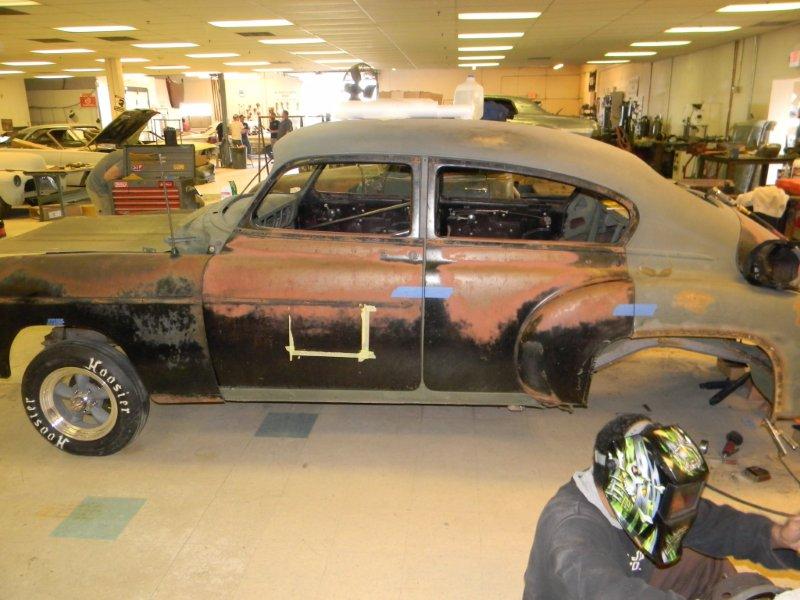

        I took the plunge and cut it out.

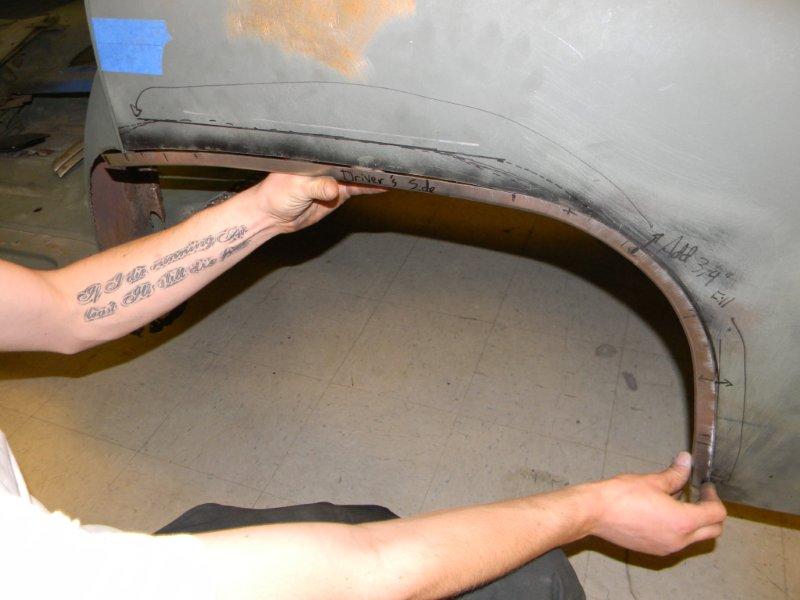

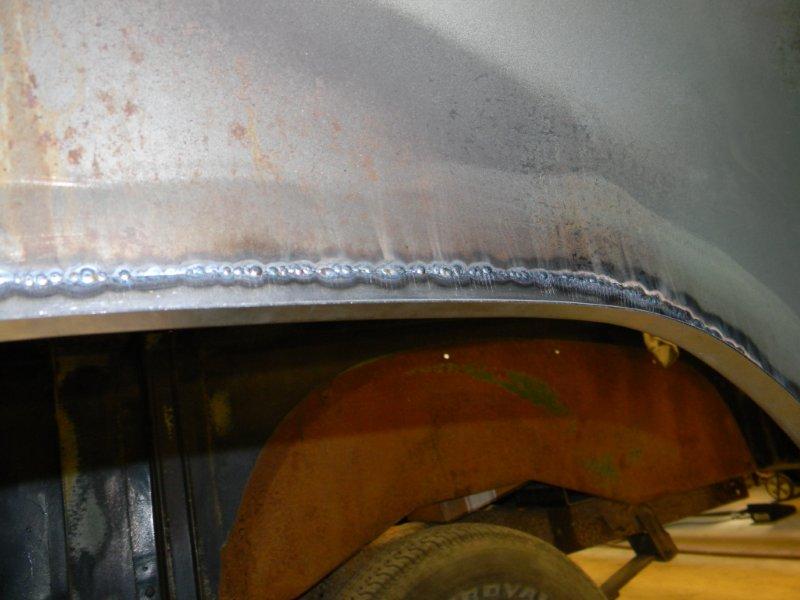

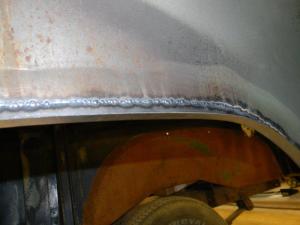

Now I need to build a lip so that it will have that stock appearance
