1970 SS El Camino – Exhaust Installation

Click picture to see larger image
(Pleases wait while loading … large page)

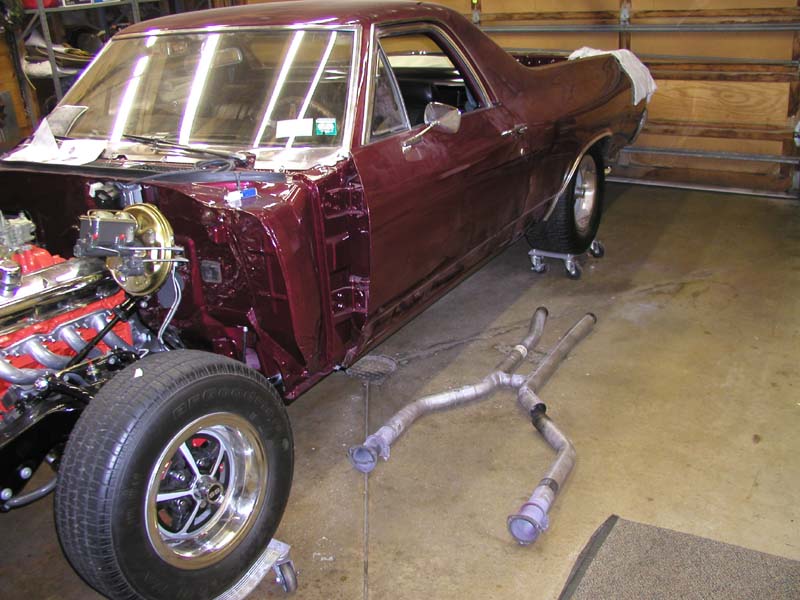

Exhaust 000 This will be the second time this exhaust has been installed on the car. The first time I must have subconsciously have known that some time in the future it was going to come off again as I clamped it together rather then welding it together. Al though it did fight us we did get it apart.

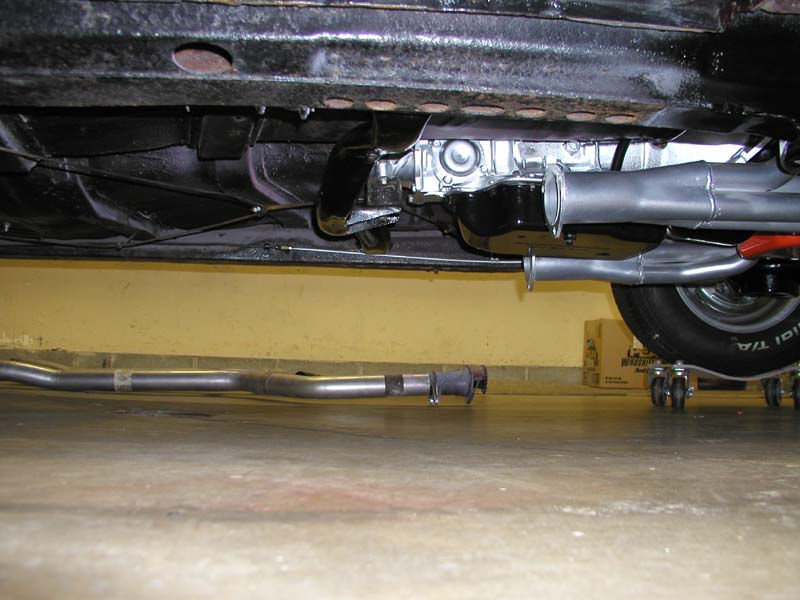

 Exhaust 0002 Headers but no exhaust pipes.

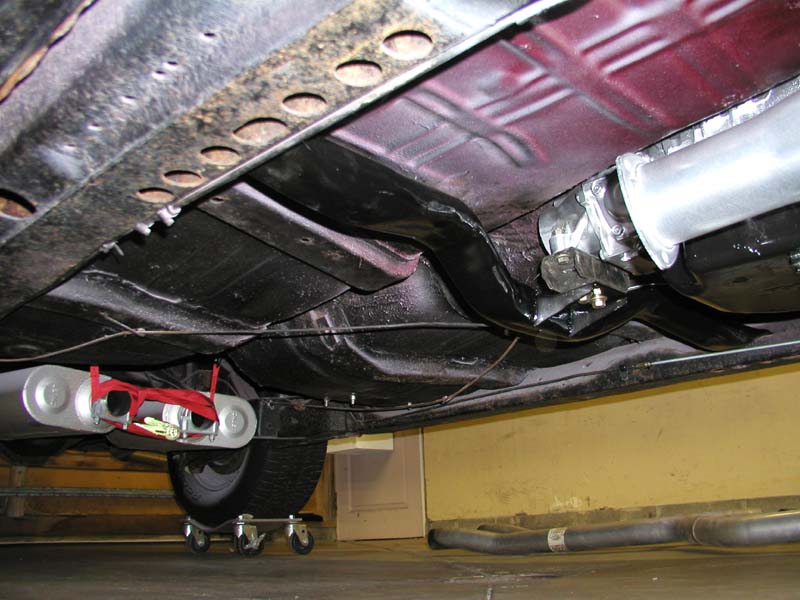

Exhaust 0003 We have to connect the headers to the mufflers.

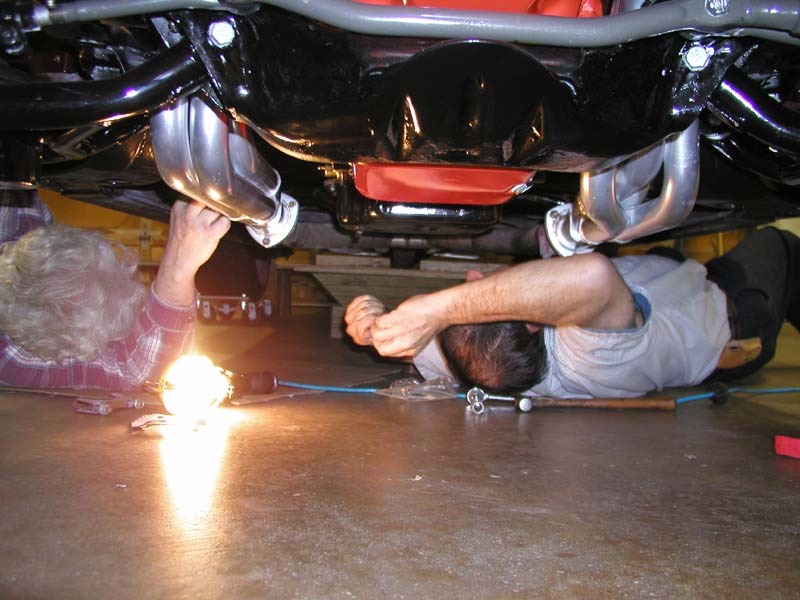

Exhaust 0004 Sure wish I had a lift. Would make life a lot easier. Think if I asked for one for Christmas I might get one?
 Exhaust 0005 Bill, you are not an elephant. It’s a good think there was no sound attached to this photo you would be listening to some horrendous noises right now.

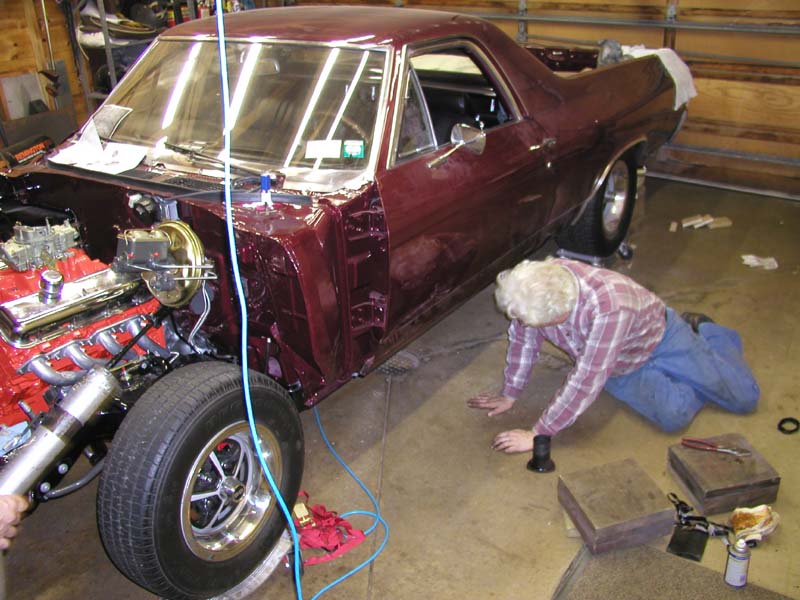

Exhaust 0006 You mean I have to crawl under this car again. Well it is a good way to clean the garage floor. All I have to do later is to wash the dirt out in my wife’s washing machine.

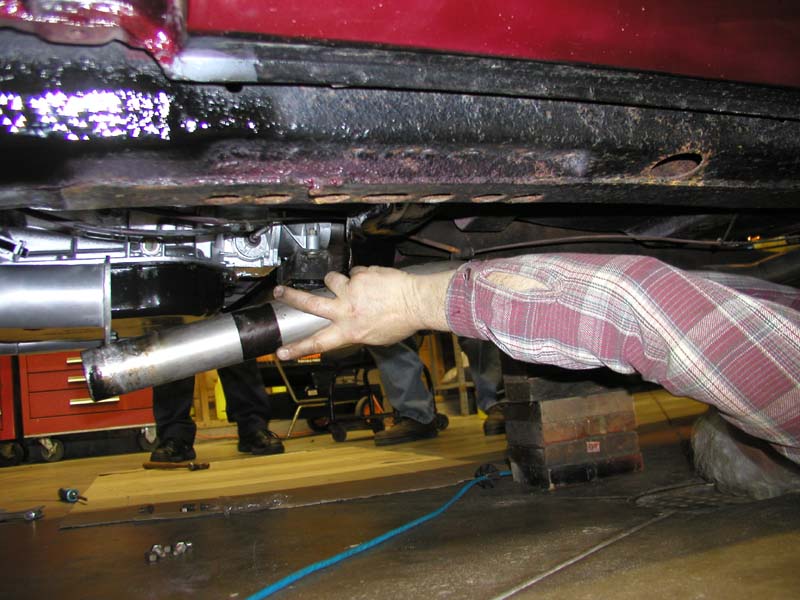

Exhaust 0007 It is too long.
 Exhaust 0008 The solution, get your son to cut it off.

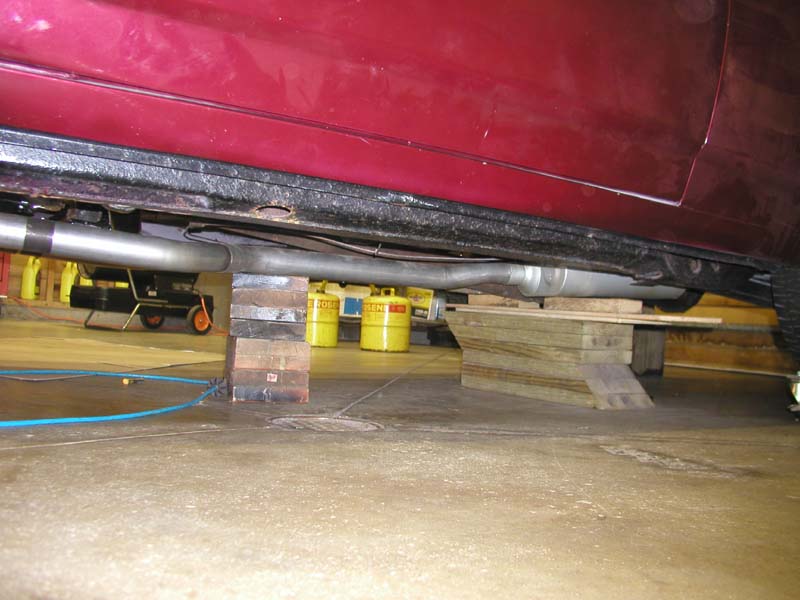

Exhaust 0009 Getting close, I want it up closer to the car bottom.
Exhaust 0011 This exhaust system is not coming off again.
Exhaust 0013 I think I have some state workers here.

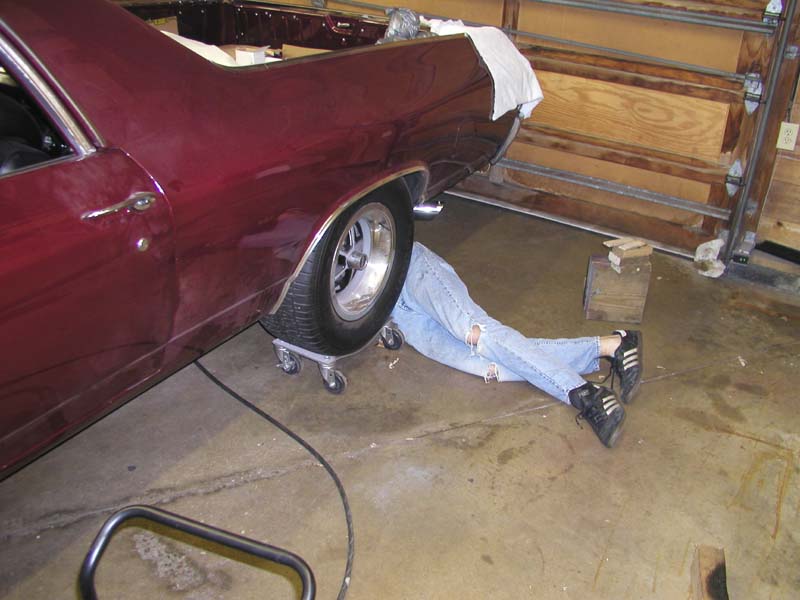

Exhaust 0014 Can not be state workers, the ratio of people working to people supervising is not correct.

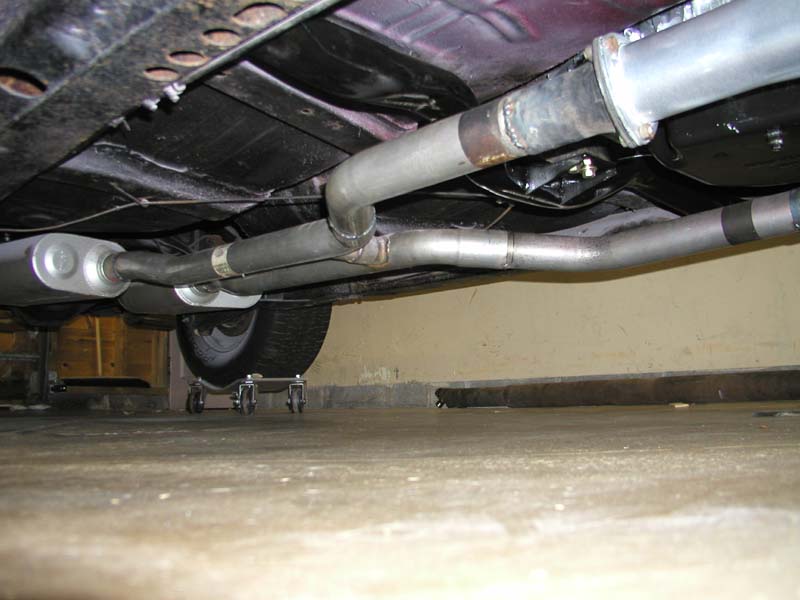

Exhaust 0014b Headers and mufflers connected. The pipes are nice and level. Close to the floor boards, but not close enough to rattle against them.
 Exhaust 0015 Headers and mufflers connected. The pipes are nice and level. Close to the floor boards, but not close enough to rattle against them.

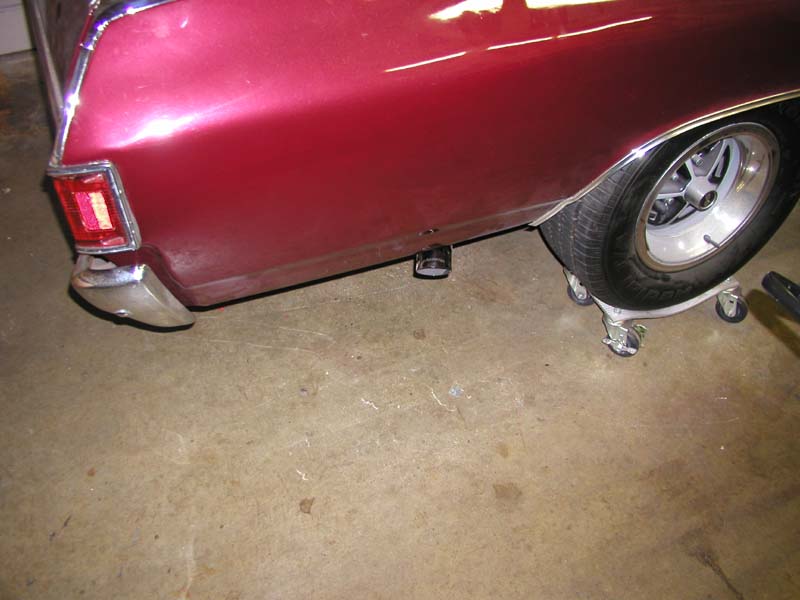

Exhaust 0016 Tips even on both sides. When it stops snowing outside I will put the door up and take a picture from the rear.
