1984 Jeep CJ-7 Progress 2012 01 26

        Click Picture or Text for more pictures / details

I am putting two weeks of updates together here.   Last week and this week.

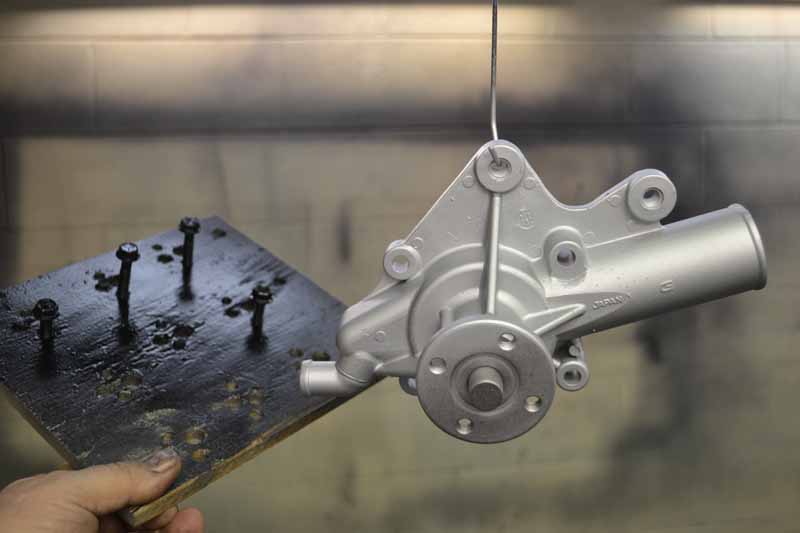

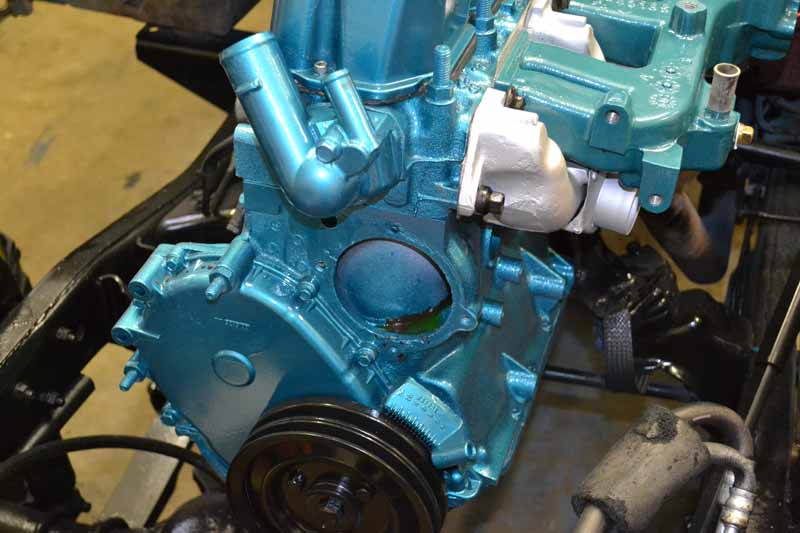

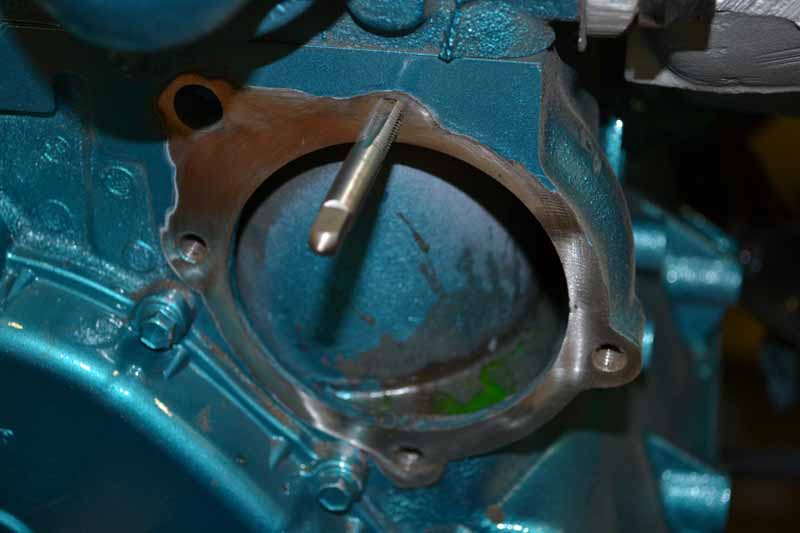

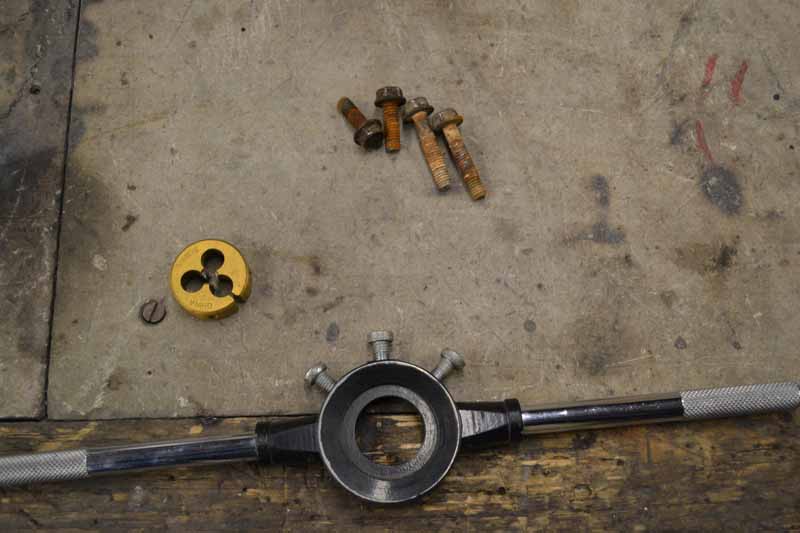

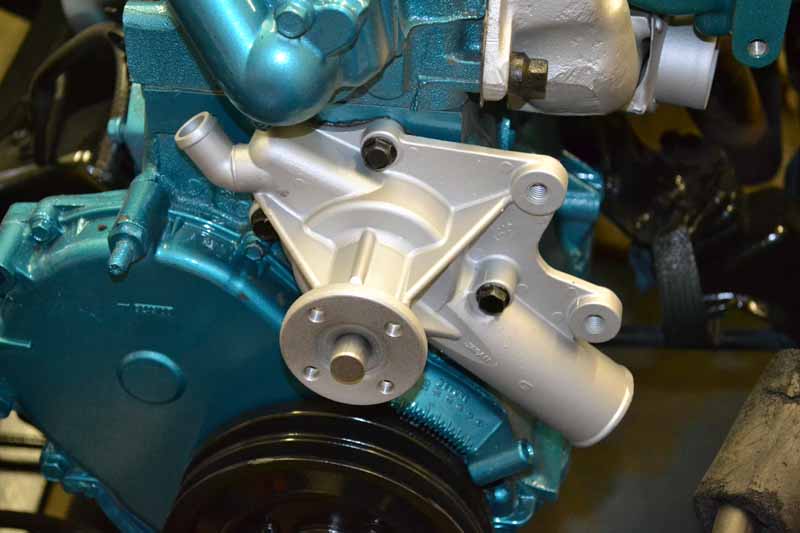

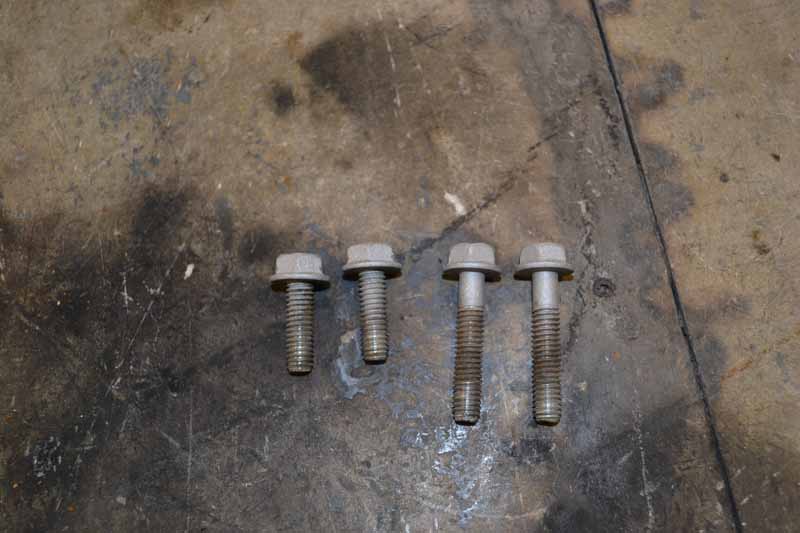

Installed the new water pump.  In the process, I cleaned, ran a die through the threads and painted the bolts.  I painted the water pump the same color as the exhaust manifold.
DSC_0001_small                                      DSC_0002_small1
DSC_0003_small                                      DSC_0004_small
DSC_0006_small                                      DSC_0007_small

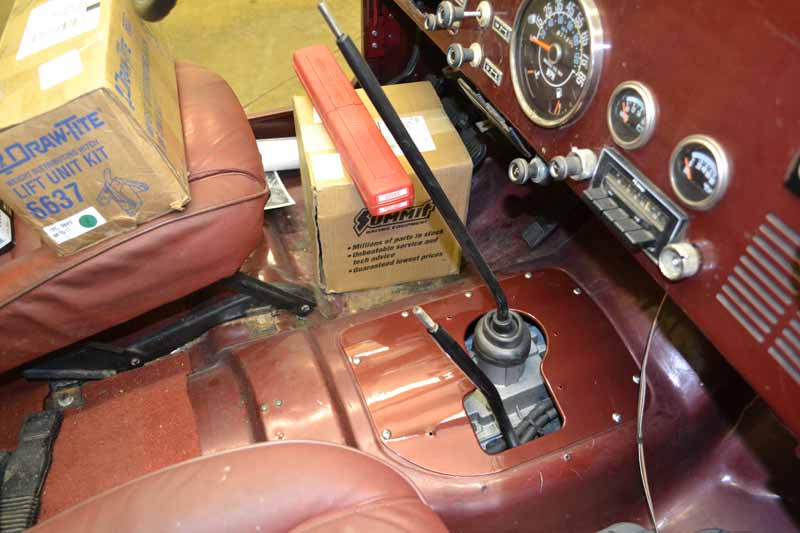

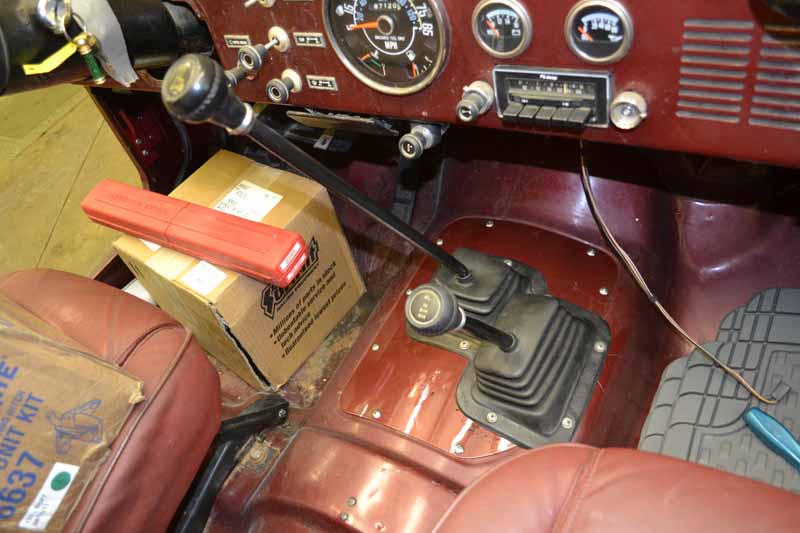

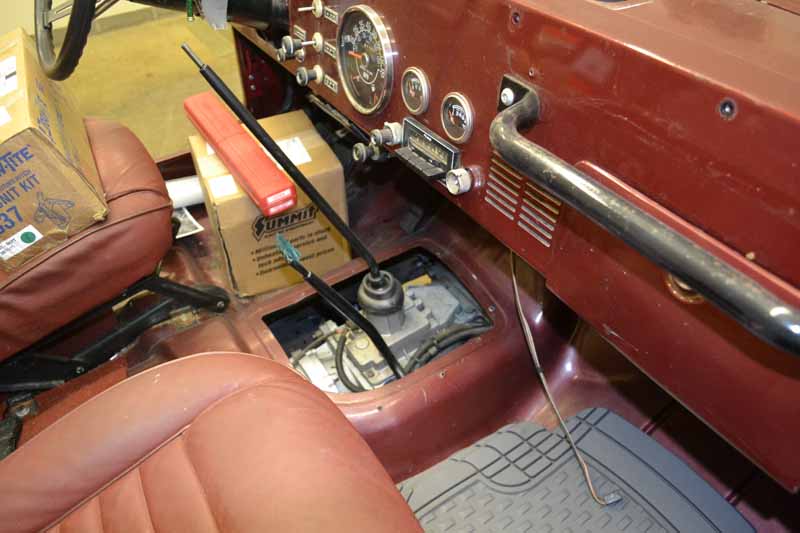

DSC_0003_small1   After Powder Coating the panel that covers the transmission with the new NIC powder that I think is a nice mathc to the color of the Jeep, we installed it and the shifter boots and the shifter knobs.
DSC_0004_small1                                      DSC_0005_small

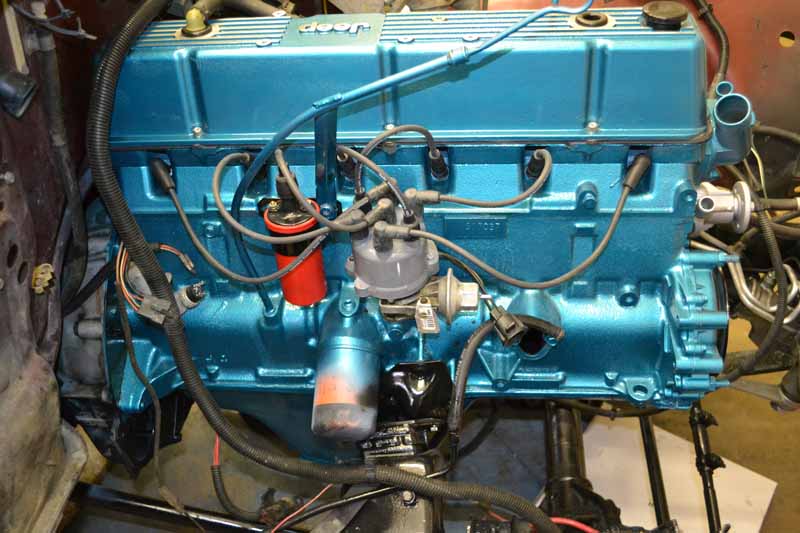

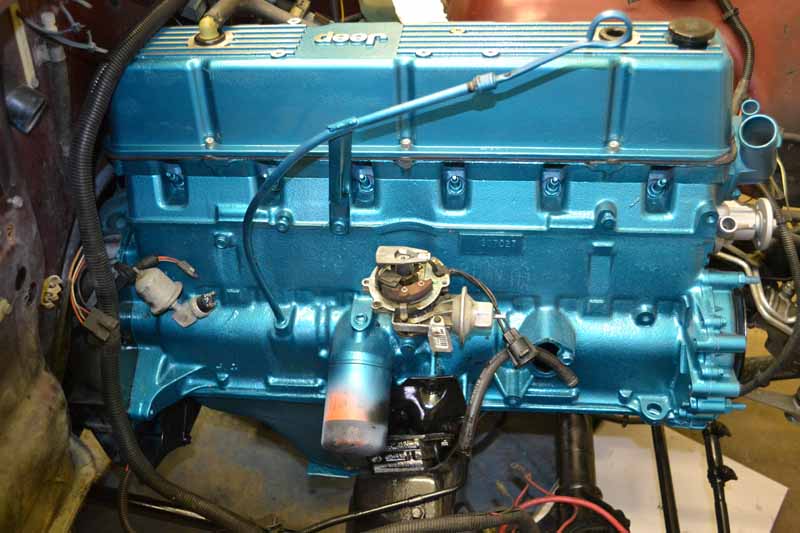

Pulled the old spark plugs, number one was nice and clean and the rest were all carbon fouled.  Put some new plug wires on.  I will play with them a little to make them fit better (shorten them up).  Removed the MSD stickers from the coil clamp and coil.
DSC_0006_small1                                      DSC_0007_small1

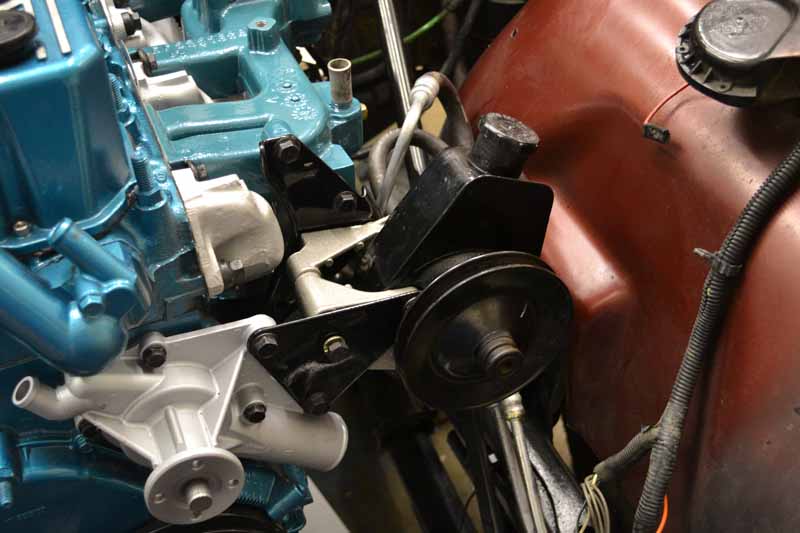

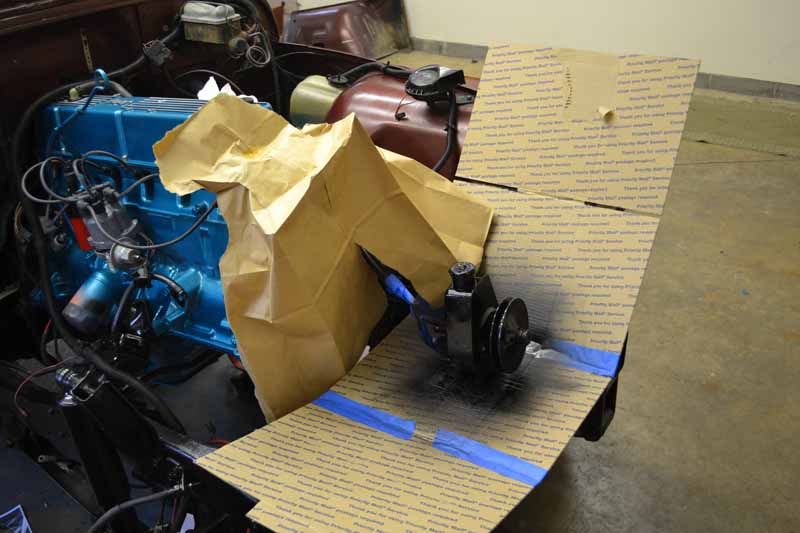

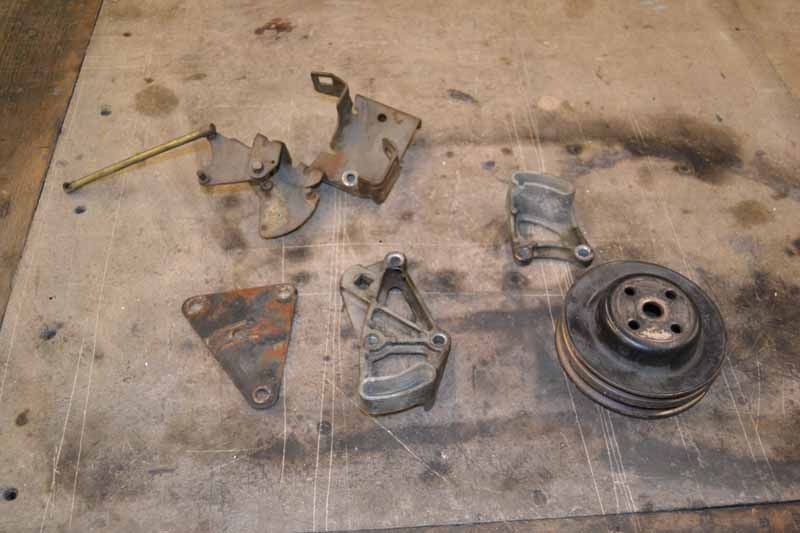

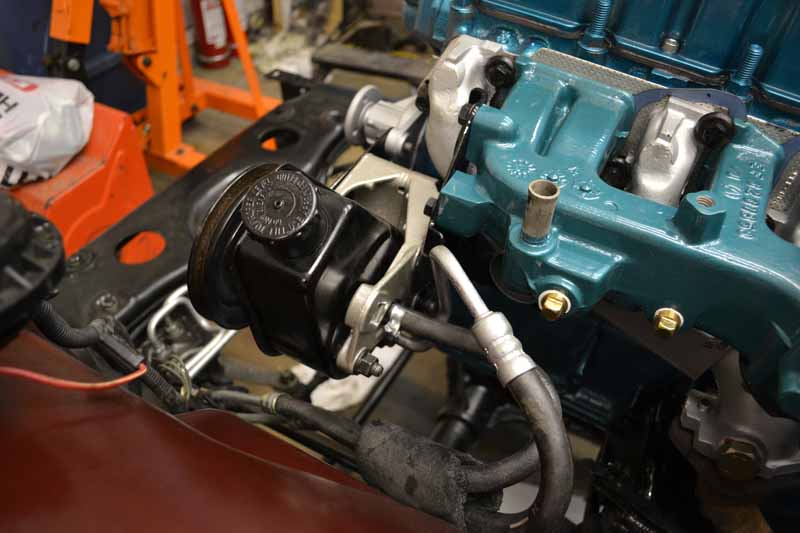

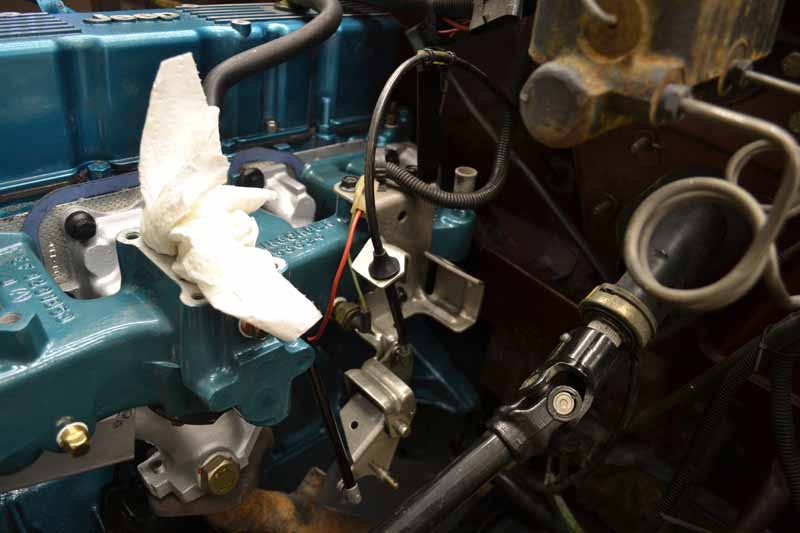

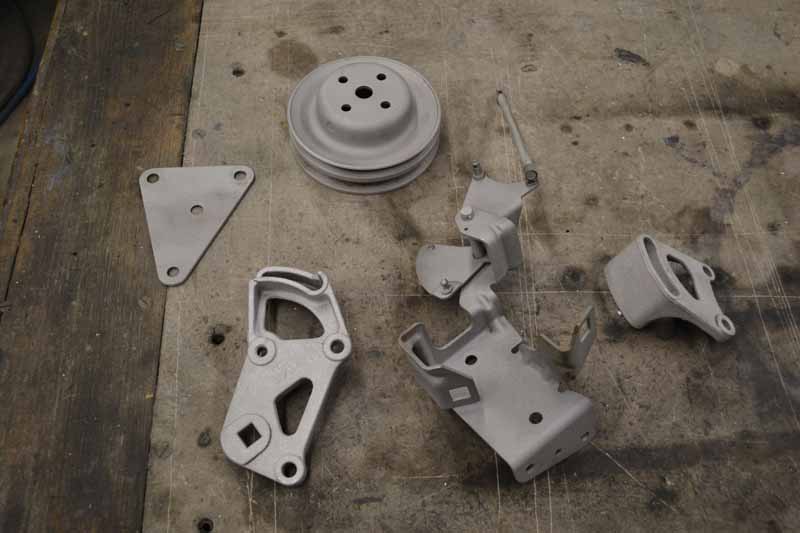

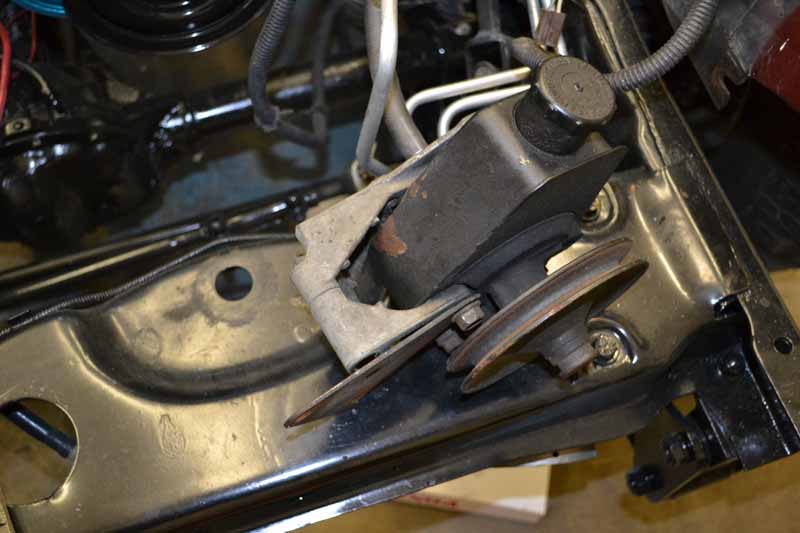

DSC_0003_small   We spent a little more time in the shop today.  Cleaned up and powder coated the Power Steering brackets and the throttle cable linkage brackets.  Painted up the bolts and mounted the pump and throttle cable linkage onto the Jeep.
DSC_0008_small                                      DSC_0005_small1
DSC_0006_small                                      DSC_0009_small
DSC_0021_small                                      DSC_0020_small

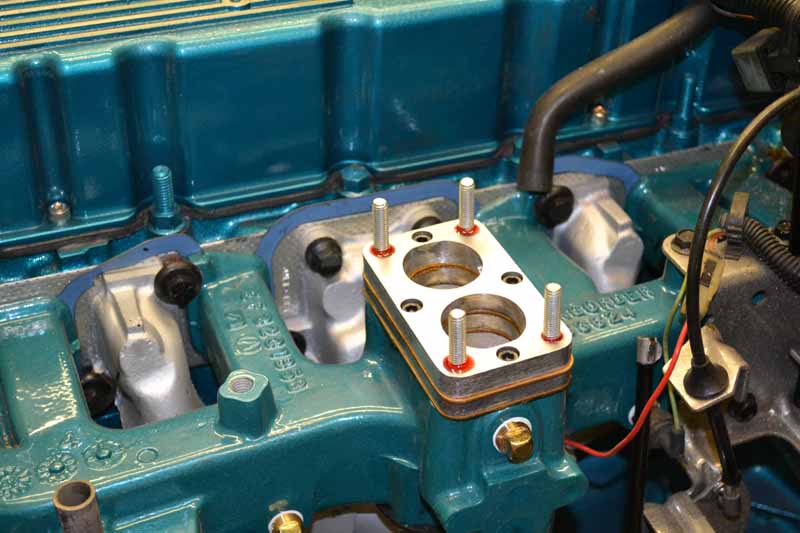

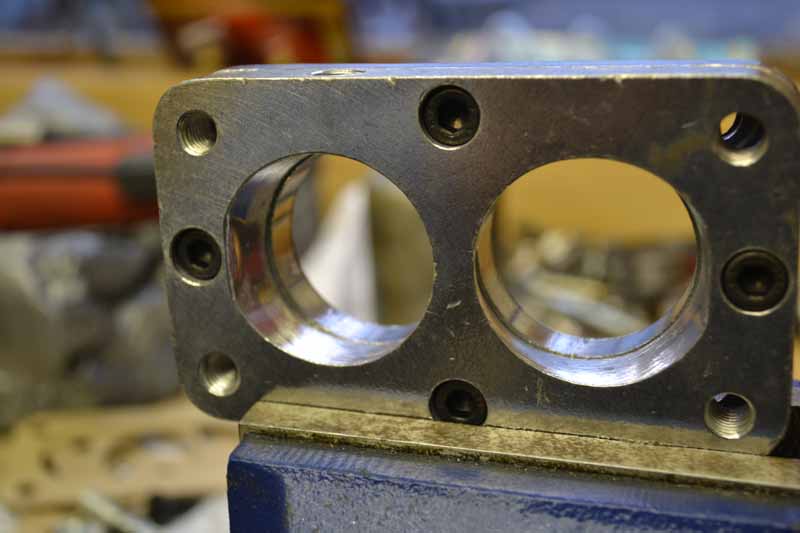

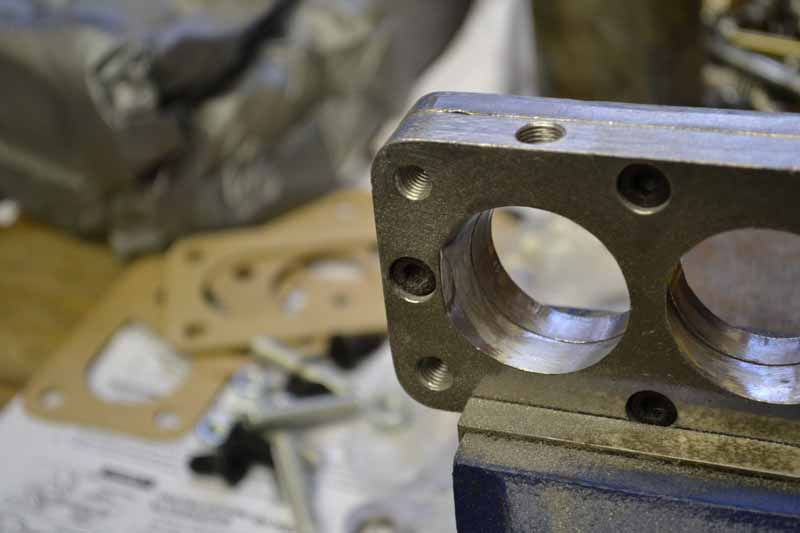

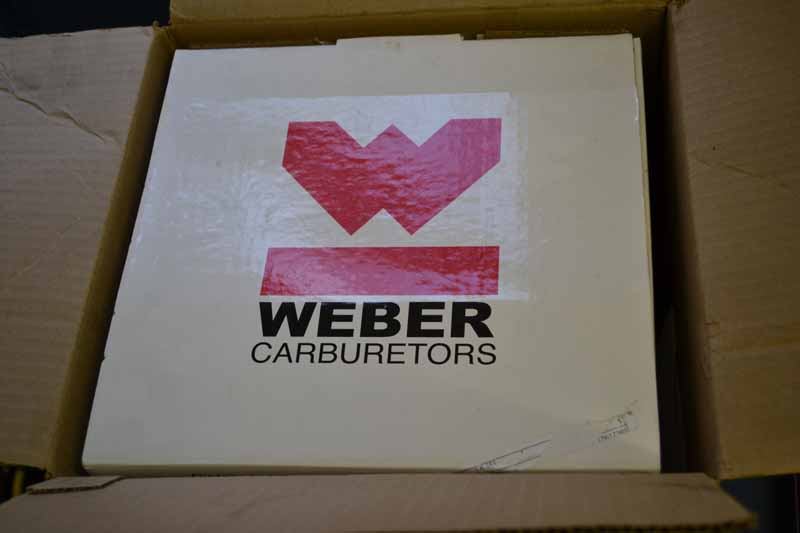

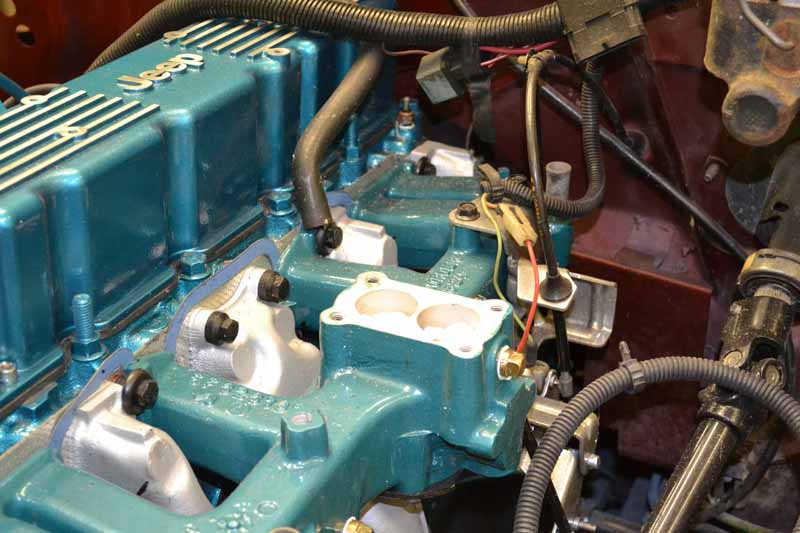

Started on the Weber Carburetor install.  The adapter plates did not match up.  Took the time to grind them so that they did.  I am currently letting the locktite set up on the carburetor studs.  I did clean up the excess locktite on the adapter plate.
DSC_0019_small                                      DSC_0113_small
DSC_0114_small                                      DSC_0117_small
DSC_0118_small                                      DSC_0119_small

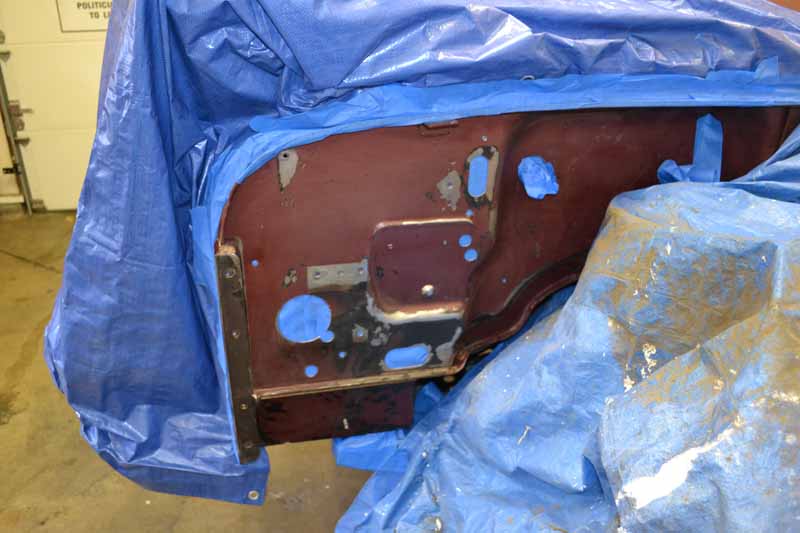

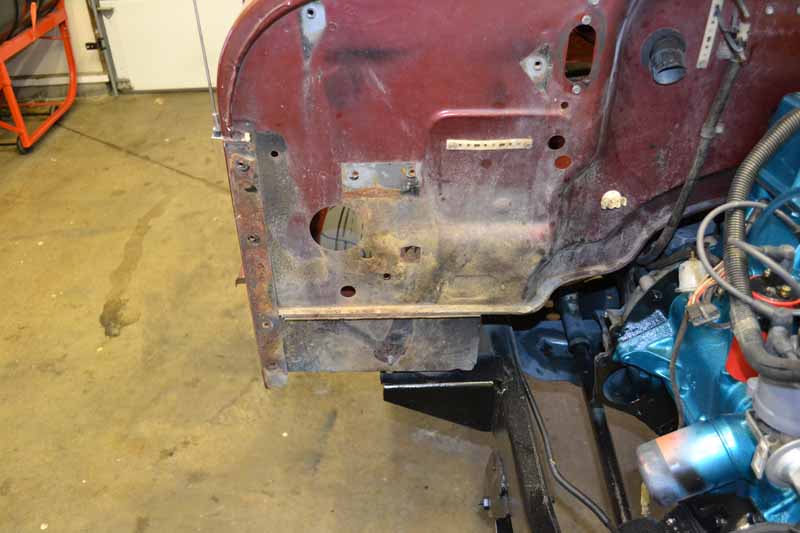

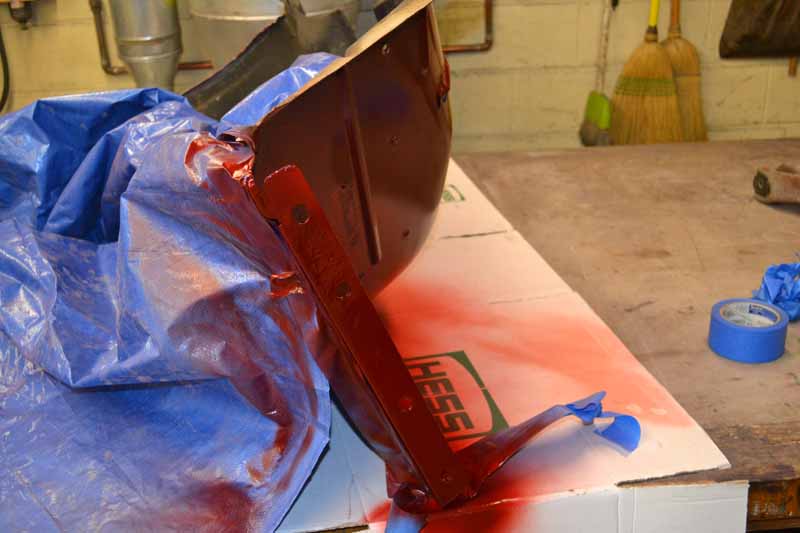

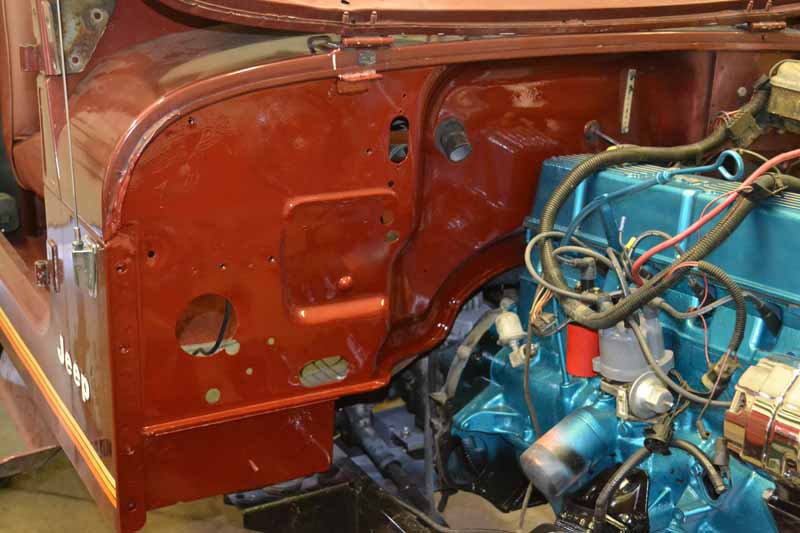

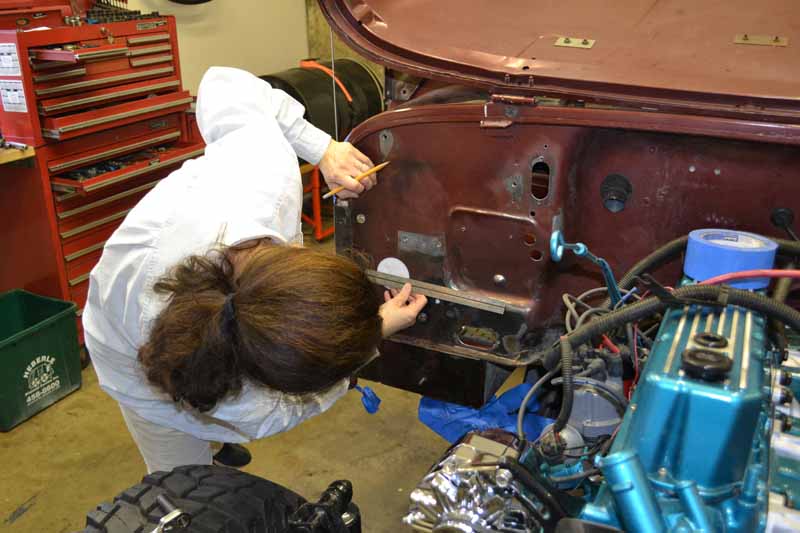

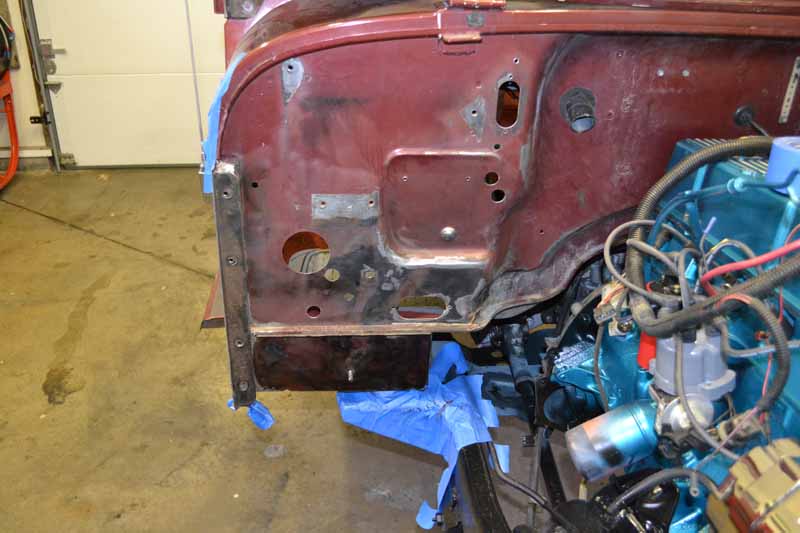

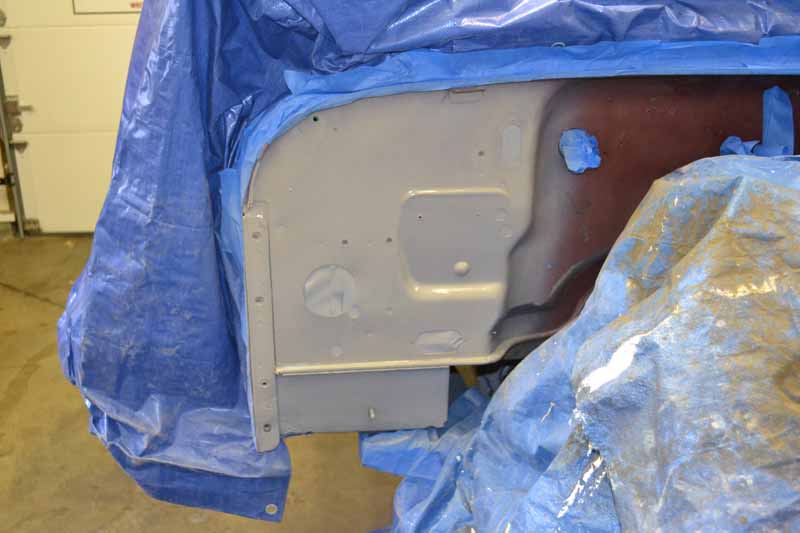

The surfaces that meet each other between the firewall and the right front fender were rusted.  So…. I took a wire brush to the surfaces and cleaned them up.  Although this paint was supposed to be a color match to the paint code, it is not a good match.  You would think that it would be as this is under the hood and out of the sun.  I also prepared the firewall the “Heater Blower Motor upgrade” by enlarging the blower motor hole to 3 1/2 inches.  Got my wife involved to find the center of the hole.
DSC_0095_small                                       DSC_0099_small
DSC_0100_small                                       DSC_0103_small
DSC_0104_small                                       DSC_0105_small
DSC_0107_small                                       DSC_0108_small
DSC_0112_small                                       DSC_0120_small
DSC_0098_small  This was possible due to this car nut who showed up to help.
